EB 240 - Shindaiwa Handheld Blower Fuel Tank Parts Diagram

Handheld Blower

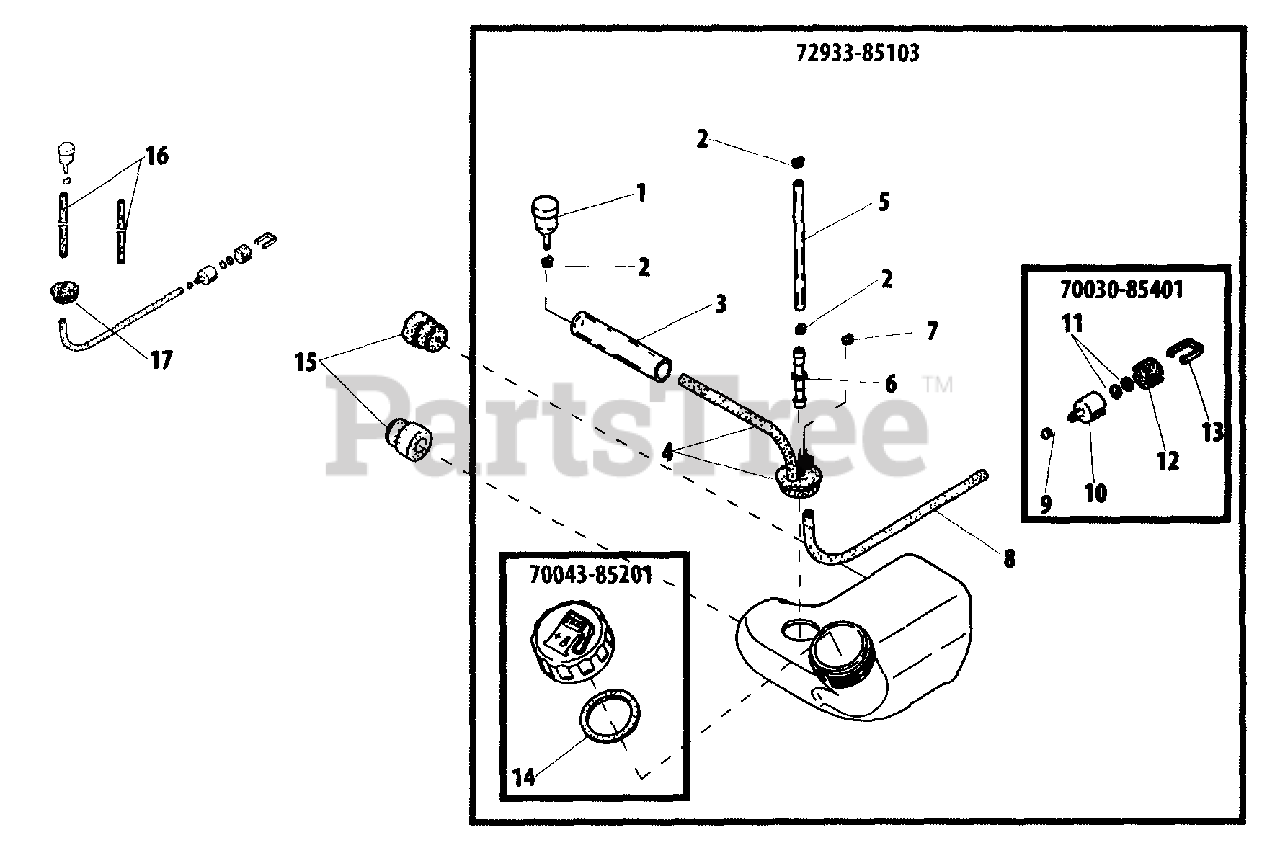

Fuel Tank Parts Diagram

  • Title

Echo 72933-85103

FUEL TANK ASSY
(Superseded to 72933-85104)

Note: Includes ITEMS 1-14

$

$

Not available

1

Echo 22035-85522

CAP, BREATHER

$

$

Currently unavailable

2

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

3

Echo 72933-85530

VENT PIPE ASSY
(Superseded to V471002330)

$0.99

$

In Stock, only 1 left!

0

4

Echo V470000890

PIPE ASSY

$5.99

$

In Stock, only 2 left!

0

5

Echo 72933-85610

PIPE - FUEL
(Superseded to 72933-85611)

$1.99

$

In Stock, Qty 11

0

6

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, only 4 left!

0

7

Echo 20021-85540

CLIP
(Superseded to V490000580)

$0.99

$

In Stock, Qty 6

0

8

Echo 20077-85310

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

9

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

Echo 70030-85401

FUEL FILTER ASSY
(Superseded to A369000090)

$6.49

$

In Stock, only 4 left!

0

10

Echo 70030-85411

WEIGHT, FUEL FILTER
(Superseded to C212000000)

$

$

Not available

11

Echo 70030-85431

STRAINER - SMALL
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

12

Echo 70030-85420

ELEMENT, FILTER - LARGE
(Superseded to A371000020)

$2.99

$

In Stock, only 3 left!

0

13

Echo 70030-85440

CLIP

$1.99

$

In Stock, only 2 left!

0

Echo 70030-43201

CAP ASSY

$

$

Currently unavailable

14

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 20+

0

15

Echo 72933-86110

CUSHION
(Superseded to V420002130)

$1.49

$

Usually ships in 2-4 days

0

16

Echo 20035-83310

TUBE
(Superseded to 20089-83310)

$1.99

$

In Stock, only 4 left!

0

17

Echo 20018-85350

GROMMET
(Superseded to Discontinued)

$

$

Not available

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 12

0
