EB 240 - Shindaiwa Handheld Blower Cylinder, Muffler Parts Diagram

Handheld Blower

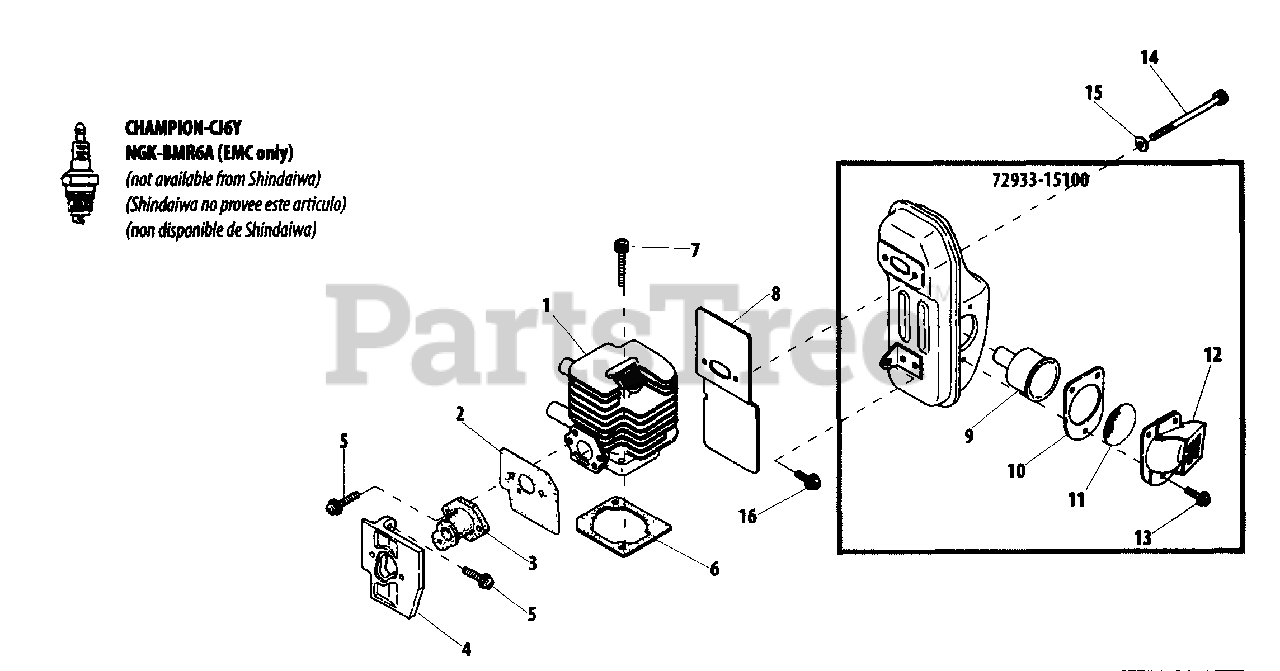

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 72934-12111

CYLINDER
(Superseded to A130001061)

$65.99

$

In Stock, only 1 left!

0

2

Echo 72933-12220

GASKET
(Superseded to V103000560)

$1.99

$

In Stock, only 3 left!

0

3

Echo 72933-12211

BOOT
(Superseded to A202000100)

$22.99

$

Usually ships in 2-4 days

0

4

Echo 72933-12310

BRACKET
(Superseded to A200000390)

$5.49

$

Usually ships in 2-4 days

0

5

Echo 11207-05160

SCREW - 5X16
(Superseded to 9157705016)

$0.99

$

In Stock, Qty 7

0

6

Echo 20035-12120

GASKET, CYLINDER
(Superseded to V100000390)

$0.99

$

In Stock, only 4 left!

0

7

Echo 01020-05200

SCREW - 5X20
(Superseded to 90010505020)

$1.49

$

In Stock, Qty 20+

0

8

Echo 72933-15210

GASKET, EXHAUST
(Superseded to 68234-15210)

$6.49

$

Usually ships in 2-4 days

0

Echo 72933-15100

MUFFLER ASSY
(Superseded to A030000030)

Note: Includes ITEMS 9-13

$63.99

$

Usually ships in 2-4 days

0

9

Echo 72933-15120

CHAMBER
(Superseded to A313001130)

$8.99

$

Usually ships in 2-4 days

0

10

Echo 72933-15131

GASKET
(Superseded to V104000980)

$2.49

$

Usually ships in 2-4 days

0

11

Echo 72933-15140

SCREEN, SPARK ARRESTOR
(Superseded to A310000120)

$2.49

$

Usually ships in 2-4 days

0

12

Echo 72933-15150

GUIDE, EXHAUST

$14.99

$

Usually ships in 2-4 days

0

13

Echo 11206-04100

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

14

Echo 01020-05550

SCREW - 5X55
(Superseded to 90010505055)

$1.49

$

In Stock, Qty 7

0

15

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 11207-05160

SCREW - 5X16
(Superseded to 9157705016)

$0.99

$

In Stock, Qty 7

0
