EB 240 - Shindaiwa Handheld Blower Carburetor (Non EPA/CARB) Parts Diagram

Handheld Blower

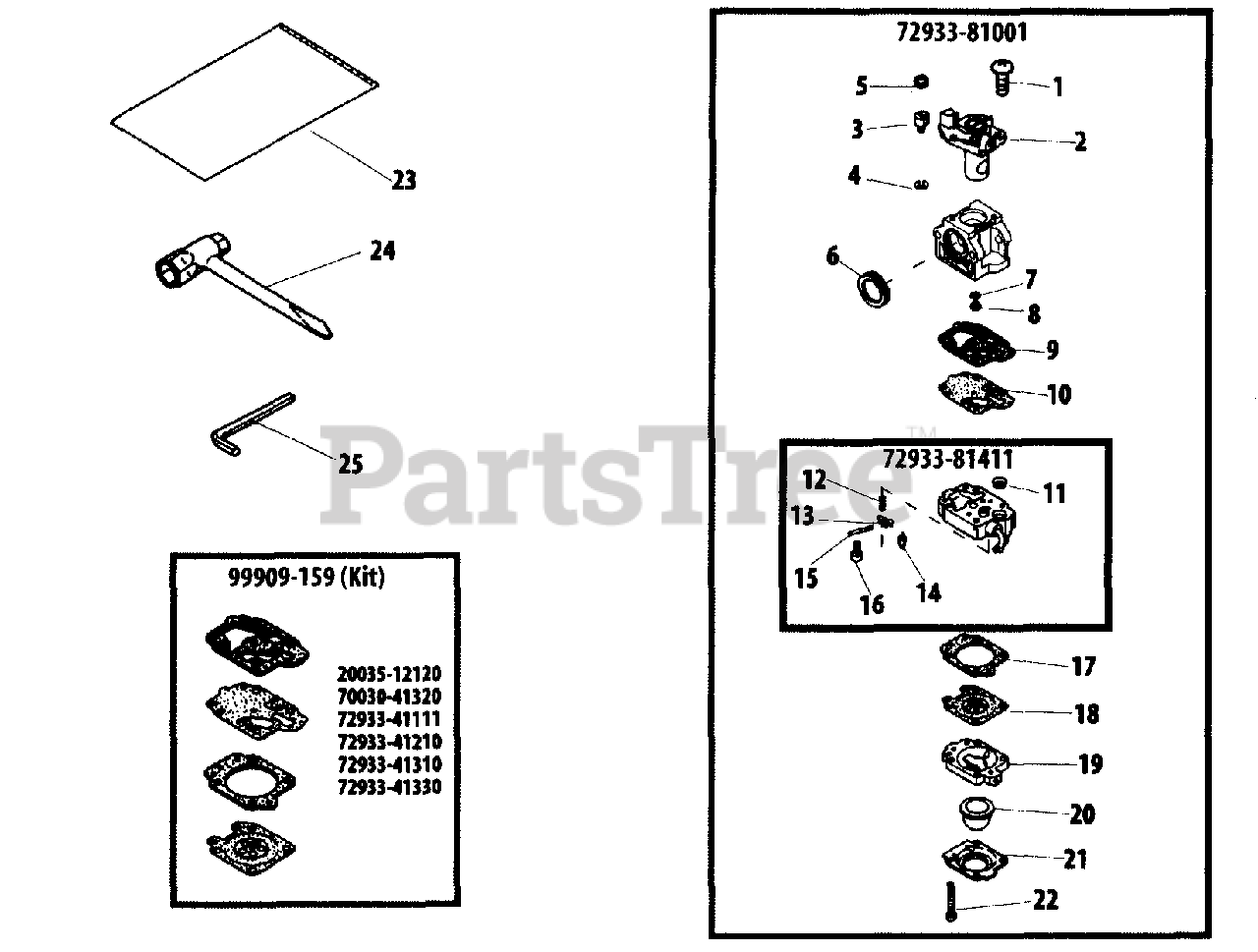

Carburetor (Non EPA/CARB) Parts Diagram

  • Title

Echo 72933-81001

CARBURETOR
(Superseded to A021001940)

$81.99

$

Usually ships in 2-4 days

0

1

Echo 70064-81290

SCREW
(Superseded to 12311444330)

Note: Includes ITEMS 1-22

$0.99

$

Usually ships in 2-4 days

0

2

Echo 72933-81180

THROTTLE VALVE ASSY
(Superseded to P003003680)

$27.99

$

Usually ships in 2-4 days

0

3

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

5

Echo 20000-85350

RING, RETAINING
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

6

Echo 72933-81250

SEAL
(Superseded to 12314312110)

$4.49

$

In Stock, only 3 left!

0

7

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

8

Echo 72933-81230

JET, MAIN - 43
(Superseded to 12318449830)

$2.49

$

Usually ships in 2-4 days

0

9

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

10

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

10

Echo 72933-81411

BASE, PURGE
(Superseded to P003003690)

Note: Includes ITEMS 11-16

$13.99

$

Usually ships in 2-4 days

0

11

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

12

Echo 72933-81270

SPRING, METERING LEVER
(Superseded to 12312205560)

$3.99

$

Usually ships in 2-4 days

0

13

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

14

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

15

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

16

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

18

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 6

0

19

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, only 1 left!

0

20

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

21

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

22

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

23

Echo 19639-01100

BAG, TOOL
(Superseded to X705000130)

$2.49

$

Usually ships in 2-4 days

0

24

Echo 22000-91181

T-WRENCH - 13X19mm
(Superseded to X602000150)

$4.49

$

Usually ships in 2-4 days

0

25

Echo 09026-04001

HEX KEY - 4mm
(Superseded to X605000100)

$1.99

$

In Stock, Qty 7

0

Echo 99909-159

DIAPHRAGM/GASKET KIT

$14.99

$

In Stock, only 2 left!

0
