EB 240 - Shindaiwa Handheld Blower Carburetor (EPA/CARB) Parts Diagram

Handheld Blower

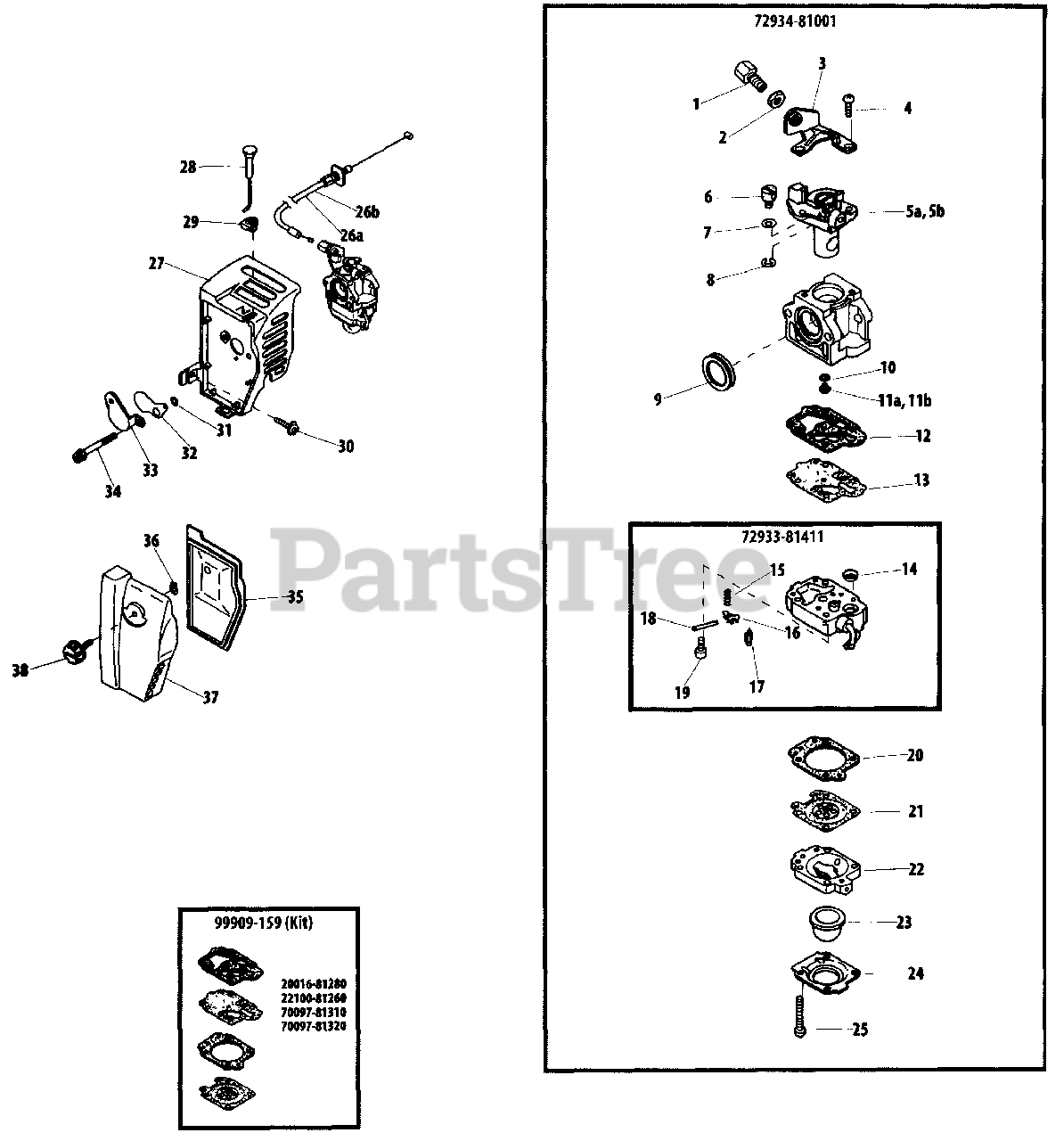

Carburetor (EPA/CARB) Parts Diagram

  • Title

Echo 72934-81001

CARBURETOR
(Superseded to A021001950)

Note: Includes ITEMS 1-25

$82.99

$

Usually ships in 2-4 days

0

1

Echo 20089-81110

NUT, CABLE ADJUST

$

$

Not available

2

Echo 20036-81120

NUT
(Superseded to 12315356430)

$1.49

$

In Stock, only 3 left!

0

3

Echo 20089-81130

BRACKET, CABLE
(Superseded to 12312854230)

$5.49

$

Usually ships in 2-4 days

0

4

Echo 70097-81290

SCREW
(Superseded to 12311440630)

$2.49

$

In Stock, only 3 left!

0

5A

Echo 99909-34739

THROTTLE VALVE ASSY

$23.99

$

Usually ships in 2-4 days

0

5B

Echo 99909-34712

THROTTLE VALVE ASSY
(Superseded to 72934-81181)

$

$

Not available

6

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

7

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

In Stock, only 1 left!

0

8

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

9

Echo 72933-81250

SEAL
(Superseded to 12314312110)

$4.49

$

In Stock, only 3 left!

0

10

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

11A

Echo 72934-81230

JET
(Superseded to 12318444330)

$3.49

$

In Stock, only 4 left!

0

11B

Echo 99909-34713

JET, MAIN - 37

$3.49

$

Usually ships in 2-4 days

0

12

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

13

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

Echo 72933-81411

BASE, PURGE
(Superseded to P003003690)

Note: Includes ITEMS 14-19

$13.99

$

Usually ships in 2-4 days

0

14

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 19

0

15

Echo 72933-81270

SPRING, METERING LEVER
(Superseded to 12312205560)

$3.99

$

Usually ships in 2-4 days

0

16

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

17

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

18

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

19

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

21

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 6

0

22

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, only 1 left!

0

23

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

24

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

25

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

26A

Echo 72934-83110

CABLE, THROTTLE
(Superseded to V430002510)

$7.99

$

Usually ships in 2-4 days

0

26B

Echo 72933-83110

CABLE, THROTTLE

$7.99

$

Usually ships in 2-4 days

0

27

Echo 72934-82111

CASE, AIR FILTER
(Superseded to 72934-82112)

$8.99

$

In Stock, only 1 left!

0

27

Echo 72933-82111

CASE, AIR CLEANER (NON EPA)
(Superseded to 72934-82111)

$8.99

$

In Stock, only 1 left!

0

28

Echo 72933-82140

ROD, CHOKE
(Superseded to A240000020)

$2.99

$

In Stock, only 3 left!

0

29

Echo 72933-82180

GROMMET
(Superseded to V130000050)

$1.99

$

In Stock, Qty 11

0

30

Echo 22160-32210

SCREW
(Superseded to V253000710)

$0.99

$

In Stock, Qty 9

0

31

Echo 22100-82110

WASHER
(Superseded to V303000280)

$0.99

$

In Stock, only 2 left!

0

32

Echo 72933-82130

PLATE, CHOKE
(Superseded to A243000150)

$1.99

$

In Stock, Qty 5

0

33

Echo 72933-82150

PLATE, PREVENT
(Superseded to A244000100)

$2.99

$

In Stock, only 1 left!

0

34

Echo 11022-05450

SCREW - 5X45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 20+

0

35

Echo 72933-82210

FILTER, AIR
(Superseded to A226000490)

$13.99

$

In Stock, Qty 11

0

36

Echo 02439-05080

RING, RETAINING
(Superseded to V490000450)

$0.99

$

In Stock, Qty 15

0

37

Echo 72933-82230

COVER, AIR FILTER
(Superseded to A232000570)

$6.49

$

In Stock, Qty 11

0

38

Echo 70064-32130

SCREW
(Superseded to A235000210)

$2.49

$

In Stock, only 2 left!

0

Echo 99909-159

DIAPHRAGM/GASKET KIT

$14.99

$

In Stock, only 2 left!

0
