EB 240 S - Shindaiwa Handheld Blower (SN: 20001001 - 20999999) Crankcase / Engine Cover Parts Diagram

Handheld Blower

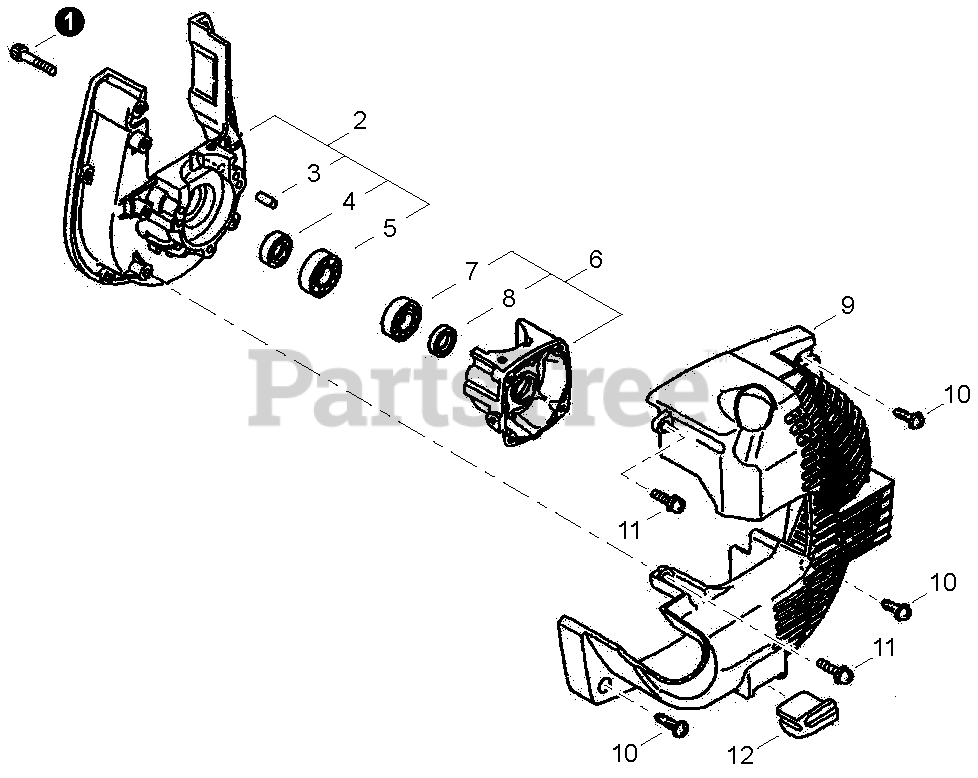

Crankcase / Engine Cover Parts Diagram

  • Title
1

Echo 90010505025

SCREW - 5X25

Note: 01020-05250

$1.49

$

In Stock, Qty 20+

0

2

Echo P021033400

CRANKCASE ASSY - FRONT

Note: 72933-21200

$37.99

$

Usually ships in 2-4 days

0

3

Echo 90033040080

PIN - LOCATING

Note: 12492-40080

$0.99

$

In Stock, Qty 20+

0

4

Echo V505000080

SEAL, OIL - 12

Note: 20000-21211

$2.99

$

In Stock, Qty 13

0

5

Echo V592000330

BEARING, BALL - 6201C3
(Superseded to 9403536201)

Note: 12900-62010

$7.99

$

In Stock, Qty 11

0

6

Echo P021018090

CRANKCASE ASSY - REAR

Note: 20035-21101

$69.99

$

In Stock, only 1 left!

0

7

Echo V592000310

BEARING, BALL 6001 C3

Note: 12900-60010

$5.99

$

In Stock, only 3 left!

0

8

Echo V505000140

SEAL, OIL - 12

Note: 22150-21250

$3.49

$

In Stock, only 3 left!

0

9

Echo A190000880

COVER, ENGINE

Note: 72933-31111

$28.99

$

In Stock, only 1 left!

0

10

Echo V253000550

SCREW - 5X20

Note: 22160-32220

$0.99

$

In Stock, Qty 5

0

11

Echo 9157705016

SCREW - 5X16

Note: 11207-05160

$0.99

$

In Stock, Qty 7

0

12

Echo V420002120

CUSHION

Note: 72933-31121

$3.99

$

Usually ships in 2-4 days

0
