EB 212 - Shindaiwa Handheld Blower (SN: P45114001001 - P45114999999) FUEL SYSTEM Parts Diagram

Handheld Blower

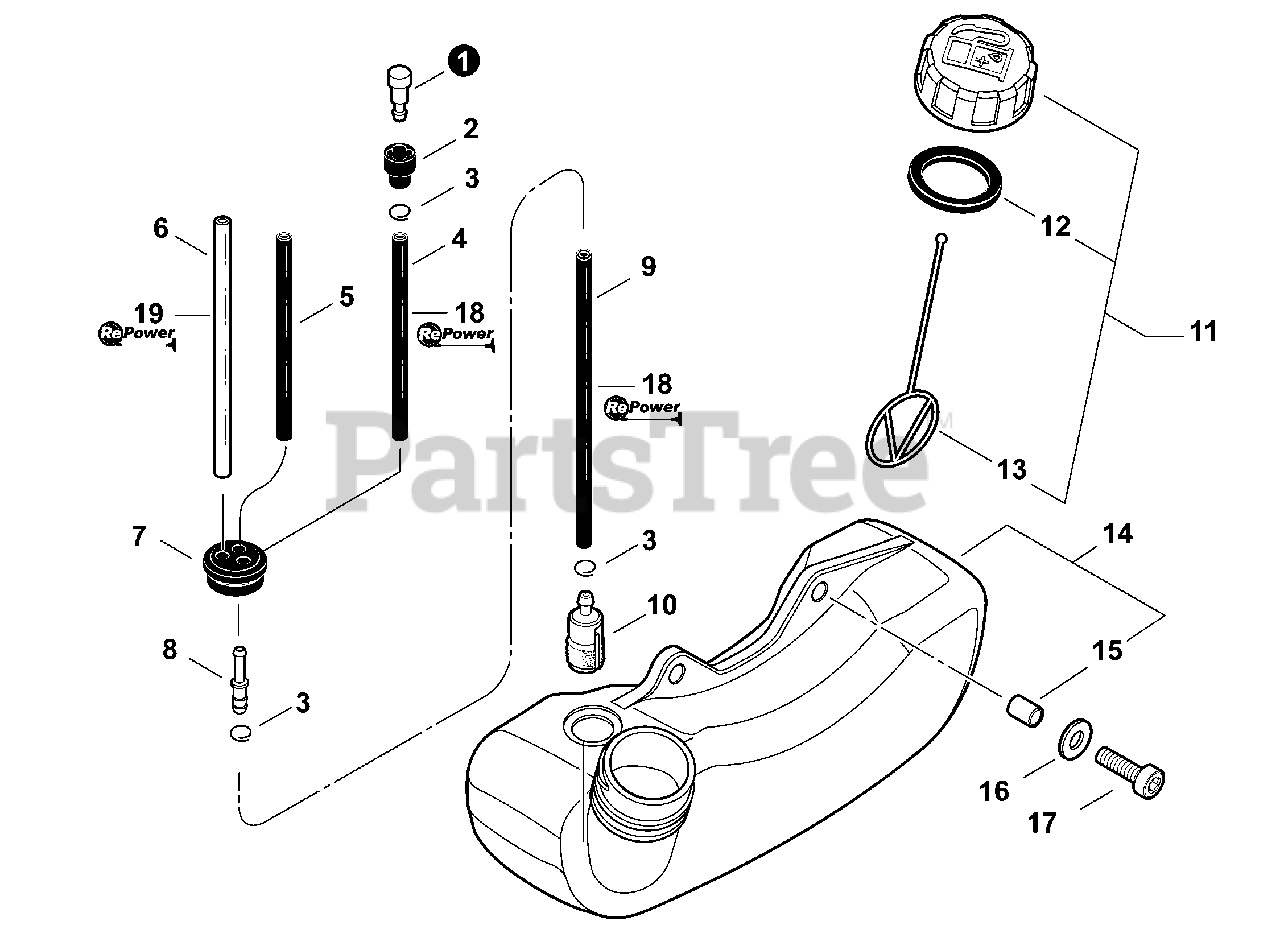

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

3

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

4

Echo V471001200

PIPE, FUEL 3×5×70 BLACK
(Superseded to V471001201)

$1.99

$

In Stock, Qty 20+

0

5

Echo V471003600

PIPE, FUEL 3×5×87
(Superseded to V471005660)

$3.99

$

In Stock, Qty 10

0

6

Echo 13201056330

PIPE, FUEL RETURN 3×6×90mm

$2.99

$

In Stock, Qty 20+

0

7

Echo 13211546730

GROMMET, FUEL 5

$1.99

$

In Stock, Qty 19

0

8

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471003700

PIPE, FUEL 3×5×130 BLACK

$1.49

$

In Stock, only 2 left!

0

10

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

11

Echo P021040480

CAP ASSY, FUEL

Note: Includes Items 12-13

$5.49

$

In Stock, only 1 left!

0

12

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

13

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

14

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes Item 15

$24.99

$

In Stock, only 2 left!

0

15

Echo 13104528230

SPACER 6.2×7.8×6

$1.49

$

In Stock, Qty 20+

0

16

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

18

Echo 90014

PIPE, BULK - REPOWER 3×5mm BLACK

$42.99

$

In Stock, Qty 13

0

19

Echo 90017

PIPE, BULK - REPOWER 3×6mm CLEAR

$58.99

$

In Stock, Qty 7

0
