EB 212 - Shindaiwa Handheld Blower (SN: P37413001001 - P37413999999) ENGINE Parts Diagram

Handheld Blower

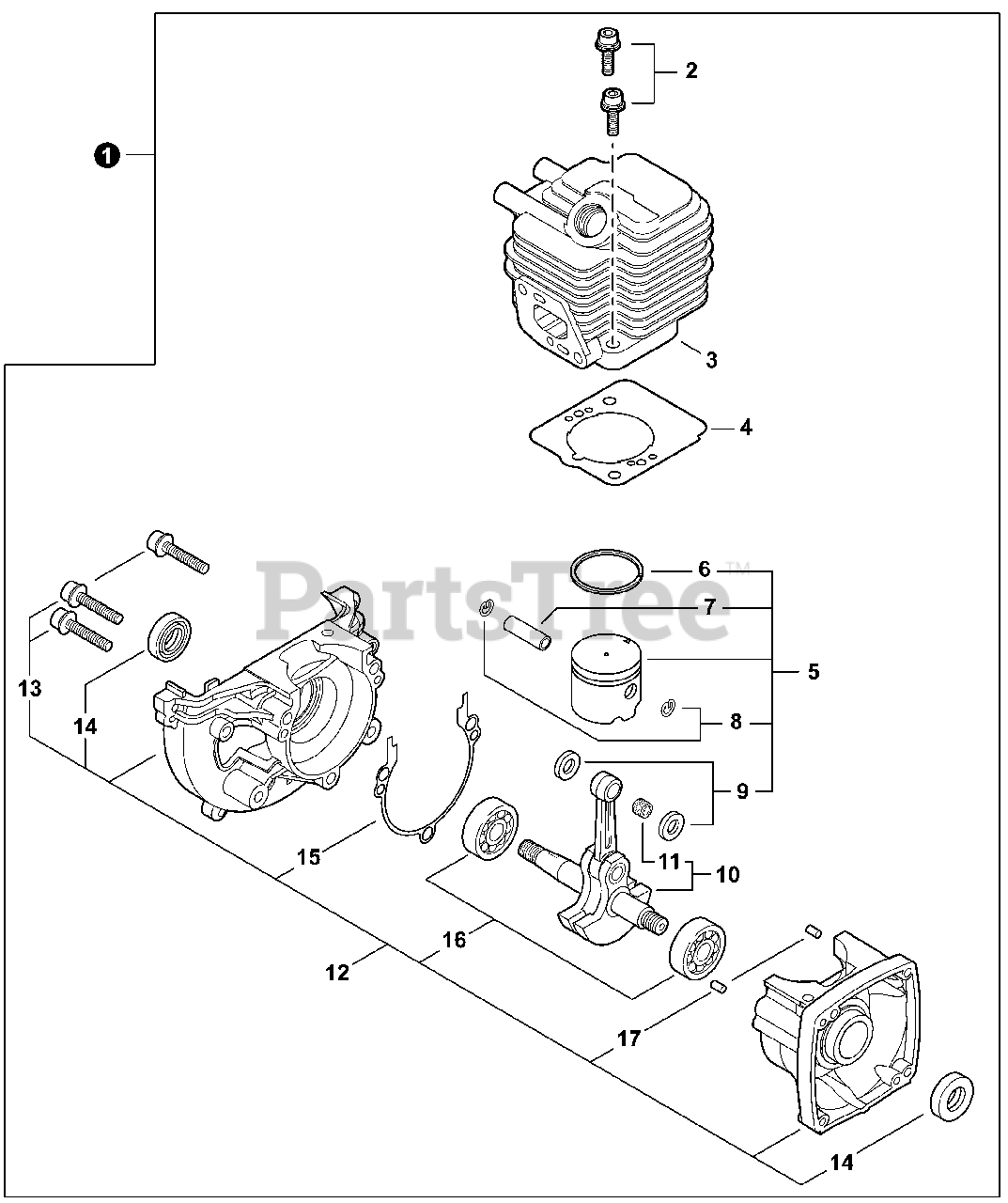

ENGINE Parts Diagram

  • Title

1

Echo SB1076

SHORT BLOCK

Note: Includes Items 2-17

$168.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000550

CYLINDER

$90.99

$

Usually ships in 2-4 days

0

4

Echo V100000160

GASKET, CYLINDER

$6.49

$

In Stock, Qty 20+

0

5

Echo P021007712

PISTON KIT

Note: Includes Items 6-9

$50.99

$

In Stock, only 3 left!

0

6

Echo A101000090

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001311520

PIN, PISTON 5×8×25.5

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 9

0

9

Echo 10001411520

WASHER, THRUST 8.2×13×0.5

$3.49

$

In Stock, only 3 left!

0

10

Echo A011000150

CRANKSHAFT ASSY
(Superseded to A011000151)

Note: Includes Item 11

$150.99

$

Usually ships in 2-4 days

0

11

Echo V553000060

BEARING, NEEDLE 8

$10.99

$

Usually ships in 2-4 days

0

12

Echo 10020452133

CRANKCASE KIT

Note: Includes Items 13-17

$140.99

$

Usually ships in 2-4 days

0

13

Echo 90016205028

BOLT 5×28

$1.99

$

In Stock, Qty 20+

0

14

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 11

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

16

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

17

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0
