EAV 20 A - Husqvarna Electric Lift Kit for Gear Drive Tractors (2002) Gear Drive Parts Diagram

Electric Lift Kit for Gear Drive Tractors

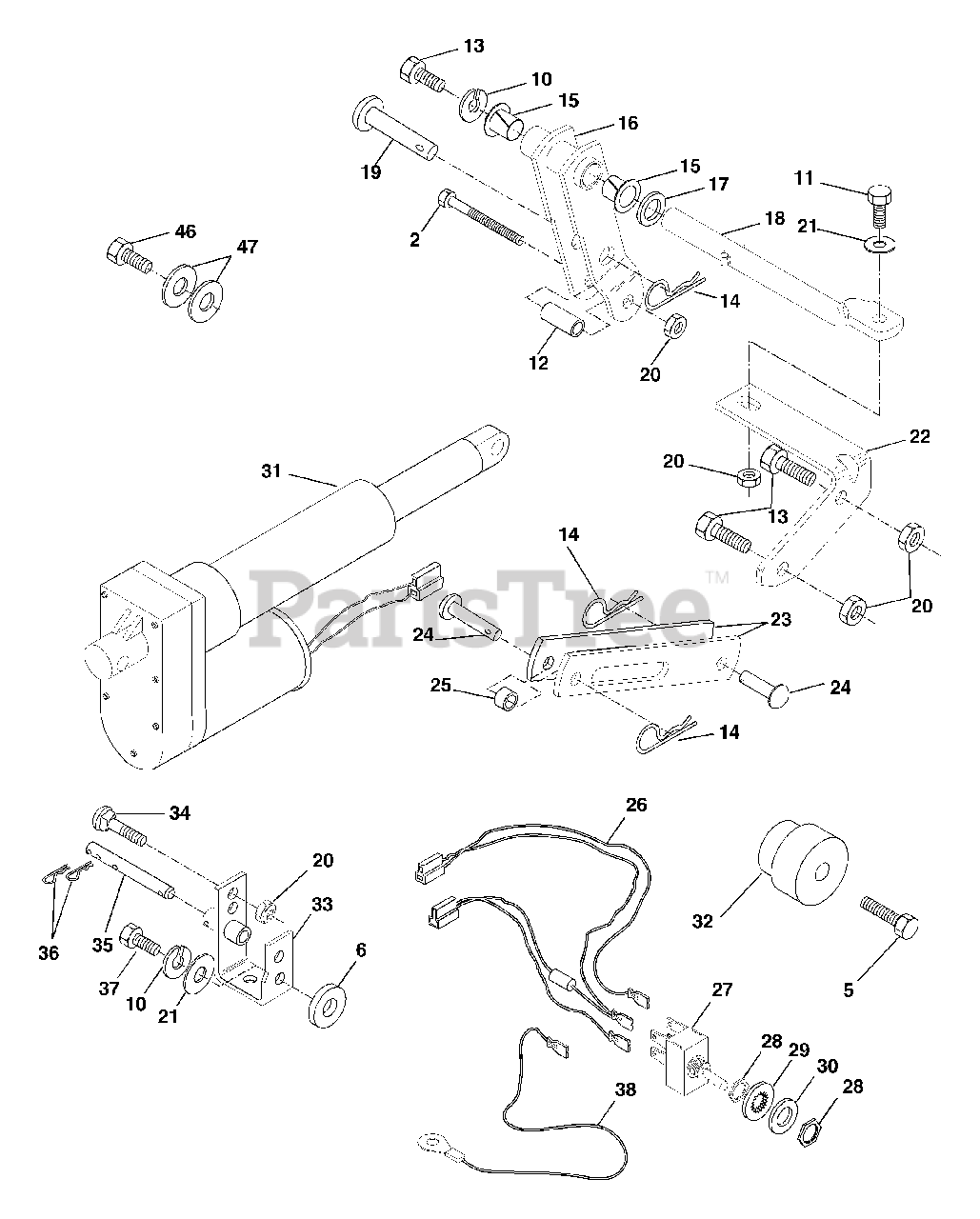

Gear Drive Parts Diagram

  • Title
2

Electrolux/AYP 74520636

Bolt, Hex 3/8-16 x 2-1/4 Grade 5
(Superseded to 596564404)

$3.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 74760622

Bolt, Hex 3/8-16 x 1-3/8
(Superseded to 874760622)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 19131407

Washer 13/32 x 7/8 x 7 Ga.

$

$

Not available

10

Electrolux/AYP 10040600

Washer, Lock
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 74760620

Bolt, Hex 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 5950J

Bushing .384 x 1/2 x 1-1/4
(Superseded to 532005950)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74760614

Bolt, Hex 3/8-16 x 7/8

$

$

Not available

14

Murray 4939M

Spring, Retainer

$

$

Not available

15

Electrolux/AYP 139276

Nyliner
(Superseded to 532139276)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 138908

Arm, Pivot
(Superseded to 532138908)

$36.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 19211621

Washer 21/32 x 1 x 21 Ga.
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 138914

Rod, Pivot Support

$9.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 138948

Pin, Pivot
(Superseded to 532138948)

$

$

Not available

20

Electrolux/AYP 73800600

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 19131416

Washer 13/32 x 7/8 x 16 Ga.
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 138912

Bracket, Pivot Rod

$18.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 138905

Link, Lift
(Superseded to 532138905)

$

$

Not available

24

Electrolux/AYP 138947

Pin, Pivot
(Superseded to 532138947)

$

$

Not available

25

Electrolux/AYP 138909

Spacer
(Superseded to 532138909)

$4.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 127017X

Harness, Lift Kit
(Superseded to 532127017)

$31.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 8984R

Switch, Lift

$

$

Not available

28

Electrolux/AYP 7320R

Nut, Switch

$

$

Not available

29

Electrolux/AYP 7319R

Washer, Lock Int. Tooth

$

$

Not available

30

Electrolux/AYP 19151216

Washer 15/32 x 3/4 x 16 Ga.
(Superseded to 819151216)

$

$

Not available

31

Electrolux/AYP 124371X

Electric, Actuator
(Superseded to 532124371)

$

$

Not available

32

UNKNOWN

$

$

Not available

32A

Electrolux/AYP 105624X

Hub, Lever Lift (Splined)
(Superseded to 532105624)

$12.99

$

Usually ships in 3-10 days

0

32B

Electrolux/AYP 156816

Hub, Lever Lift (Tapered)
(Superseded to 532156816)

$

$

Not available

33

Electrolux/AYP 677A886

Bracket Asm, Actuator, Gear Drive

$

$

Not available

34

Electrolux/AYP 72270608

Bolt, Carriage 3/8-16 x 1

$

$

Not available

35

Electrolux/AYP 140877

Pin, Actuator
(Superseded to 532140877)

$

$

Not available

36

Electrolux/AYP 4940M

Spring, Retainer

$

$

Not available

37

Electrolux/AYP 74760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 9698R

Wire, Ground
(Superseded to 532009698)

$5.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 17580520

Screw 5/16-18 x 1-1/4
(Superseded to 817580520)

$4.99

$

In Stock, only 3 left!

0

47

Electrolux/AYP 19112410

Washer 11/32 x 1-1/2 x 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0
