EAV 20 A - Husqvarna Electric Lift Kit for Gear Drive Tractors (2002) Automatic Drive (With Side Mounted Transaxle Pulley) Parts Diagram

Electric Lift Kit for Gear Drive Tractors

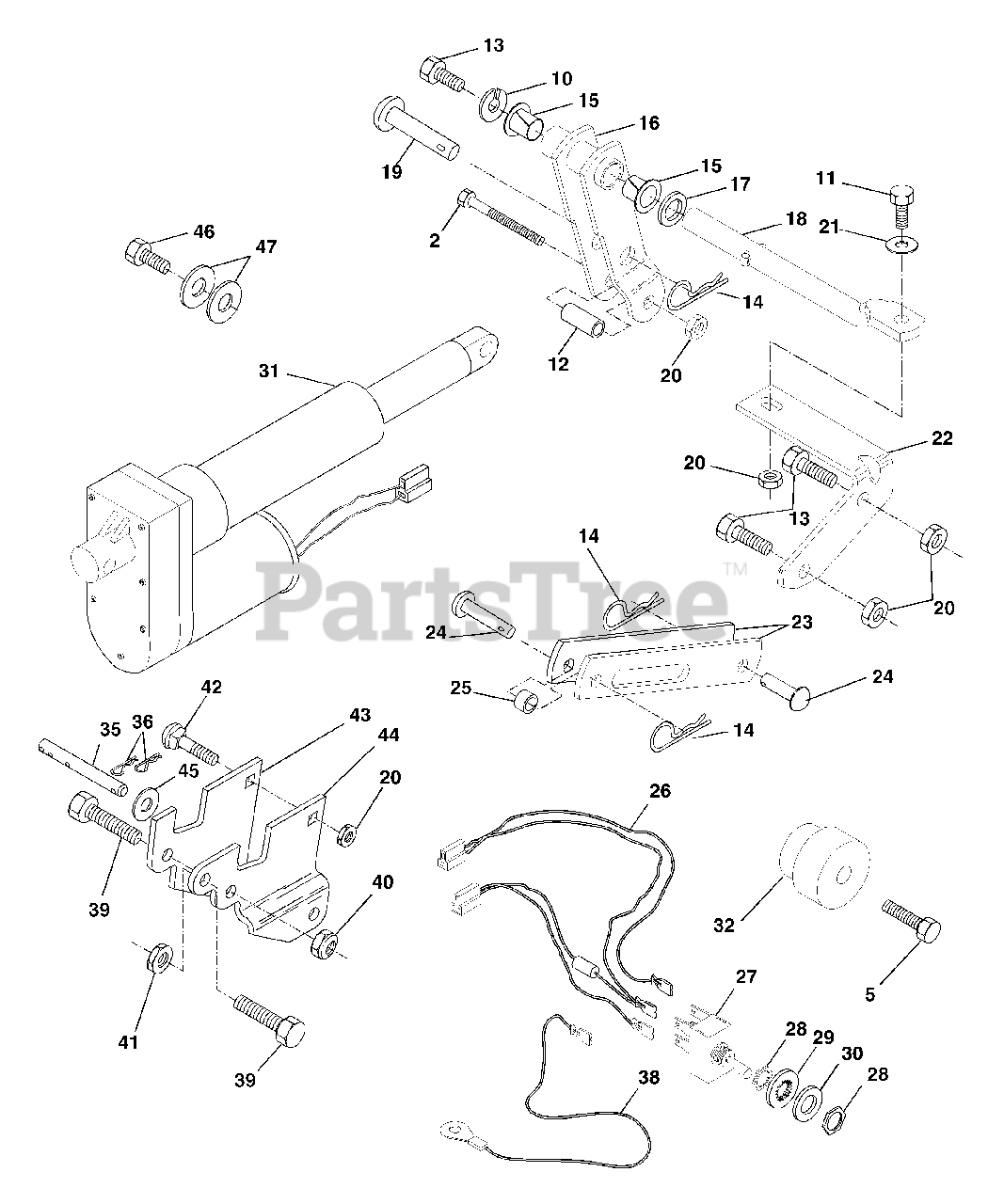

Automatic Drive (With Side Mounted Transaxle Pulley) Parts Diagram

  • Title
2

Electrolux/AYP 74520636

Bolt, Hex 3/8-16 x 2-1/4 Grade 5
(Superseded to 596564404)

$3.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 74760622

Bolt, Hex 3/8-16 x 1-3/8
(Superseded to 874760622)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 10040600

Washer, Lock
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 74760620

Bolt, Hex 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 5950J

Bushing .384 x 1/2 x 1-1/4
(Superseded to 532005950)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74760614

Bolt, Hex 3/8-16 x 7/8

$

$

Not available

14

Murray 4939M

Spring, Retainer

$

$

Not available

15

Electrolux/AYP 139276

Nyliner
(Superseded to 532139276)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 138908

Arm, Pivot
(Superseded to 532138908)

$36.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 19211621

Washer 21/32 x 1 x 21 Ga.
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 138914

Rod, Pivot Support

$9.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 138948

Pin, Pivot
(Superseded to 532138948)

$

$

Not available

20

Electrolux/AYP 73800600

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 19131416

Washer 13/32 x 7/8 x 16 Ga.
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 138912

Bracket, Pivot Rod

$18.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 138905

Link, Lift
(Superseded to 532138905)

$

$

Not available

24

Electrolux/AYP 138947

Pin, Pivot
(Superseded to 532138947)

$

$

Not available

25

Electrolux/AYP 138909

Spacer
(Superseded to 532138909)

$4.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 127017X

Harness, Lift Kit
(Superseded to 532127017)

$31.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 8984R

Switch, Lift

$

$

Not available

28

Electrolux/AYP 7320R

Nut, Switch

$

$

Not available

29

Electrolux/AYP 7319R

Washer, Lock Int. Tooth

$

$

Not available

30

Electrolux/AYP 19151216

Washer 15/32 x 3/4 x 16 Ga.
(Superseded to 819151216)

$

$

Not available

31

Electrolux/AYP 124371X

Electric, Actuator
(Superseded to 532124371)

$

$

Not available

32

UNKNOWN

$

$

Not available

32A

Electrolux/AYP 105624X

Hub, Lever Lift (Splined)
(Superseded to 532105624)

$12.99

$

Usually ships in 3-10 days

0

32B

Electrolux/AYP 156816

Hub, Lever Lift (Tapered)
(Superseded to 532156816)

$

$

Not available

35

Electrolux/AYP 140877

Pin, Actuator
(Superseded to 532140877)

$

$

Not available

36

Electrolux/AYP 4940M

Spring, Retainer

$

$

Not available

38

Electrolux/AYP 9698R

Wire, Ground
(Superseded to 532009698)

$5.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 74780720

Bolt, Hex 7/16-14 x 1-1/4
(Superseded to 874780720)

$6.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 73350700

Jam Nut 7/16-14
(Superseded to 873350700)

$2.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 73800700

Locknut 7/16-14
(Superseded to 873800700)

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 72140610

Carraige Bolt 3/8-16 x 1-1/4
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 140876

LH Actuator Bracket, Hydro

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 140875

RH Actuator Bracket, Hydro

$8.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 19171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 819171216)

$

$

Not available

46

Electrolux/AYP 17580520

Screw 5/16-18 x 1-1/4
(Superseded to 817580520)

$4.99

$

In Stock, only 3 left!

0

47

Electrolux/AYP 19112410

Washer 11/32 x 1-1/2 x 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0
