EAV 20 A - Husqvarna Electric Lift Kit for Gear Drive Tractors (2002) Actuator Parts Diagram

Electric Lift Kit for Gear Drive Tractors

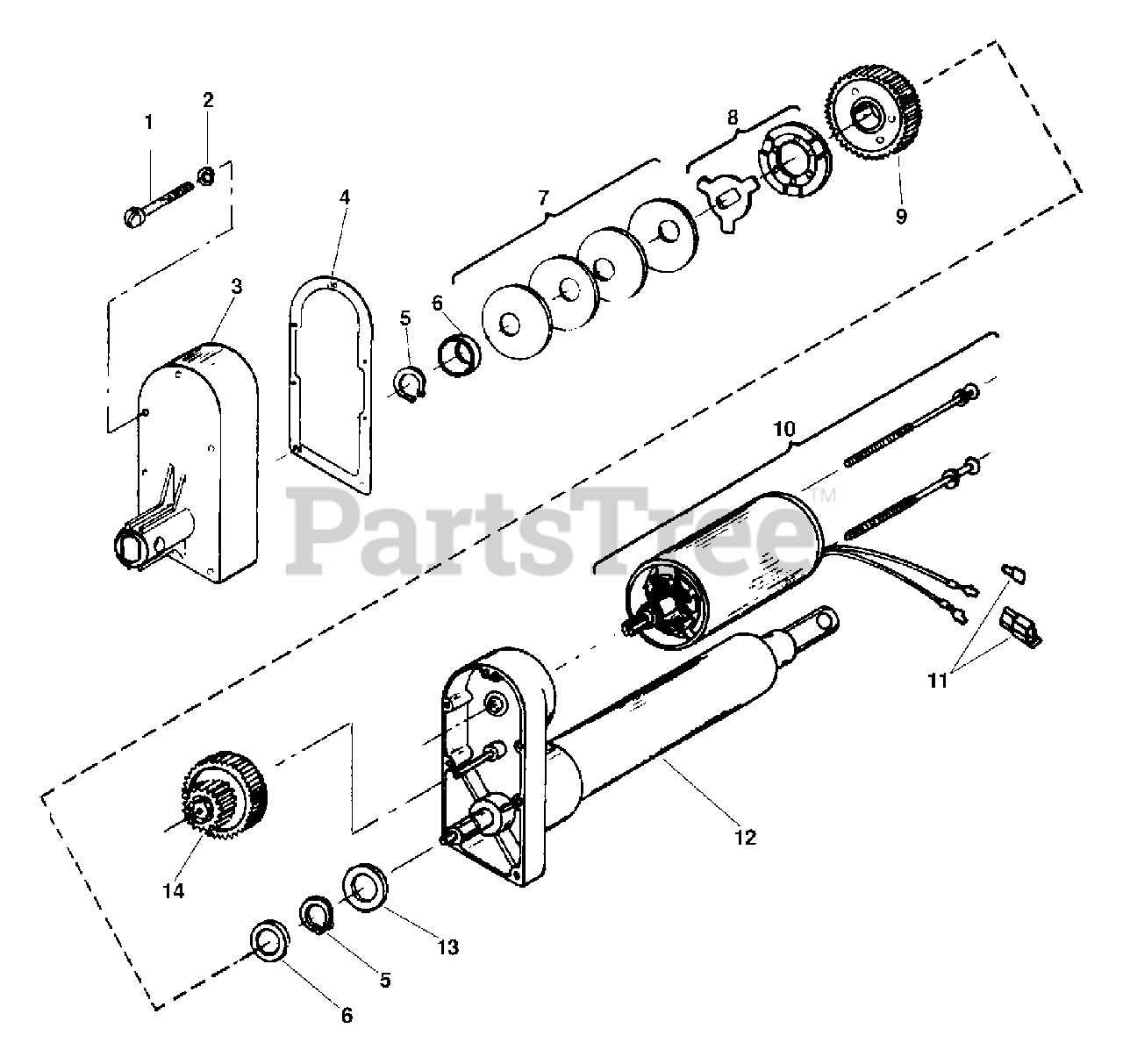

Actuator Parts Diagram

  • Title

1

Electrolux/AYP 1862J

Screw - Sl. Fil. Hd. Mach. No. 10-32 x 1-5/8

$

$

Not available

2

Electrolux/AYP 1863J

Lockwasher - No. 10

$

$

Not available

3

Electrolux/AYP 8331J

Housing Cover

$

$

Not available

4

Electrolux/AYP 1857J

Cover Gasket

$

$

Not available

5

Electrolux/AYP 1865J

Snap Ring

$

$

Not available

6

Electrolux/AYP 1864J

Retaining Ring

$

$

Not available

7

Electrolux/AYP 677A149

Spring Washer
(Superseded to 532677149)

Note: (Use 3 or 4 as req'd.)

$46.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 674A281

Pawl & Ramp Washer
(Superseded to 532674281)

$28.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 1859J

Out put Gear

$

$

Not available

10

Electrolux/AYP 1861J

Motor - 12V

$

$

Not available

11

Electrolux/AYP 673A218

Connector Body Kit
(Superseded to 532673218)

$60.99

$

Usually ships in 3-10 days

0

12

Not Serviced Separately Order complete actuator Part # 124371X

$

$

Not available

13

Electrolux/AYP 1860J

Thrust Washer

$

$

Not available

14

Electrolux/AYP 1858J

Intermediate Gear
(Superseded to 532001858)

$

$

Not available

Electrolux/AYP 124371X

Actuator
(Superseded to 532124371)

$

$

Not available
