EA-410 - Echo Earth Auger (SN: S05503001001 - S05503999999) Engine, Short Block -- SB1097, Decompression Assembly Parts Diagram

Earth Auger

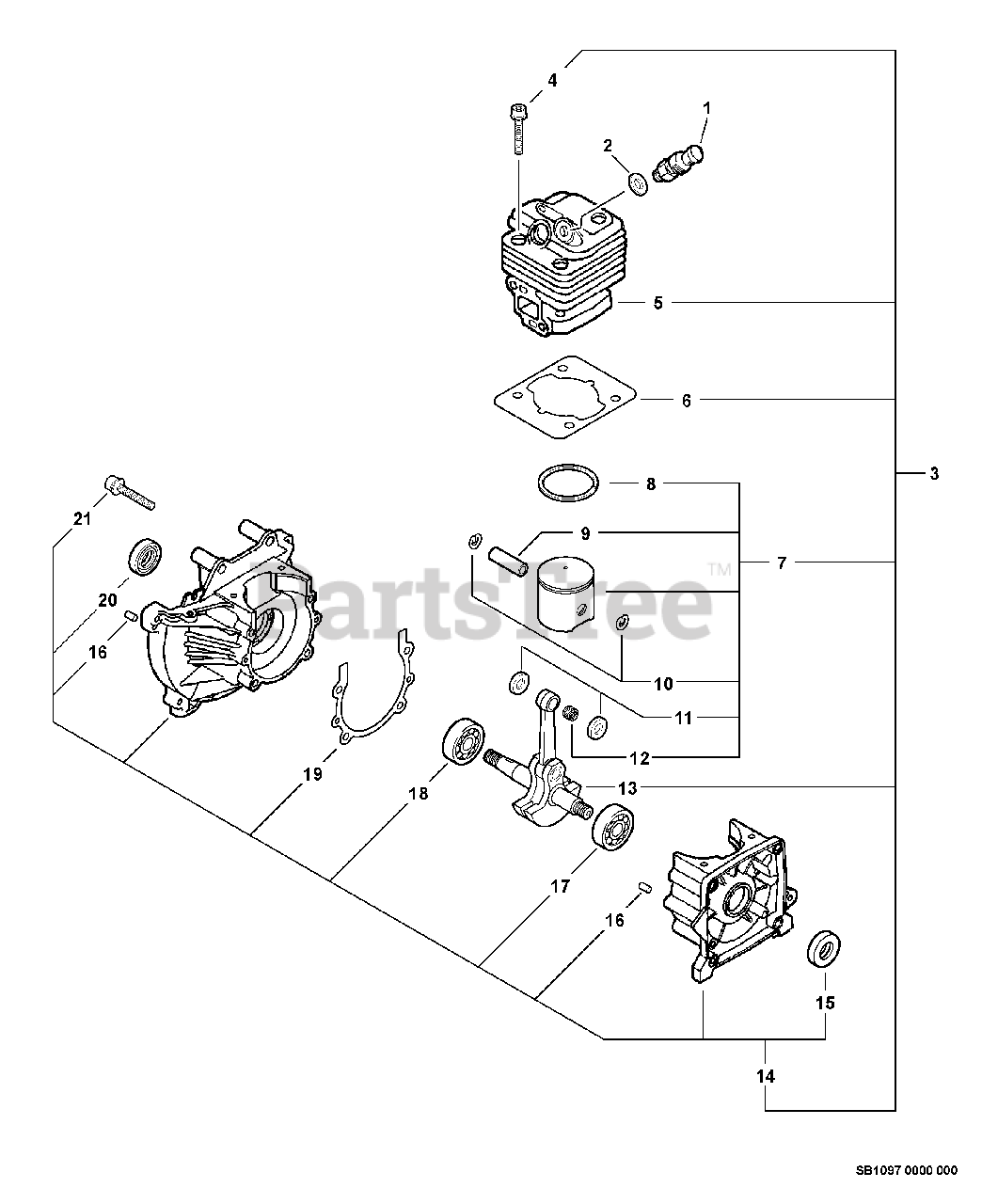

Engine, Short Block -- SB1097, Decompression Assembly Parts Diagram

  • Title

1

Echo A014000000

DECOMPRESSION ASSY

$60.99

$

In Stock, only 3 left!

0

2

Echo 15902537530

WASHER
(Superseded to V109000150)

$1.99

$

Usually ships in 2-4 days

0

3

Echo SB1097

SHORT BLOCK -- SB1097

Note: Includes ITEMS 4-21

$401.99

$

Usually ships in 2-4 days

0

4

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

5

Echo A130000880

CYLINDER

$148.99

$

Usually ships in 2-4 days

0

6

Echo V100000040

GASKET, CYLINDER

$3.49

$

Usually ships in 2-4 days

0

7

Echo P021014260

PISTON KIT
(Superseded to P021014261)

Note: Includes ITEMS 8-12

$78.99

$

Usually ships in 2-4 days

0

8

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 16

0

9

Echo V608000000

PIN, PISTON

$5.99

$

Usually ships in 2-4 days

0

10

Echo V580000010

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0

11

Echo V307000060

WASHER - 10

$6.49

$

Usually ships in 2-4 days

0

12

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 7

0

13

Echo A011000120

CRANKSHAFT ASSY

$217.99

$

In Stock, only 1 left!

0

14

Echo P021002471

CRANKCASE KIT

Note: Includes ITEMS 15-21

$196.99

$

Usually ships in 2-4 days

0

15

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

16

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

17

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

18

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

19

Echo V102000001

GASKET, CRANKCASE

$1.49

$

Usually ships in 2-4 days

0

20

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

21

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0
