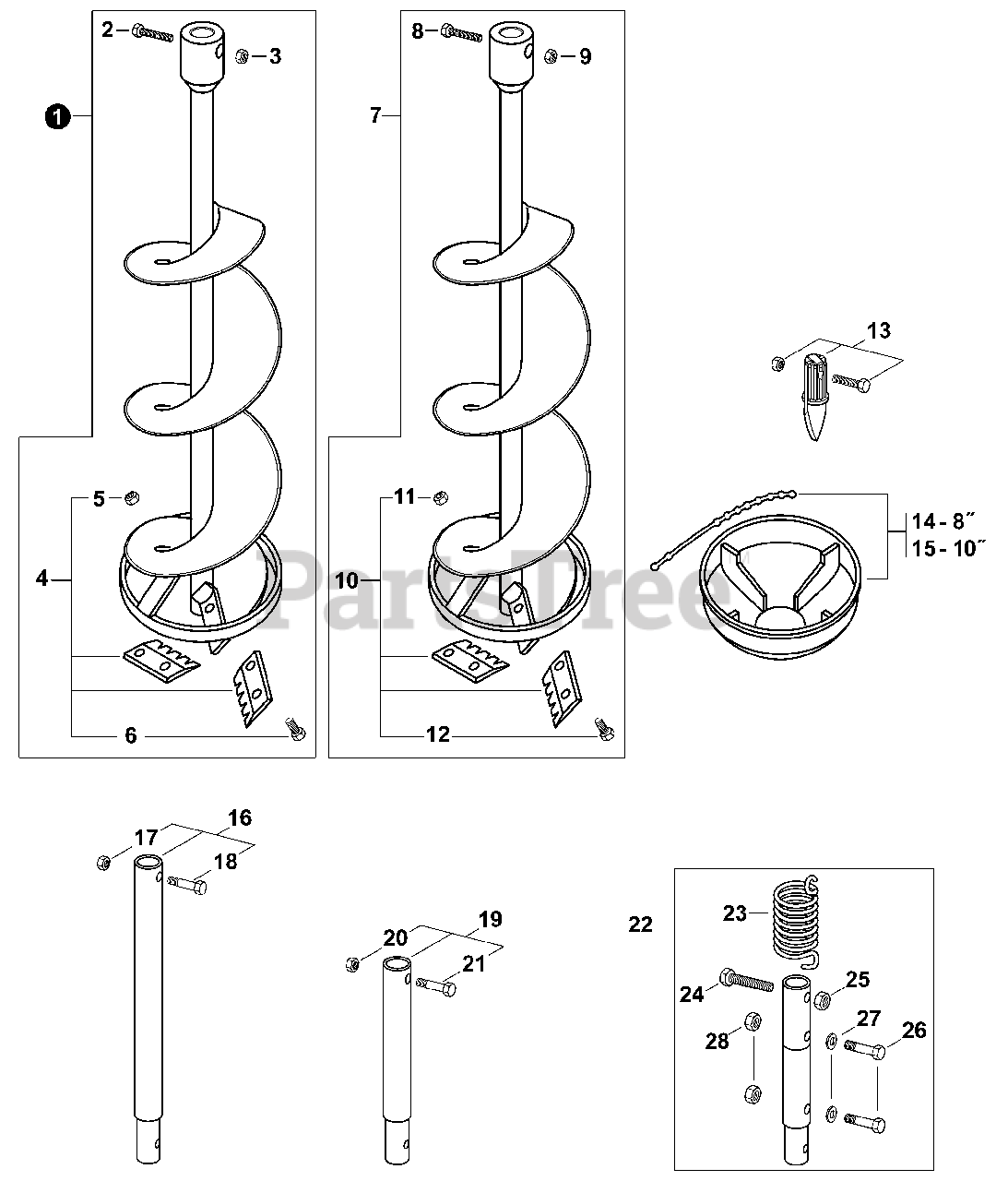

EA-410 - Echo Earth Auger (SN: E52113001001 - E52113999999) Accessories: Ice Auger, Extensions Parts Diagram

Earth Auger

Accessories: Ice Auger, Extensions Parts Diagram

  • Title

1

Echo 99944900280

DUAL BLADE ICE AUGER - 8" DIA.

Note: Includes ITEMS 2-6

$254.99

$

Usually ships in 2-4 days

0

2

BOLT 3/8"-16×1-1/2"

$

$

Not available

3

NUT, LOCK 3/8"-16

$

$

Not available

4

Echo 99944900300

ICE AUGER DUAL BLADE KIT - 8" DIA.

Note: Includes ITEMS 5-6

$56.99

$

Usually ships in 2-4 days

0

5

NUT, LOCK M5

$

$

Not available

6

SCREW 5×16

$

$

Not available

7

Echo 99944900290

DUAL BLADE ICE AUGER - 10" DIA.

Note: Includes ITEMS 8-12

$299.99

$

Usually ships in 2-4 days

0

8

BOLT 3/8"-16×1-1/2"

$

$

Not available

9

NUT, LOCK 3/8"-16

$

$

Not available

10

Echo 99944900310

ICE AUGER DUAL BLADE KIT - 10" DIA.

Note: Includes ITEMS 11-12

$61.99

$

In Stock, only 1 left!

0

11

NUT, LOCK M5

$

$

Not available

12

SCREW 5×16

$

$

Not available

13

Echo 99944900275

ICE AUGER POINT KIT

$46.99

$

Usually ships in 2-4 days

0

14

Echo 99922203813

ICE AUGER COVER - 8"

$23.99

$

Usually ships in 2-4 days

0

15

Echo 99922203814

ICE AUGER COVER - 10"

$23.99

$

Usually ships in 2-4 days

0

16

Echo 99944900210

EXTENSION SHAFT - 18" (7/8" DIA)

Note: Includes ITEMS 17-18

$74.99

$

Usually ships in 2-4 days

0

17

NUT, LOCK 3/8"-16

$

$

Not available

18

BOLT 3/8"-16×1-1/2"

$

$

Not available

19

Echo 99944900220

EXTENSION SHAFT - 12" (7/8" DIA)

Note: Includes ITEMS 20-21

$73.99

$

Usually ships in 2-4 days

0

20

NUT, LOCK 3/8"-16

$

$

Not available

21

BOLT 3/8"-16×1-1/2"

$

$

Not available

22

Echo 99944900335

ADAPTER W/SPRING - 7/8" TO 1" DIA.

Note: Includes ITEMS 23-28

$120.99

$

Usually ships in 2-4 days

0

23

Echo V451000460

SPRING, TENSION

$63.99

$

Usually ships in 2-4 days

0

24

BOLT 3/8"-16×1-1/2"

$

$

Not available

25

NUT, LOCK 3/8"-16

$

$

Not available

26

BOLT 5/16"-18×2"

$

$

Not available

27

WASHER 5/16"

$

$

Not available

28

LOCK NUT 5/16"-18

$

$

Not available
