EA-410 - Echo Earth Auger (SN: E01904001001 - E01904999999) Throttle Control, Ignition Switch, Throttle Cable Parts Diagram

Earth Auger

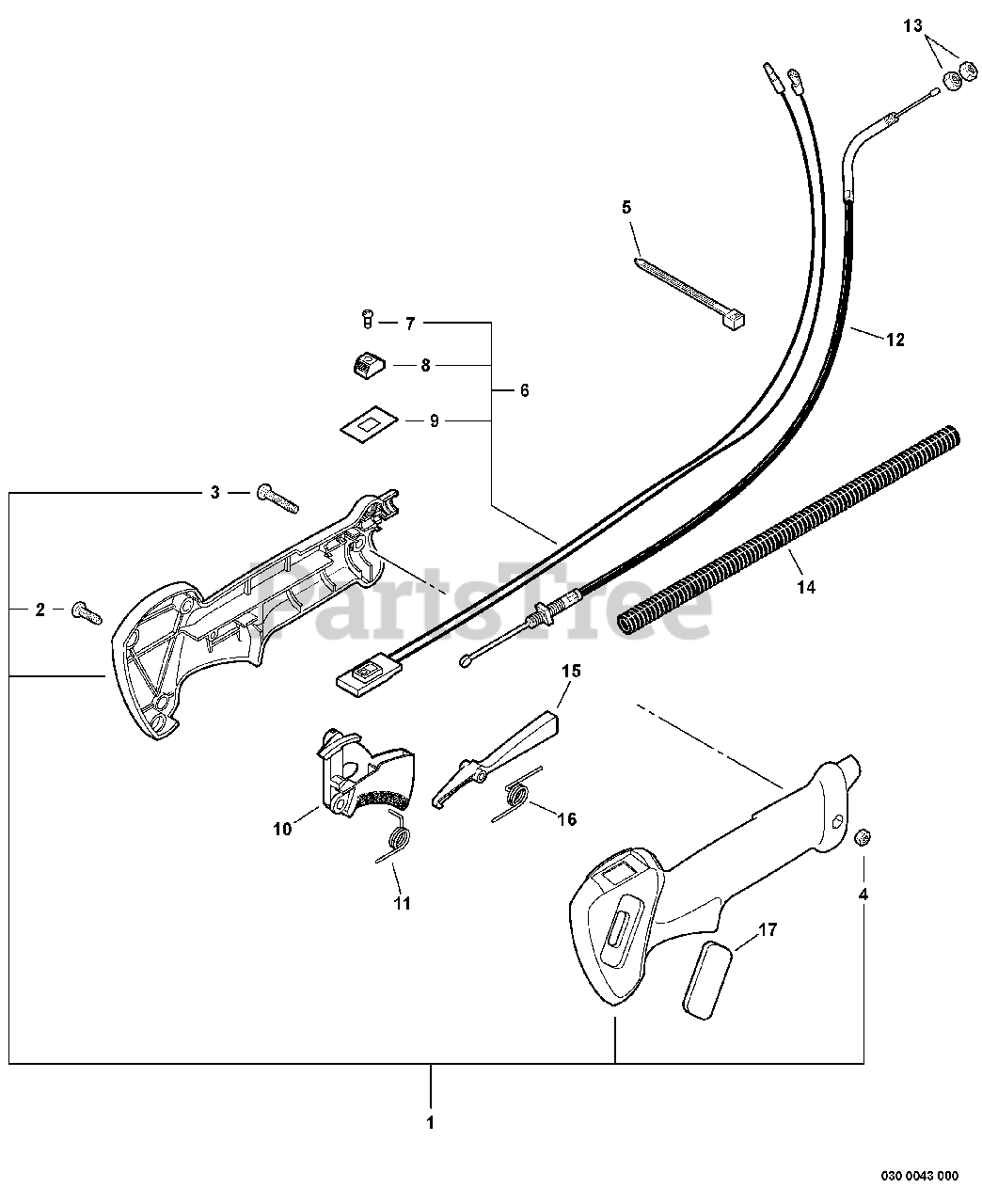

Throttle Control, Ignition Switch, Throttle Cable Parts Diagram

  • Title

1

Echo P021002612

CONTROL HANDLE ASSY

Note: Includes ITEMS 2-4

$33.99

$

In Stock, only 3 left!

0

2

Echo 90025304016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023505030

SCREW - 5X30

$

$

Not available

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 17812110050

TIE, CABLE

$0.99

$

In Stock, Qty 8

0

6

Echo A440000381

IGNITION SWITCH KIT
(Superseded to A440000382)

Note: Includes ITEMS 7-9

$13.99

$

In Stock, only 1 left!

0

7

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

8

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

9

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

10

Echo C450000022

TRIGGER, THROTTLE

$11.99

$

In Stock, only 3 left!

0

11

Echo V452000060

SPRING, TRIGGER

$1.49

$

In Stock, Qty 15

0

12

Echo V430000490

CABLE, THROTTLE

$24.99

$

In Stock, only 1 left!

0

13

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

14

Echo V475003060

TUBE, PROTECTIVE - CORRUGATED
(Superseded to V475004360)

$2.99

$

Usually ships in 2-4 days

0

15

Echo C460000011

LEVER, TRIGGER LOCKOUT

$4.99

$

In Stock, Qty 6

0

16

Echo V452000050

SPRING, LOCKOUT LEVER

$1.99

$

In Stock, Qty 8

0

17

Echo V162000130

PLUG

$2.49

$

In Stock, only 1 left!

0
