EA-410 - Echo Earth Auger (SN: E01904001001 - E01904999999) Fuel System, Starter Parts Diagram

Earth Auger

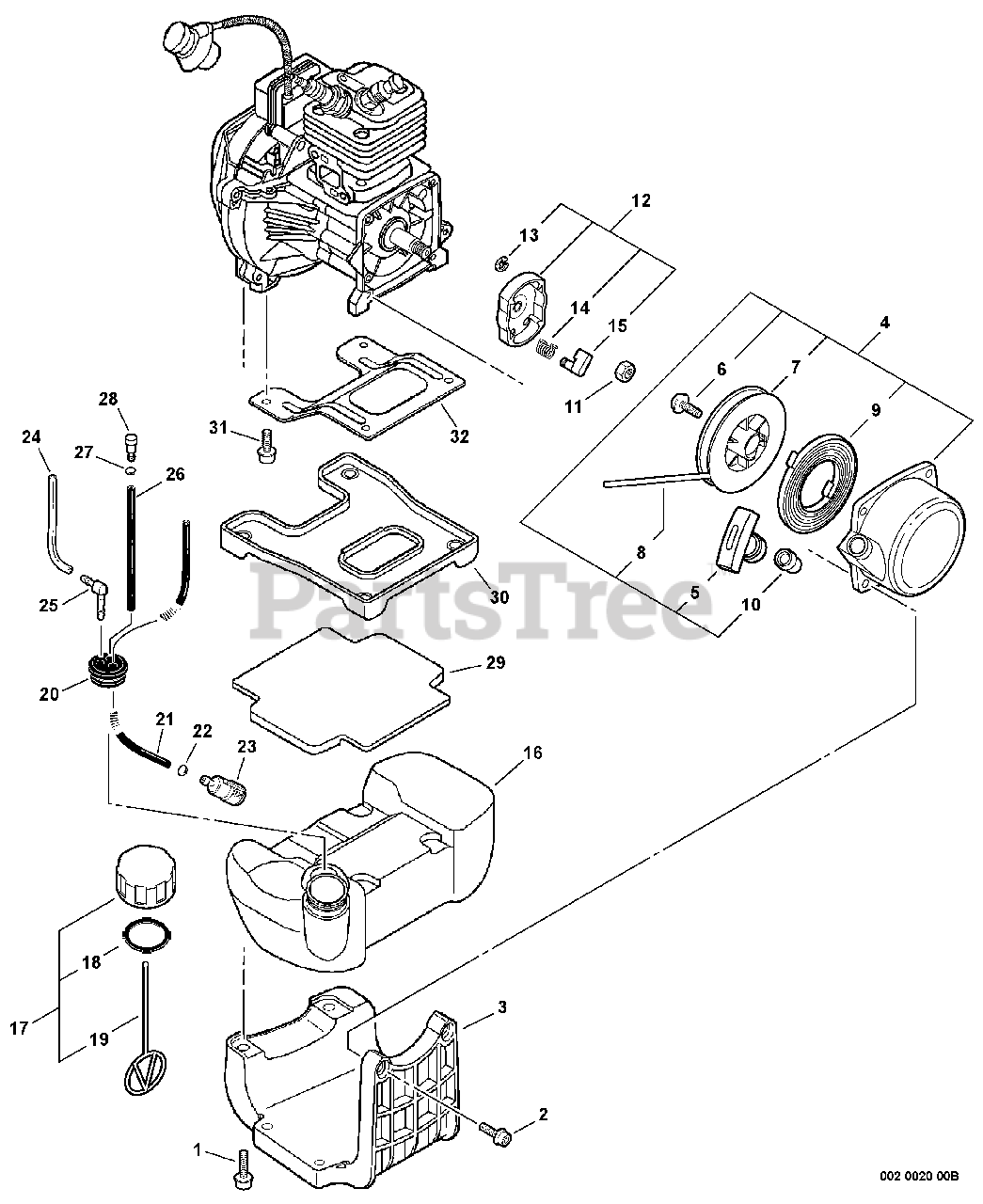

Fuel System, Starter Parts Diagram

  • Title

1

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo 90010605025

SCREW - 5X25

$0.99

$

In Stock, only 4 left!

0

3

Echo A393000050

BRACKET, FUEL TANK

$24.99

$

Usually ships in 2-4 days

0

4

Echo A051000190

STARTER ASSY

Note: Includes ITEMS 5-10

$73.99

$

Usually ships in 2-4 days

0

5

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

6

Echo 17723606910

SCREW

$3.49

$

Usually ships in 2-4 days

0

7

Echo P022002080

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

8

Echo 17722606310

ROPE, STARTER - 3.5X1000

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, only 4 left!

0

9

Echo 17722006310

SPRING, REWIND

$15.99

$

Usually ships in 2-4 days

0

10

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

11

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

12

Echo A052000011

STARTER PAWL ASSY

Note: Includes ITEMS 13-15

$13.99

$

Usually ships in 2-4 days

0

13

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, Qty 6

0

14

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

15

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

16

Echo A350000131

TANK, FUEL

$40.99

$

Usually ships in 2-4 days

0

17

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 18-19

$6.49

$

In Stock, only 3 left!

0

18

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

19

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

20

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

21

Echo 13201053630

PIPE - 3X6X180 -- BLACK
(Superseded to 13201053631)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, only 1 left!

0

22

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

23

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

24

Echo 43721520760

PIPE - 3X6X60 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 15

0

25

Echo V186000080

CONNECTOR, PIPE
(Superseded to V186000500)

$0.99

$

In Stock, Qty 20+

0

26

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

Note: RePower BULK OPTION: 90015

$4.49

$

Usually ships in 2-4 days

0

27

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

28

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

29

Echo A390000010

CUSHION, TANK - LOWER

$8.49

$

In Stock, only 1 left!

0

30

Echo A390000000

CUSHION, TANK - UPPER

$11.99

$

Usually ships in 2-4 days

0

31

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

32

Echo A393000030

BRACKET, FUEL TANK

$9.49

$

Usually ships in 2-4 days

0
