EA 20 A - Husqvarna Electric Lift Kit (1994-04) Electric Actuator - Gear Drive, Horizontal Engine Type Tractor Parts Diagram

Electric Lift Kit

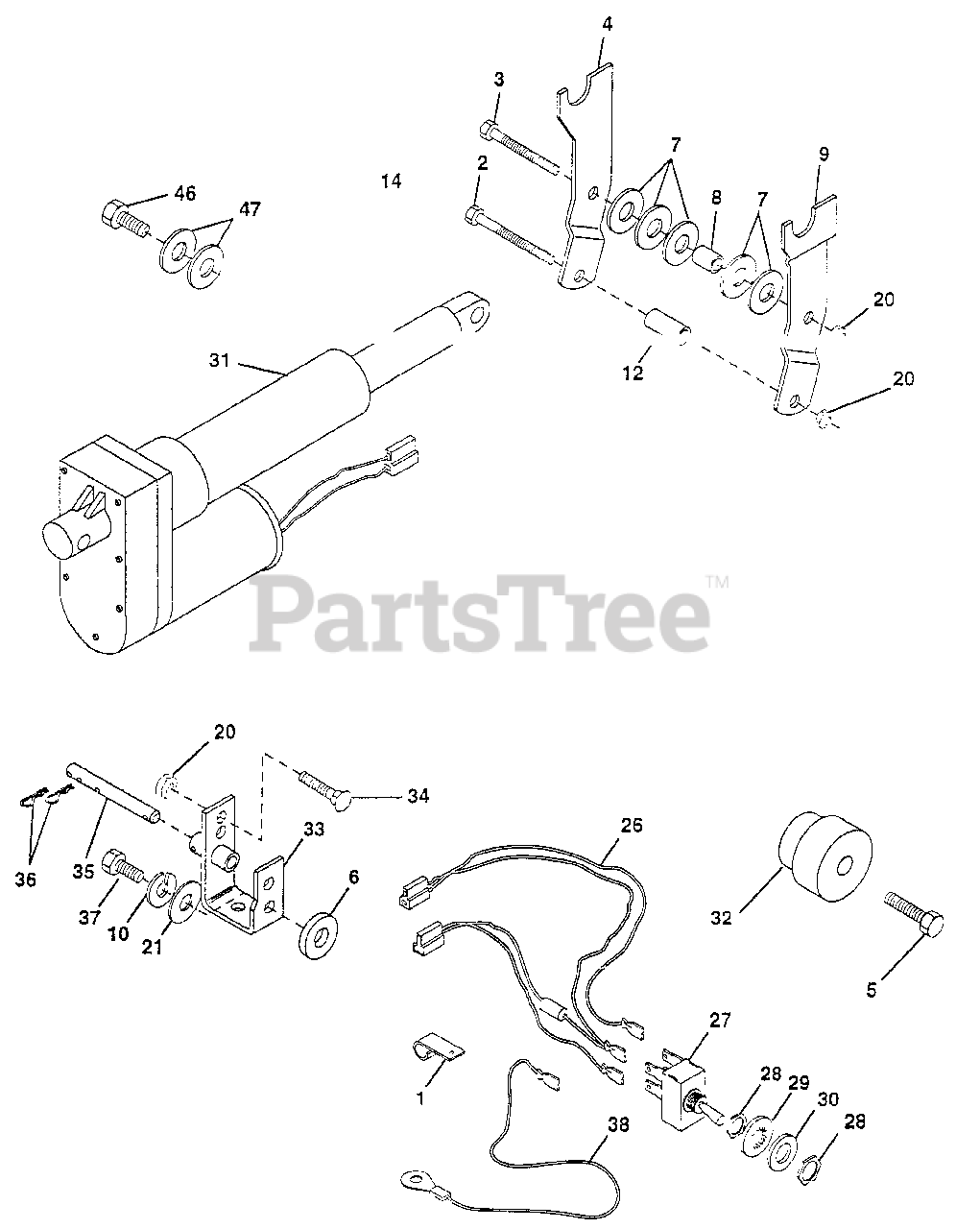

Electric Actuator - Gear Drive, Horizontal Engine Type Tractor Parts Diagram

  • Title
1

Husqvarna 4171R

Clip, Insulated

$

$

Not available

2

Husqvarna 74520636

Bolt, Hex 3/8-16 x 2-1/4 Grade 5
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 74520628

Bolt, Hex 3/8-16 x 1-3/4 Grade 5

$

$

Not available

4

Husqvarna 5948J

Bracket, Lift L.H.
(Superseded to 532005948)

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 74760622

Bolt. Hex 3/8-16 x 1-3/8
(Superseded to 874760622)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 19131407

Washer 13/32 x 7/8 x 7 Ga.

$

$

Not available

7

Husqvarna 19172410

Washer 17/32 x 1-1/2 x 10 Ga.

$

$

Not available

8

Husqvarna 5949J

Tube .384 x 1/2 x 15/16

$

$

Not available

9

UNKNOWN

$

$

Not available

10

Husqvarna 10040600

Washer, Lock
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 5950J

Bushing .384 x 1/2 x 1-1/4

$

$

Not available

14

Husqvarna 4939M

Spring, Retainer

$

$

Not available

20

Husqvarna 73800600

Locknut 3/8-16

$

$

Not available

21

Husqvarna 19131416

Washer 13/32 x 7/8 x 16 Ga.

$

$

Not available

26

Husqvarna 127017X

Harness, Lift Kit

$

$

Not available

27

Husqvarna 8984R

Switch, Lift

$

$

Not available

28

Husqvarna 7320R

Nut, Switch

$

$

Not available

29

Husqvarna 7319R

Washer, Lock Int. Tooth

$

$

Not available

30

Husqvarna 19151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

31

Husqvarna 124371X

Electric, Actuator

$

$

Not available

32

Husqvarna 105624X

Hub, Lever Lift
(Superseded to 532105624)

$12.99

$

Usually ships in 3-10 days

0

33

Husqvarna 677A886

Bracket, Assembly Actuator, Gear Drive

$

$

Not available

34

Husqvarna 72270608

Bolt, Carriage 3/8-16 x 1

$

$

Not available

35

Husqvarna 140877

Pin, Actuator

$

$

Not available

36

Husqvarna 4940M

Spring, Retainer

$

$

Not available

37

Husqvarna 74760616

Bolt, Hex 3/8-16 x 1

$

$

Not available

38

Husqvarna 9698R

Wire, Ground

$

$

Not available

46

Husqvarna 74760520

Bolt, Hex 5/16-18 x 1-1/4

$2.49

$

Usually ships in 3-10 days

0

47

Husqvarna 19112410

Washer 11/32 x 1-1/2 x 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0
