E900 A (E900) - Honda Generator, Made in Japan (SN: E900-1006474 - E900-1028750) FLYWHEEL + CRANKCASE + IGNITION COIL Parts Diagram

Generator, Made in Japan

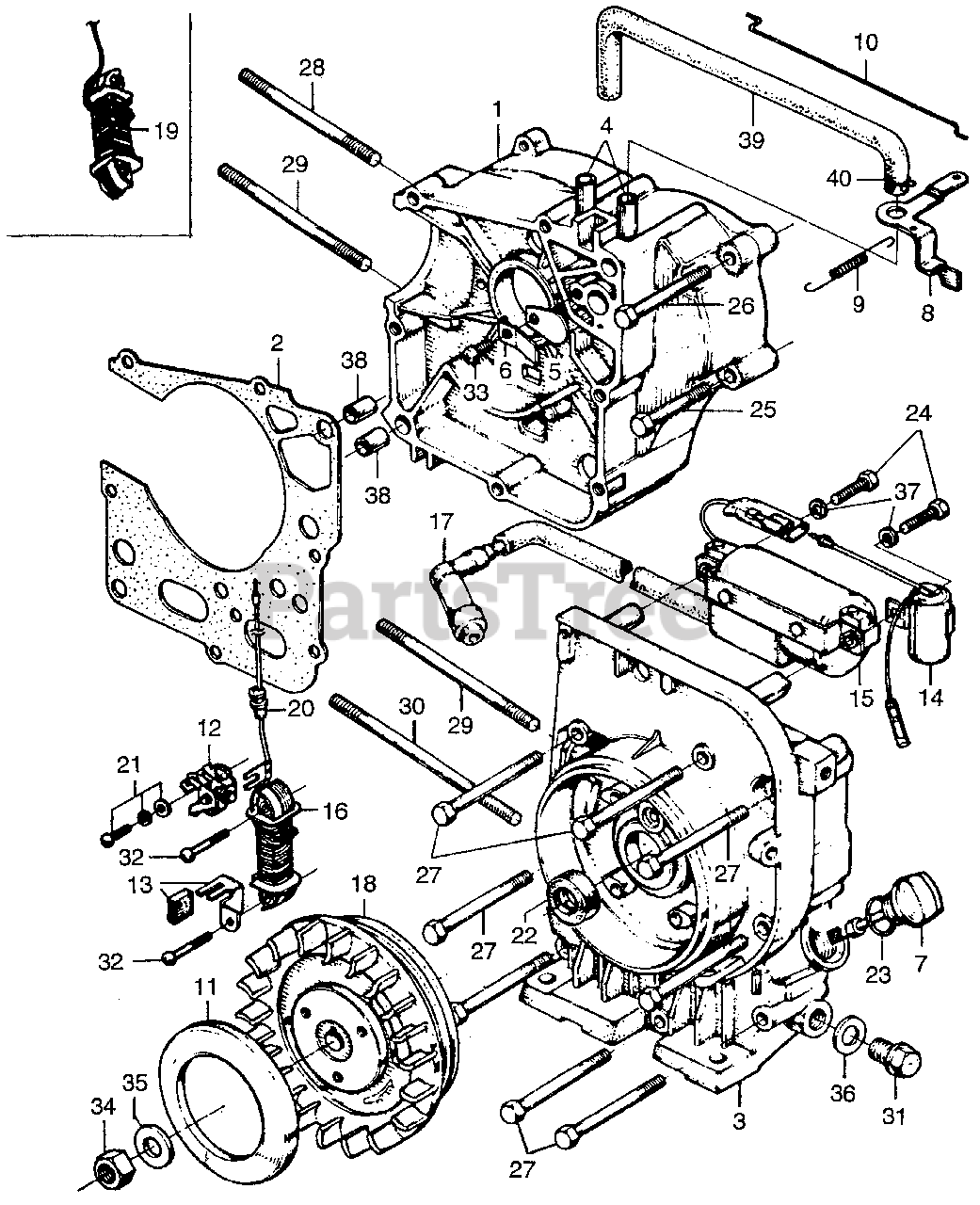

FLYWHEEL + CRANKCASE + IGNITION COIL Parts Diagram

  • Title

1

Honda 11101-844-010

CRANKCASE, R.

$

$

Not available

2

Honda 11191-844-000

GASKET, CRANKCASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 11201-844-000

CRANKCASE, L.

$

$

Not available

4

Honda 11204-816-010

JOINT, BREATHER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 12372-844-000

VALVE, BREATHER

$

$

Not available

6

Honda 12373-844-000

STOPPER, BREATHER

$

$

Not available

7

Honda 15620-844-000

CAP, OIL FILLER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16621-844-000

LEVER, CHOKE

$

$

Not available

9

Honda 16623-844-000

SPRING, CHOKE LEVER (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16625-844-000

ROD, CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 28433-816-010

COVER, SEAL

$

$

Currently unavailable

12

Honda 30202-063-004

POINTS

$

$

Not available

13

Honda 30205-816-650

FELT, OIL (DENSO)

$

$

Not available

14

Honda 30250-844-004

CONDENSER

$

$

Not available

15

Honda 30500-844-405

SEE PART DETAILS - PRI; COIL, IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 30500-844-711

SEE PART DETAILS - SUP; COIL, IGNITION

$

$

Currently unavailable

16

Honda 30560-844-004

COIL, IGNITION (NOT AVAILABLE)

$69.99

$

Usually ships in 3-6 days

0

17

Honda 30700-152-163

CAP ASSY., NOISE SUPPRESSOR (NICHIRIN)
(Superseded to 30700-KE2-942)

$23.99

$

Usually ships in 3-6 days

0

18

Honda 31120-844-004

FLYWHEEL (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 31520-830-168

COIL ASSY., EXCITER

Note: Use up to Engine SN 1009820.

$

$

Not available

19

Honda 31520-844-600

COIL ASSY., EXCITER (NOT AVAILABLE)

Note: Use from Engine SN 1009821.

$

$

Not available

20

Honda 32901-816-000

GROMMET, WIRE

$

$

Currently unavailable

21

Honda 90018-816-000

SCREW, STOP (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 91211-044-003

SEE PART DETAILS - PRI; OIL SEAL (15X25X6)

$

$

Not available

23

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

23

Honda 91304-MJ0-003

O-RING (15.8X2.4) (SHOWA)
(Superseded to 91303-800-000)

$2.99

$

In Stock, only 1 left!

0

24

Honda 92101-05025-0A

BOLT, HEX. (5X25)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 92101-06032-0A

BOLT, HEX. (6X32)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 92101-06045-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X45)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 92000-06056

BOLT, HEX. (6X56)

$

$

Currently unavailable

27

Honda 92000-06056-0A

BOLT, HEX. (6X56) (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 92700-06080

BOLT, STUD (6X80) (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 92700-06090

BOLT, STUD (6X90)

$

$

Currently unavailable

30

Honda 92700-06116

SEE PART DETAILS - SUP; BOLT, STUD (6X116)

$

$

Currently unavailable

31

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

32

Honda 93500-04020-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X20)

$1.49

$

In Stock, Qty 10

0

33

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

34

Honda 94030-10200

NUT, HEX. (10MM)

$1.49

$

In Stock, only 1 left!

0

35

Honda 90411-706-000

WASHER (10MM)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 4 left!

0

37

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

39

Honda 95001-70000

TUBE (7X224) (NOT AVAILABLE)

$

$

Currently unavailable

39

Honda 95001-70350

TUBE (7X224)

$

$

Currently unavailable

40

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

Note: Use from Engine SN 1122001.

$2.99

$

In Stock, only 2 left!

0

40

Honda 95002-70000

CLIP, TUBE (C11)

Note: Use up to Engine SN 1122000.

$2.49

$

In Stock, Qty 9

0
