E7-07BL02 - Toro 30" Rear Bagger (SN: 020000001 - 029999999) (1992) 200 SERIES TWIN REAR GRASS BAGGER Parts Diagram

30" Rear Bagger

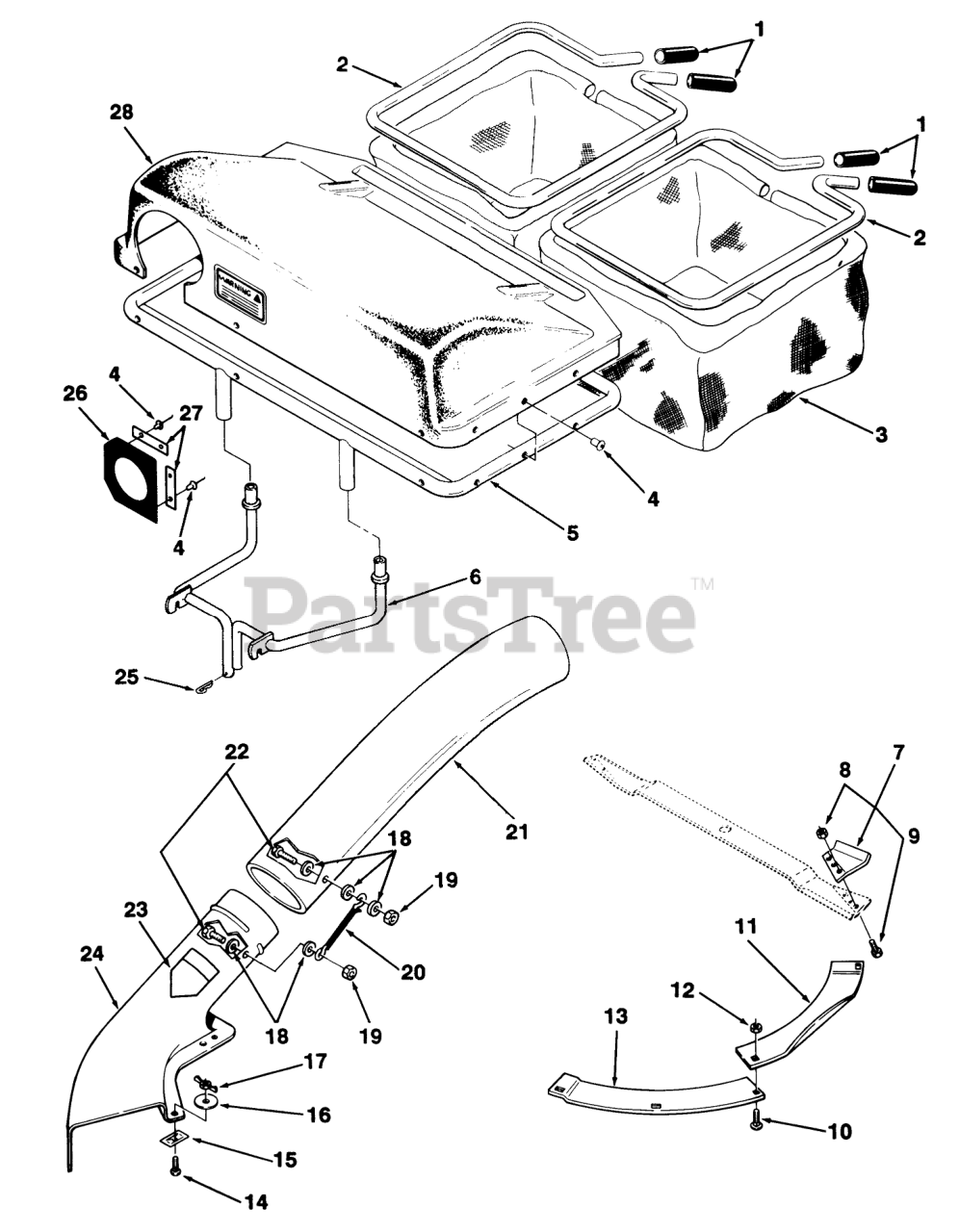

200 SERIES TWIN REAR GRASS BAGGER Parts Diagram

  • Title
1

Toro 6528

GRIP

$9.49

$

Usually ships in 3-6 days

0

2

Toro 113432

FRAME BAG B
(Superseded to 113432-03)

$

$

Not available

3

Toro 113434

BAG-BLACK(37"TWIN)

$

$

Not available

4

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

5

Toro 113428

Frame

$

$

Not available

6

Toro 111599

ASY-QUICK ATTACH B

$

$

Not available

7

Toro 110974

Lift Tab Kit (Incl. Ref. #8 & 9)

$78.99

$

Usually ships in 3-6 days

0

8

Toro 108687

NUT-LOCK 5/16-18

$1.49

$

Usually ships in 3-6 days

0

9

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

10

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

11

Toro 110156

PLATE MOWER B

$15.99

$

In Stock, only 1 left!

0

12

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

13

Toro 110155

PLATE MOWER RING B (NS)
(Superseded to 110155-03)

$53.99

$

In Stock, only 1 left!

0

14

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

15

Toro 106535

SPEED NUT 1/4-20

$

$

Not available

16

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

17

Toro 32103-19

WING NUT

$1.99

$

In Stock, only 2 left!

0

18

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

19

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

20

Toro 111380

Strap
(Superseded to 111340)

$

$

Not available

21

Toro 115963

Tube (Incl. Ref. # 18, 19 & 22)

$

$

Not available

22

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

23

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

24

Toro 78-3350

Elbow (Incl. Ref. #18, 19 & 22)

$

$

Not available

25

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

26

Toro 114383

SEAL-CHUTE

$

$

Not available

27

Toro 114382

STRAP-SEAL

$

$

Not available

28

Toro 114253

TOP-BAG'R (37")

$

$

Not available
