E5-42XR02 - Toro 42" Rear-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) 42" REAR DISCHARGE MOWER ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck

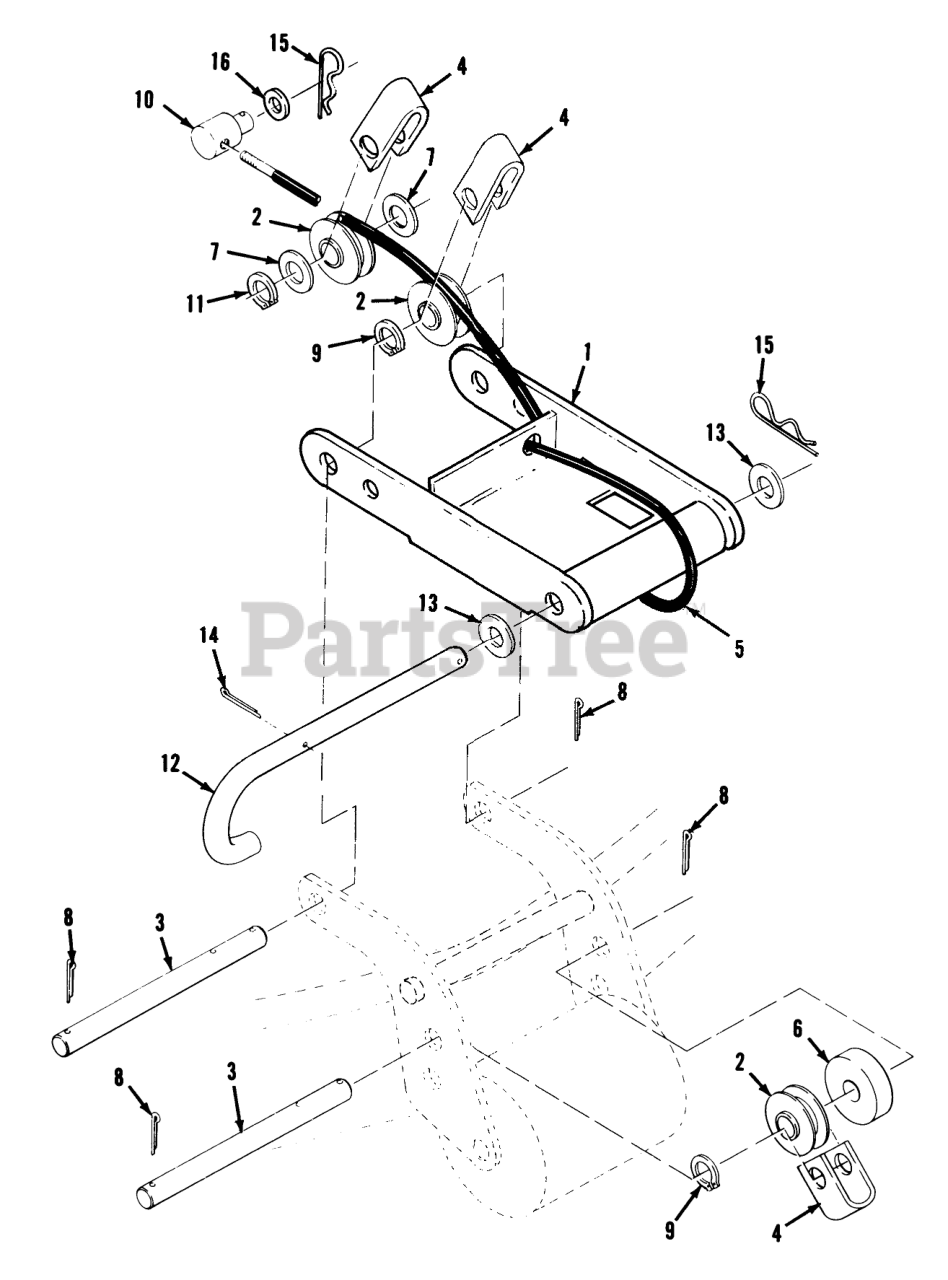

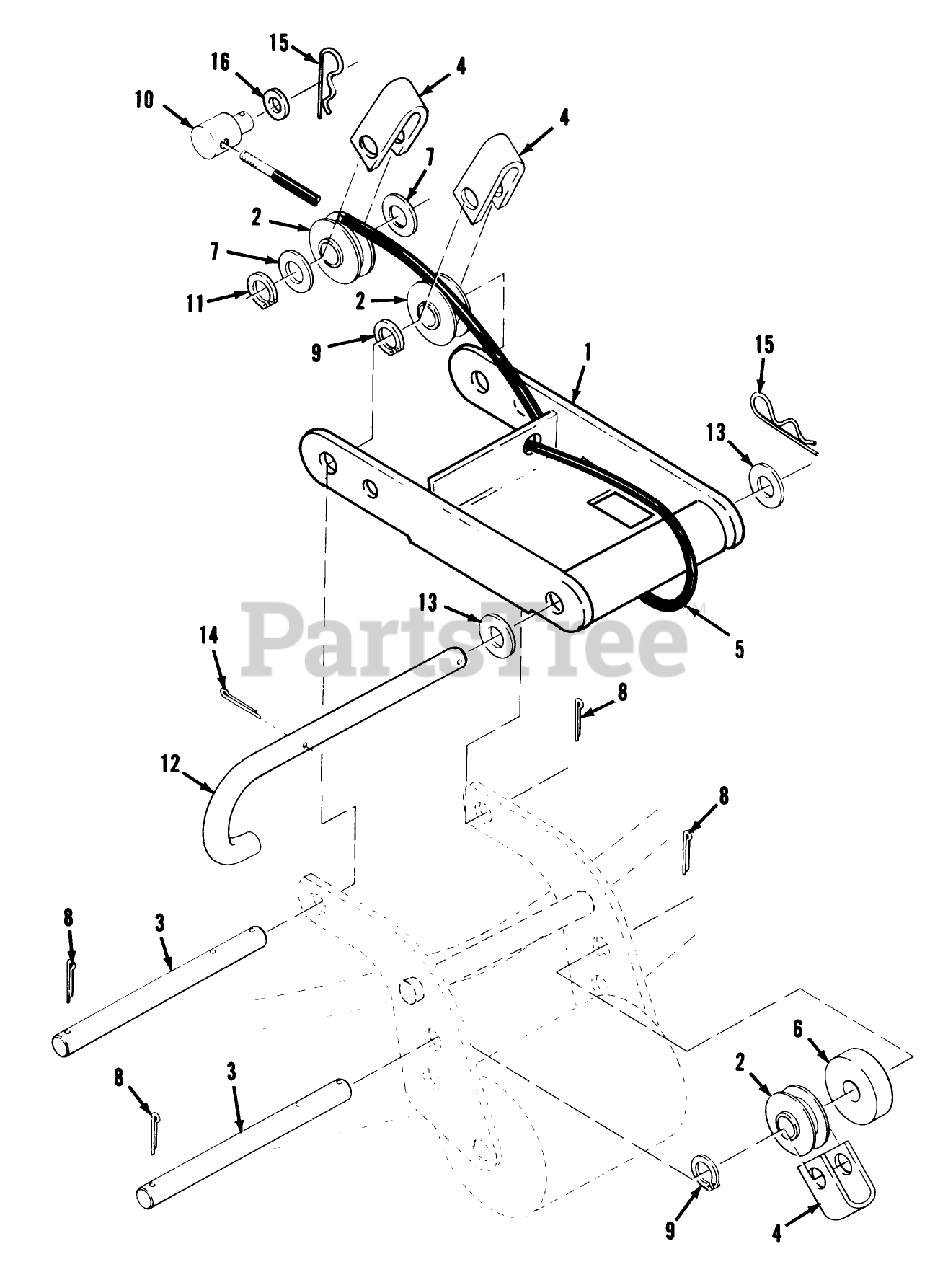

42" REAR DISCHARGE MOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 113032

ASSY-FRT MTG BRKT R

$

$

Not available

1

Toro 111129

ASSY 42" MOWER RE R
(Superseded to 111129-01)

$

$

Not available

2

Toro 106474

ROLLER-CABLE

$

$

Not available

3

Toro 110843

ROD CABLE ROLLER

$

$

Not available

4

Toro 106469

STRAP-CABLE

$

$

Not available

5

Toro 109273

ASSY-CABLE

$

$

Not available

6

Toro 106461

SPACER

$

$

Not available

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

9

Toro 106589

GRIP RING

$

$

Not available

10

Toro 110839

TRUNNION

$

$

Not available

11

Toro 106589

GRIP RING

$

$

Not available

12

$34.99

$

Usually ships in 3-6 days

0

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
