E5-42XR01 - Toro 42" Rear-Discharge Mower Deck (1988) REAR DISCHARGE MOWER-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBER E5-36XRO1 Parts Diagram

42" Rear-Discharge Mower Deck

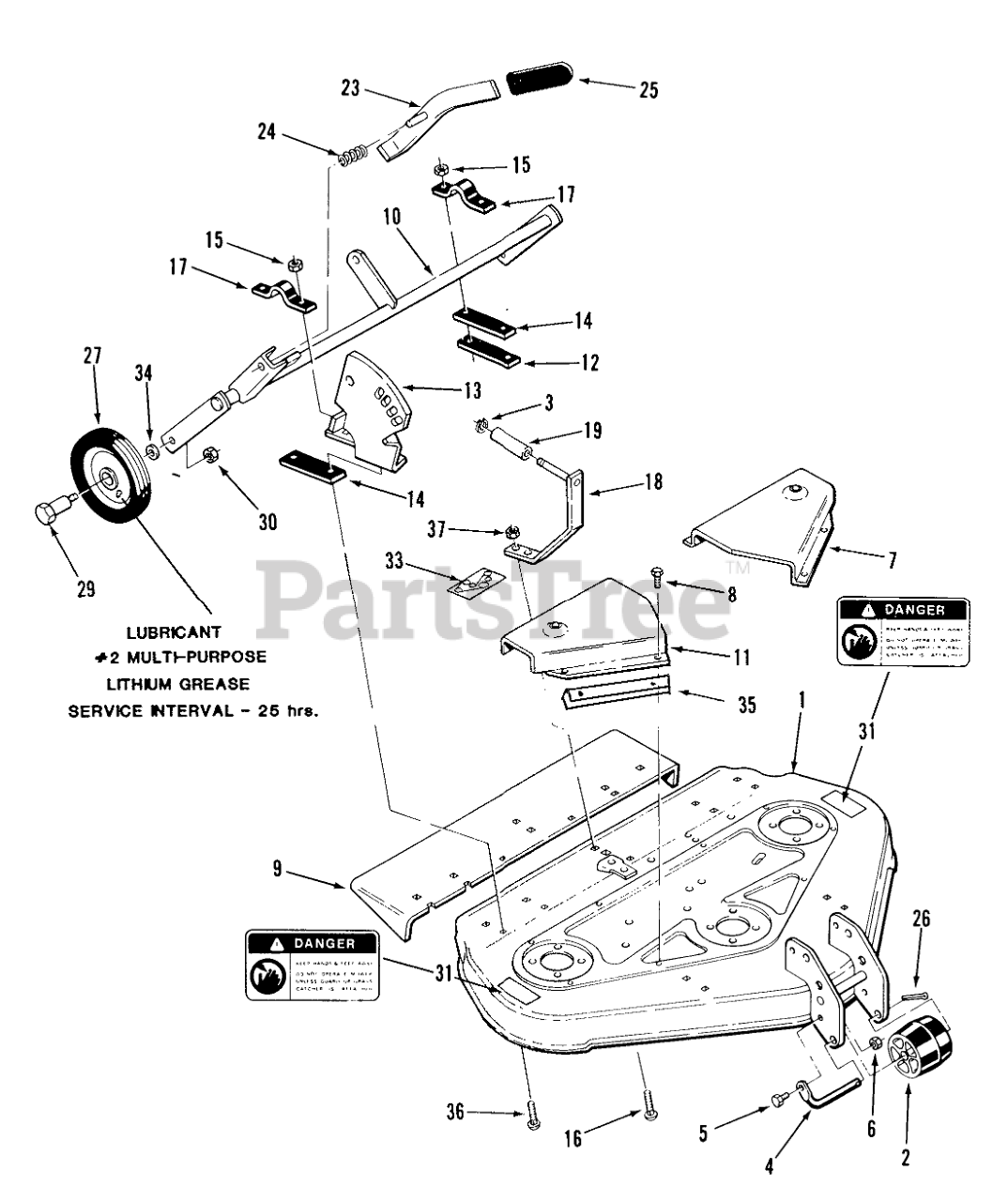

REAR DISCHARGE MOWER-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBER E5-36XRO1 Parts Diagram

  • Title
1

Toro 111122

X-REF 17-2229
(Superseded to 17-2229)

$

$

Not available

2

Toro 109376

ROLLER ASSY

$

$

Not available

3

Toro 936117

Snap Ring
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

4

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

5

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

6

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

7

Toro 107449

Cover-Belt
(Superseded to 107449-01)

$89.99

$

Usually ships in 3-6 days

0

8

Toro 913430

SCREW -4
(Superseded to 9134304)

$2.49

$

Usually ships in 3-6 days

0

9

Toro 106480

Chute Extension
(Superseded to 106480-01)

$

$

Not available

10

Toro 109374

ASSY GAGE WHEEL S R

$289.99

$

Usually ships in 3-6 days

0

11

Toro 107450

Belt Cover RH
(Superseded to 107450-01)

$

$

Not available

12

Toro 110840

Bar
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

13

Toro 111083

QUADRANT R

$

$

Not available

14

Toro 110842

STRAP 1/16 B

$

$

Not available

15

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

16

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

17

$8.99

$

Usually ships in 3-6 days

0

18

Toro 109460

ASSY BRACKET GUID R

$70.99

$

Usually ships in 3-6 days

0

19

Toro 106383

SPACER

$

$

Not available

23

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

24

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

25

$1.99

$

Usually ships in 3-6 days

0

26

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, only 3 left!

0

27

Toro 109375

WHEEL ASM

$

$

Not available

29

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 6

0

30

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

31

Toro 111188

Danger Decal
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

33

Toro 106749

DECAL-HEIGHT BELT

$

$

Not available

34

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

35

Toro 109465

BAR R

$

$

Not available

36

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

37

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0
