E5-42MS01 - Toro 42" Side-Discharge Mower Deck (1988) REAR DISCHARGE MOWER-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBER E5-36MR01 Parts Diagram

42" Side-Discharge Mower Deck

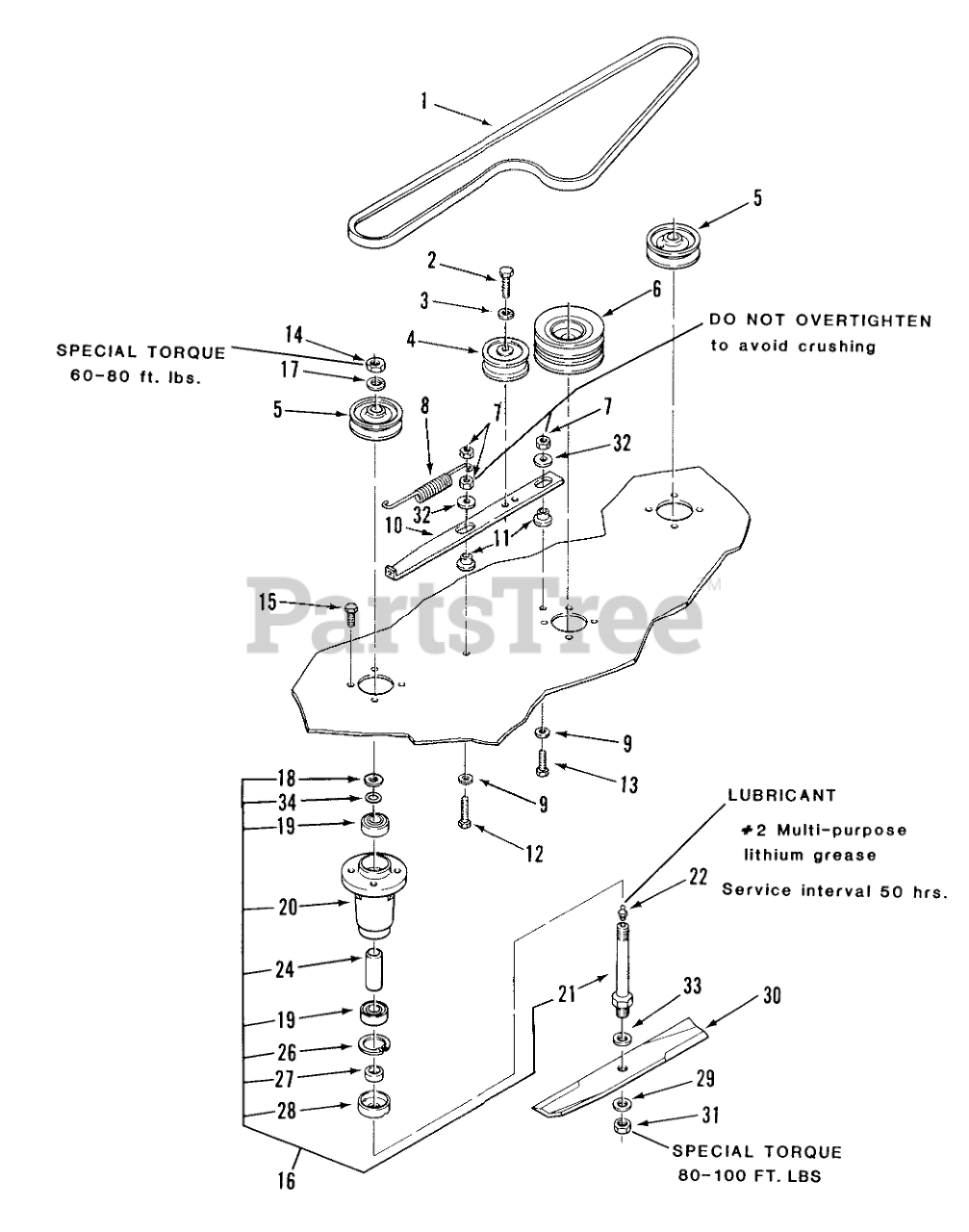

REAR DISCHARGE MOWER-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBER E5-36MR01 Parts Diagram

  • Title
1

Toro 8411

V-BELT

$28.99

$

In Stock, only 1 left!

0

2

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

3

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

4

Toro 112426

PULLEY-IDLER

$26.99

$

In Stock, only 1 left!

0

5

Toro 109967

PULLEY

$80.99

$

In Stock, only 1 left!

0

6

Toro 109991

PULLEY CENTER

$

$

Not available

7

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

8

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

10

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

11

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 9150894

X-REF 3220-6
(Superseded to 3220-6)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$1.49

$

In Stock, Qty 12

0

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

16

Toro 109964

ASSY 36" SPINDLE

$

$

Not available

17

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

18

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 5

0

19

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

20

Toro 107448

HOUSING-SPINDLE

$

$

Not available

21

Toro 112673

SHAFT-SPINDLE

$155.99

$

Usually ships in 3-6 days

0

22

Toro 1030

Zerk

$

$

Not available

24

Toro 110088

Spacer
(Superseded to 116115)

$27.99

$

Usually ships in 3-6 days

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

27

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

29

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$7.49

$

In Stock, Qty 6

0

30

Toro 107983

S/A BLADE KIT

$155.99

$

Usually ships in 3-6 days

0

31

Toro 9150904

X-REF 3220-7
(Superseded to 3220-7)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$4.49

$

In Stock, Qty 5

0

32

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

33

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

34

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0
