E4500 K1 A (E4500) - Honda Generator, Made in Japan (SN: E4500-1000005 - E4500-1020560) ROTOR + STATOR + PULLEY Parts Diagram

Generator, Made in Japan

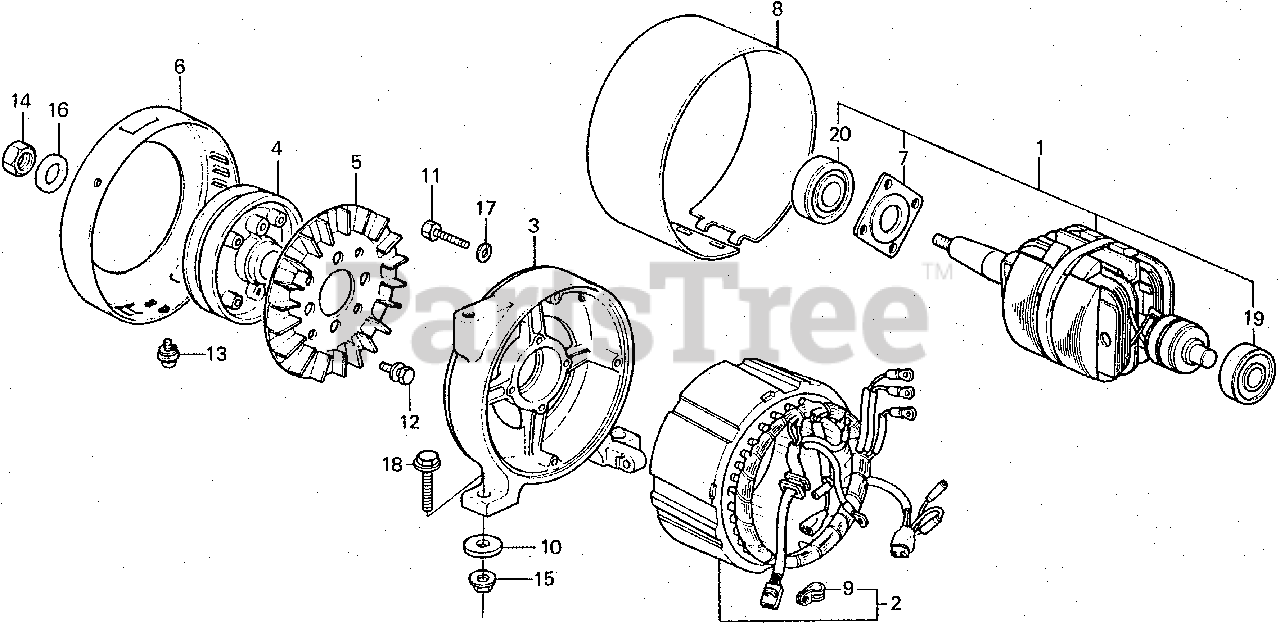

ROTOR + STATOR + PULLEY Parts Diagram

  • Title

1

Honda 31104-893-003

ROTOR

$

$

Not available

2

Honda 31105-893-682

STATOR (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 31106-880-000XC

SEE PART DETAILS - SUP; HOUSING, FR. *NH31* (MCKINLEY WHITE)
(Superseded to 31106-880-010XC)

Note: Use up to Frame SN 1125330.

$

$

Not available

3

Honda 31106-880-010XC

SEE PART DETAILS - PRI; HOUSING, FR. *NH31* (MCKINLEY WHITE)

$

$

Not available

4

Honda 31111-880-000B

PULLEY, ALTERNATOR (135MM) *NH1* (BLACK)

$

$

Not available

5

Honda 31112-880-000

FAN

$

$

Not available

6

Honda 31114-880-000XC

COVER, FAN *NH31* (MCKINLEY WHITE)

$

$

Not available

7

Honda 31116-880-000

PLATE, BEARING SETTING

$

$

Not available

8

Honda 31127-893-000XC

COVER, STATOR *NH31* (MCKINLEY WHITE)

$

$

Not available

9

Honda 31191-880-000

CLIP, WIRE

$

$

Not available

10

Honda 90501-579-020

WASHER, EX. MANIFOLD

$7.49

$

Usually ships in 3-6 days

0

11

Honda 92000-05032-0A

BOLT, HEX. (5X32) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 93411-06012-08

BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 93893-05010-08

SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 94001-18080-0S

NUT, HEX. (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

16

Honda 94101-18800

WASHER, FLAT (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 95701-10032-00

BOLT, FLANGE (10X32)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 96150-63040-10

BEARING, RADIAL BALL (6304UU)

$24.99

$

Usually ships in 3-6 days

0

20

Honda 96150-63060-10

BEARING, RADIAL BALL (6306UU)

$52.99

$

Usually ships in 3-6 days

0
