E4500 K1 A (E4500) - Honda Generator, Made in Japan (SN: E4500-1000005 - E4500-1020560) CAMSHAFT Parts Diagram

Generator, Made in Japan

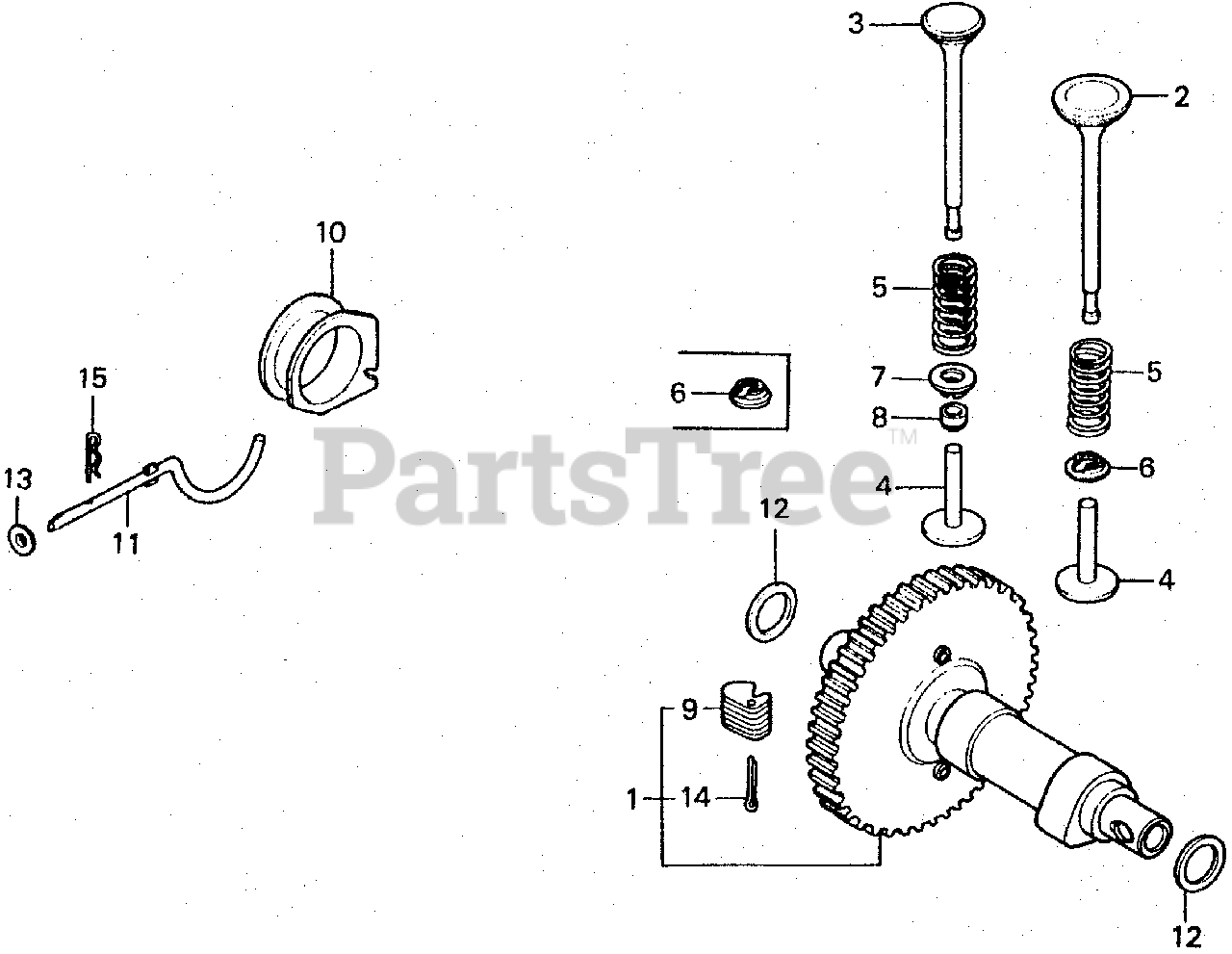

CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-890-040

CAMSHAFT ASSY.

$

$

Currently unavailable

2

Honda 14711-890-000

VALVE, IN.

$41.99

$

In Stock, only 1 left!

0

3

Honda 14721-ZA1-000

SEE PART DETAILS - PRI; VALVE, EX.

$70.99

$

Usually ships in 3-6 days

0

3

Honda 14721-890-600

SEE PART DETAILS - SUP; VALVE, EX.

$70.99

$

Usually ships in 3-6 days

0

4

Honda 14732-889-000

LIFTER, VALVE (45.89MM)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14737-889-000

LIFTER, VALVE (46.04MM)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14742-889-000

LIFTER, VALVE (46.19MM)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14747-889-000

LIFTER, VALVE (46.34MM)

$22.99

$

Usually ships in 3-6 days

0

5

Honda 14751-890-000

SPRING, VALVE

$4.49

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

RETAINER, VALVE SPRING

$13.99

$

Usually ships in 3-6 days

0

7

Honda 14771-889-000

RETAINER, VALVE SPRING

$4.49

$

Usually ships in 3-6 days

0

8

Honda 14781-890-000

ROTATOR, EX. VALVE

$

$

Not available

9

Honda 16511-883-300

WEIGHT, GOVERNOR

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-890-000

SLIDER, GOVERNOR

$37.99

$

Usually ships in 3-6 days

0

11

Honda 16541-889-610

SHAFT, GOVERNOR

$13.99

$

Usually ships in 3-6 days

0

12

Honda 90452-883-000

WASHER, THRUST (18MM)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

14

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94251-10400

PIN, LOCK (10MM)

$1.99

$

Usually ships in 3-6 days

0
