E4500 A (E4500) - Honda Generator, Made in Japan (SN: E4500-1000006 - E4500-1020225) RECOIL STARTER Parts Diagram

Generator, Made in Japan

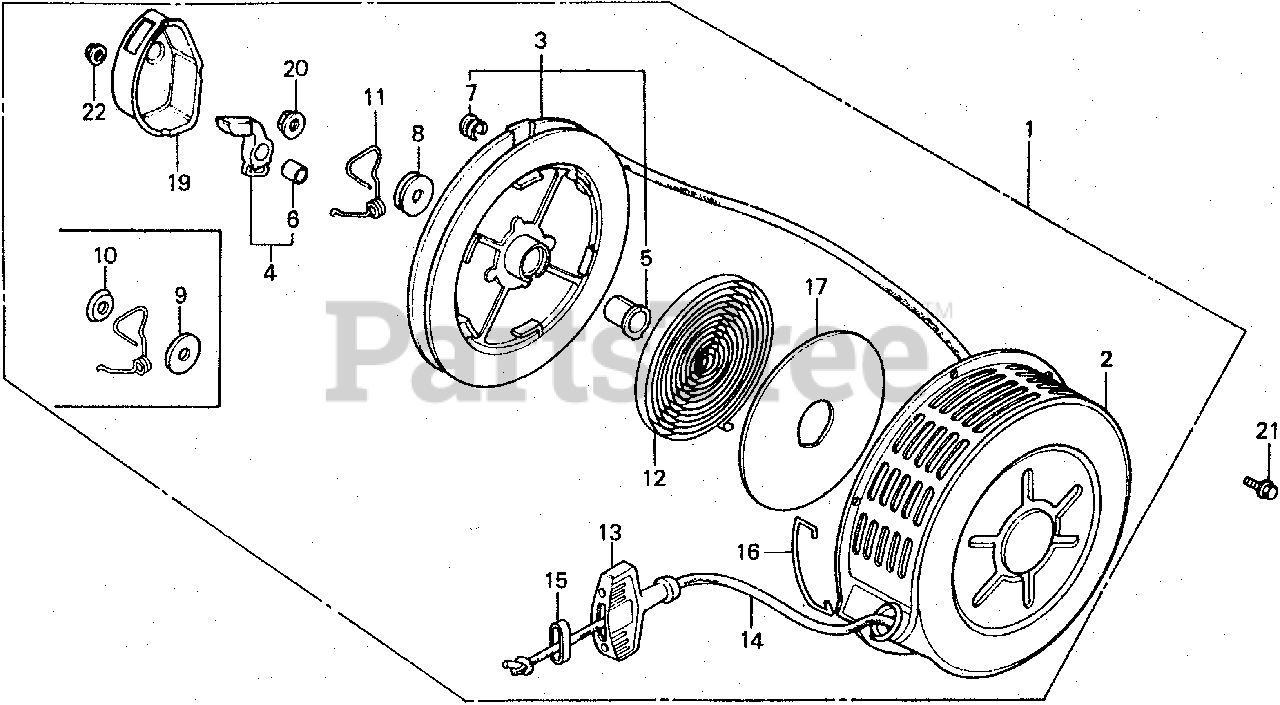

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-890-030ZD

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$

$

Not available

2

Honda 28410-890-010ZC

SEE PART DETAILS - PRI; CASE, STARTER *R8* (BRIGHT RED)

$

$

Currently unavailable

3

Honda 28420-890-010

REEL, STARTER

$

$

Currently unavailable

4

Honda 28422-890-003

RATCHET

$11.99

$

Usually ships in 3-6 days

0

5

Honda 28424-890-310

BOSS, REEL

$

$

Not available

6

Honda 28425-890-300

BUSH, RATCHET

$4.49

$

Usually ships in 3-6 days

0

7

Honda 28427-883-300

BUSH, REEL STARTER

$5.99

$

Usually ships in 3-6 days

0

9

Honda 28430-890-000

PLATE, FRICTION

$

$

Not available

10

Honda 28430-890-000

PLATE, FRICTION

$

$

Not available

11

Honda 28441-890-020

SPRING, FRICTION

$

$

Not available

12

Honda 28442-890-000

SPRING, RETURN

$34.99

$

Usually ships in 3-6 days

0

13

Honda 28461-883-000

GRIP, STARTER

$11.99

$

In Stock, only 1 left!

0

14

Honda 28462-890-010

ROPE, STARTER (#6X64")

$

$

Not available

15

Honda 28463-883-000

SUPPORT, GRIP

$3.99

$

Usually ships in 3-6 days

0

16

Honda 28466-890-010

HOLDER, ROPE (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 28467-890-000

PLATE, SIDE

$

$

Currently unavailable

19

Honda 28474-890-010

COVER, REEL STARTER

$

$

Currently unavailable

20

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

$2.49

$

In Stock, Qty 5

0

22

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 5

0
