E4500 A (E4500) - Honda Generator, Made in Japan (SN: E4500-1000006 - E4500-1020225) MUFFLER Parts Diagram

Generator, Made in Japan

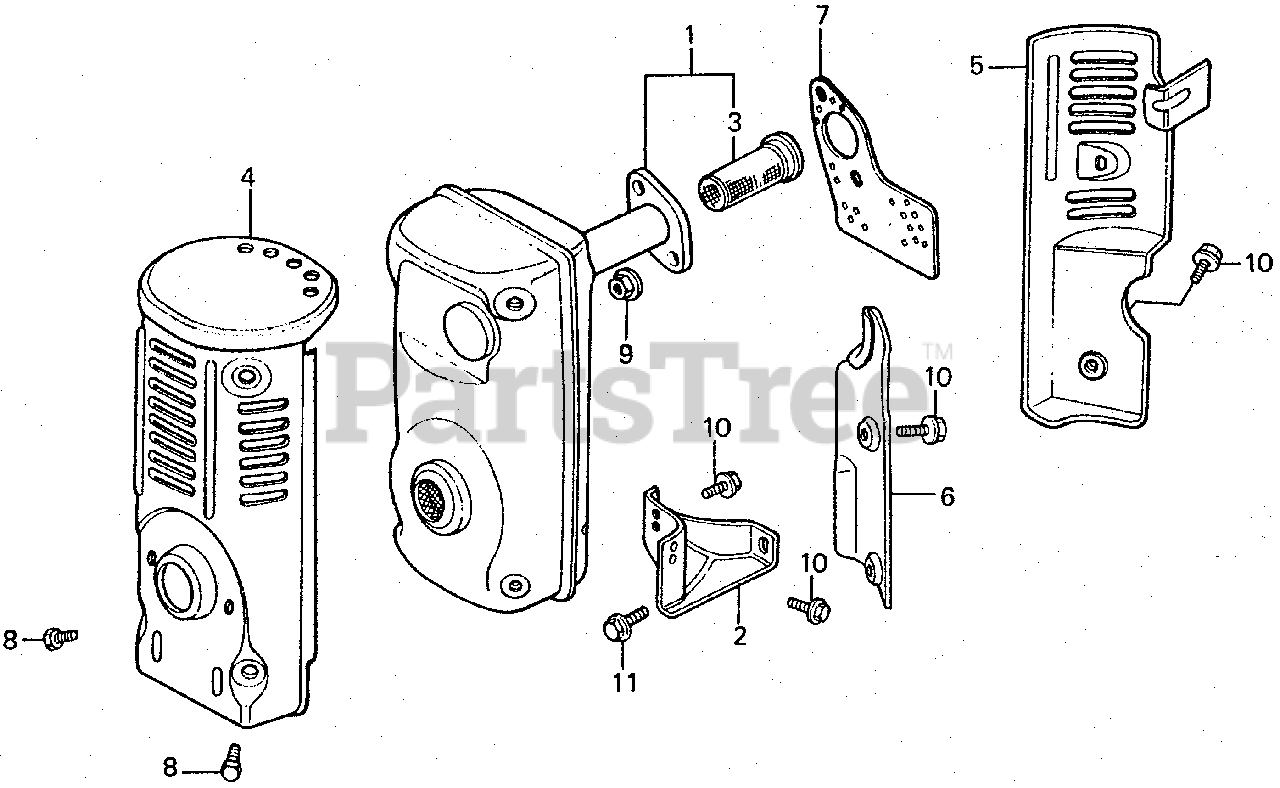

MUFFLER Parts Diagram

  • Title

1

Honda 18310-893-691

SEE PART DETAILS - SUP; MUFFLER

Note: Use up to Engine SN 1008773.

$

$

Not available

1

Honda 18310-893-692

MUFFLER

Note: Use from Engine SN 1008774 to 1010893.

$

$

Currently unavailable

1

Honda 18310-893-693

MUFFLER

Note: Use from Engine SN 1010894 to 1059081.

$

$

Currently unavailable

1

Honda 18310-893-694

MUFFLER

Note: Use from Engine SN 1059082 to 1071059.

$

$

Currently unavailable

1

Honda 18310-893-695

MUFFLER

Note: Use from Engine SN 1071060 to 1086908.

$

$

Currently unavailable

1

Honda 18310-893-696

SEE PART DETAILS - PRI; MUFFLER (NOT AVAILABLE)

Note: Use from Engine SN 1086909.

$

$

Currently unavailable

2

Honda 18320-890-731

STAY, MUFFLER

$

$

Not available

3

Honda 18335-890-000

ARRESTER, SPARK

$

$

Not available

4

Honda 18361-890-730

PROTECTOR A, MUFFLER

$

$

Not available

5

Honda 18365-890-730

PROTECTOR B, MUFFLER

$

$

Not available

6

Honda 18367-893-000

PROTECTOR C, MUFFLER

$

$

Currently unavailable

7

Honda 18381-890-306

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-890-800)

$

$

Not available

7

Honda 18381-890-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$

$

Not available

8

Honda 90003-890-000

BOLT-WASHER (6X10)

Note: Use from Engine SN 1071060.

$

$

Currently unavailable

8

Honda 92100-06008-0B

SEE PART DETAILS - SUP; BOLT, HEX. (6X8)

Note: Use up to Engine SN 1071059.

$

$

Currently unavailable

8

Honda 92101-06008-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X8)

Note: Use up to Engine SN 1071059.

$2.49

$

Usually ships in 3-6 days

0

9

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 19

0

10

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

11

Honda 95701-08014-08

BOLT, FLANGE (8X14)

Note: Use up to Engine SN 1086381.

$2.49

$

Usually ships in 3-6 days

0

11

Honda 95701-08016-08

BOLT, FLANGE (8X16)

Note: Use from Engine SN 1086382.

$2.49

$

In Stock, only 3 left!

0
