E4500 A (E4500) - Honda Generator, Made in Japan (SN: E4500-1000006 - E4500-1020225) E4500 CARBURETOR K0-K1 Parts Diagram

Generator, Made in Japan

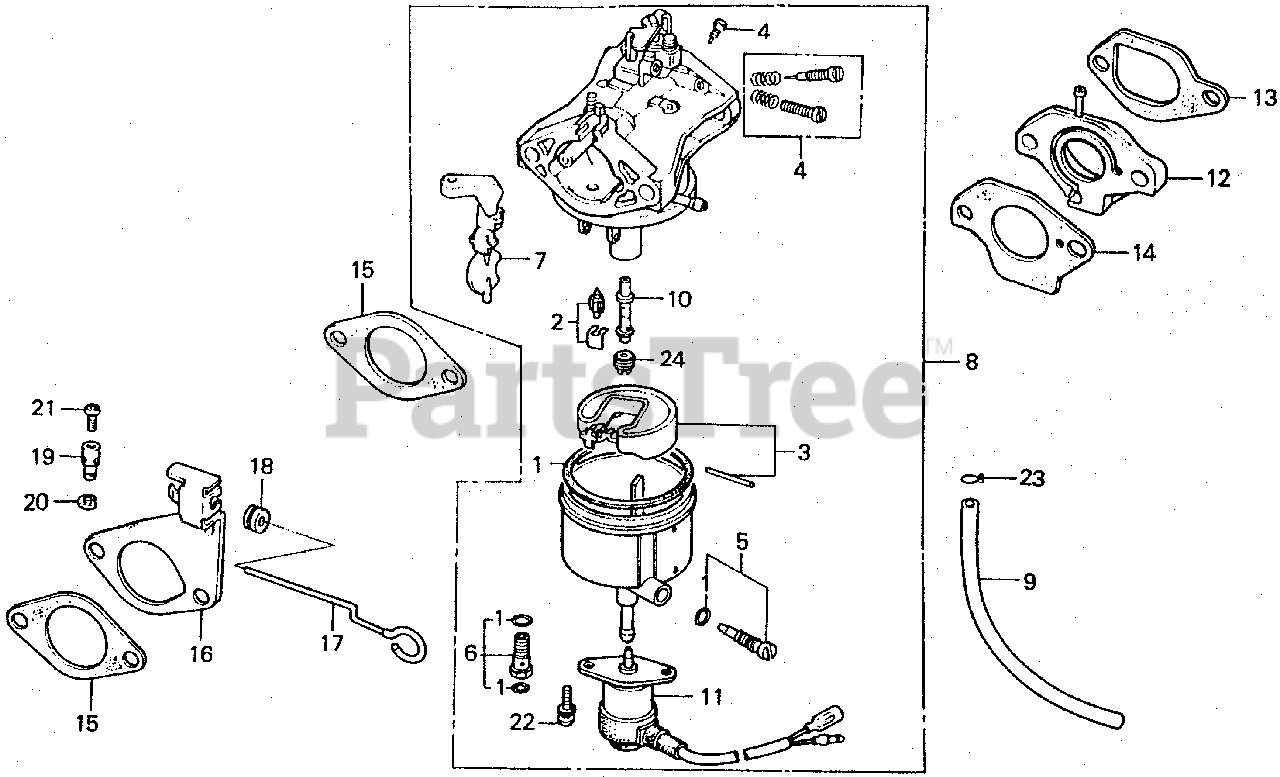

E4500 CARBURETOR K0-K1 Parts Diagram

  • Title

1

Honda 16010-890-731

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-890-733)

Note: Use up to Engine SN BB36A B.

$27.99

$

In Stock, only 1 left!

0

1

Honda 16010-890-733

SEE PART DETAILS - PRI; GASKET SET

Note: Use up to Engine SN BB36A B.

$27.99

$

In Stock, only 1 left!

0

1

Honda 16010-890-733

SEE PART DETAILS - PRI; GASKET SET

Note: Use from Engine SN BB36B A.

$27.99

$

In Stock, only 1 left!

0

2

Honda 16011-382-004

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-KCK-910)

$48.99

$

In Stock, only 3 left!

0

3

Honda 16013-890-015

FLOAT SET

$42.99

$

Usually ships in 3-6 days

0

4

Honda 16016-728-631

SCREW SET A

Note: Use from Engine SN BB36A B to BB36A B.

$

$

Currently unavailable

4

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use from Engine SN BB36B B.

$

$

Currently unavailable

4

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use up to Engine SN BB36A A.

$

$

Currently unavailable

4

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A

Note: Use from Engine SN BB36B B.

$

$

Not available

4

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A

Note: Use up to Engine SN BB36A A.

$

$

Not available

4

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A

Note: Use from Engine SN BB36B A to BB36B A.

$

$

Not available

5

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

Note: Use from Engine SN BB36B A.

$15.99

$

Usually ships in 3-6 days

0

5

Honda 16024-890-731

SCREW SET, DRAIN

Note: Use up to Engine SN BB36A B.

$

$

Not available

6

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET

Note: Use from Engine SN BB36B A.

$30.99

$

In Stock, only 3 left!

0

6

Honda 16028-890-731

SCREW SET B (NOT AVAILABLE)

Note: Use up to Engine SN BB36A B.

$

$

Currently unavailable

6

Honda 16028-890-781

SEE PART DETAILS - SUP; SCREW SET B

Note: Use from Engine SN BB36B A.

$

$

Currently unavailable

7

Honda 16044-890-005

CHOKE SET

$

$

Not available

8

Honda 16100-890-782

CARBURETOR ASSY. (BB36A A) (NOT AVAILABLE)

Note: Use up to Engine SN 1063041.

$

$

Currently unavailable

8

Honda 16100-890-783

CARBURETOR ASSY. (BB36A B) (NOT AVAILABLE)

Note: Use from Engine SN 1063042 to 1076509.

$

$

Currently unavailable

8

Honda 16100-890-789

CARBURETOR ASSY.

Note: Use from Engine SN 1076510.

$

$

Not available

9

Honda 16150-880-000

TUBE, DRAIN

Note: Use from Engine SN 1086490.

$

$

Not available

10

Honda 16166-890-005

NOZZLE, MAIN (NOT AVAILABLE)

Note: Use up to Engine SN BB36A B.

$

$

Not available

10

Honda 16166-890-731

NOZZLE, MAIN

Note: Use from Engine SN BB36B A.

$

$

Not available

11

Honda 16200-880-023

VALVE ASSY., SOLENOID (NOT AVAILABLE)

Note: Use up to Engine SN BB36A B.

$

$

Currently unavailable

11

Honda 16200-890-005

VALVE ASSY., SOLENOID

Note: Use from Engine SN BB36B A.

$

$

Not available

12

Honda 16211-893-000

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Not available

13

Honda 16212-890-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16212-890-800)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 16212-890-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$1.49

$

Usually ships in 3-6 days

0

14

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-890-800)

$2.99

$

In Stock, only 4 left!

0

14

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, only 4 left!

0

15

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

$1.99

$

In Stock, only 3 left!

0

15

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, only 3 left!

0

16

Honda 16598-889-731

STAY, CHOKE CONTROL

$

$

Not available

17

Honda 16611-889-730

ROD, CHOKE CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 16613-890-000

GROMMET, CHOKE ROD

$2.99

$

Usually ships in 3-6 days

0

19

Honda 16617-890-010

HOLDER, CABLE

$9.49

$

Usually ships in 3-6 days

0

20

Honda 90605-230-000

CIRCLIP (5MM)

$4.49

$

In Stock, only 2 left!

0

21

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 3 left!

0

22

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.99

$

In Stock, Qty 13

0

23

Honda 95002-50000

CLIP, TUBE (C9)

Note: Use from Engine SN 1086490.

$1.99

$

In Stock, Qty 20+

0

24

Honda 99101-124-0920

JET, MAIN (#92)

Note: Use up to Engine SN BB36A B.

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0920

JET, MAIN (#92) Use from Engine SN BB36B A.

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0980

JET, MAIN (#98)

Note: Use from Engine SN BB36B A.

$14.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-1000

JET, MAIN (#100)

Note: Use from Engine SN BB36B A.

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-1020

JET, MAIN (#102)

Note: Use from Engine SN BB36B A.

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0800

JET, MAIN (#80)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0820

JET, MAIN (#82)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0850

JET, MAIN (#85)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0880

JET, MAIN (#88)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0900

JET, MAIN (#90)

$12.99

$

Usually ships in 3-6 days

0
