E4500 A (E4500) - Honda Generator, Made in Japan (SN: E4500-1000006 - E4500-1020225) DIAPHRAGM Parts Diagram

Generator, Made in Japan

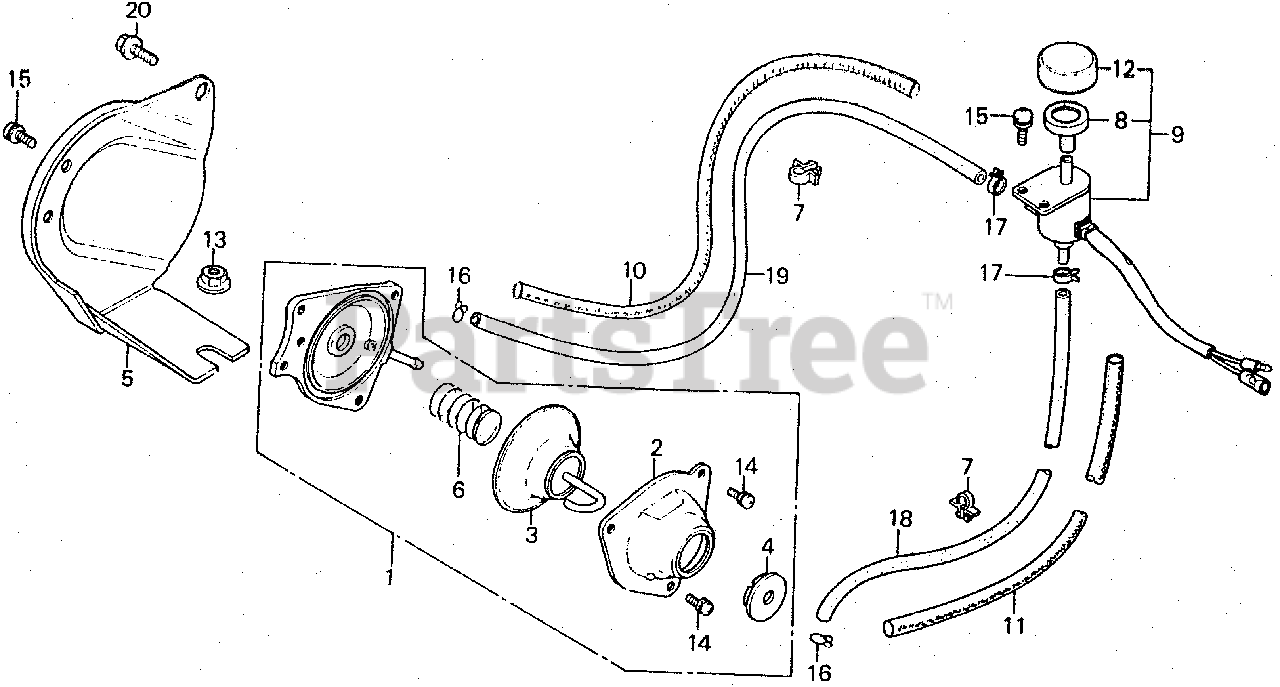

DIAPHRAGM Parts Diagram

  • Title

1

Honda 16020-893-000

DIAPHRAGM ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16022-893-000

COVER, DIAPHRAGM

$

$

Not available

3

Honda 16025-893-010

DIAPHRAGM

$

$

Currently unavailable

4

Honda 16027-893-000

BUSH, DIAPHRAGM COVER

$

$

Not available

5

Honda 16031-893-010

STAY, DIAPHRAGM

$

$

Not available

6

Honda 16051-893-000

SPRING, COIL

$

$

Not available

7

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

8

Honda 36138-PM1-G01

SEE PART DETAILS - PRI; FILTER ASSY., SOLENOID VALVE

$

$

Not available

9

Honda 36160-893-013

SEE PART DETAILS - SUP; VALVE ASSY., CONTROL

$

$

Currently unavailable

10

Honda 36162-893-010

TUBE (8X680)

$

$

Currently unavailable

11

Honda 36163-893-010

TUBE (8X470)

$

$

Currently unavailable

12

Honda 38776-671-000

CAP, AIR FILTER

$

$

Not available

13

Honda 90234-147-000

NUT, FLANGE (8MM)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 93892-04008-08

SCREW-WASHER (4X8)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 93892-05012-00

SCREW-WASHER (5X12)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

17

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0

18

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X490)

$14.99

$

Usually ships in 3-6 days

0

19

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X700)

$14.99

$

Usually ships in 3-6 days

0

20

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
