E4500 A (E4500) - Honda Generator, Made in Japan (SN: E4500-1000006 - E4500-1020225) C.D.I. UNIT + EXCITER COIL Parts Diagram
Generator, Made in Japan

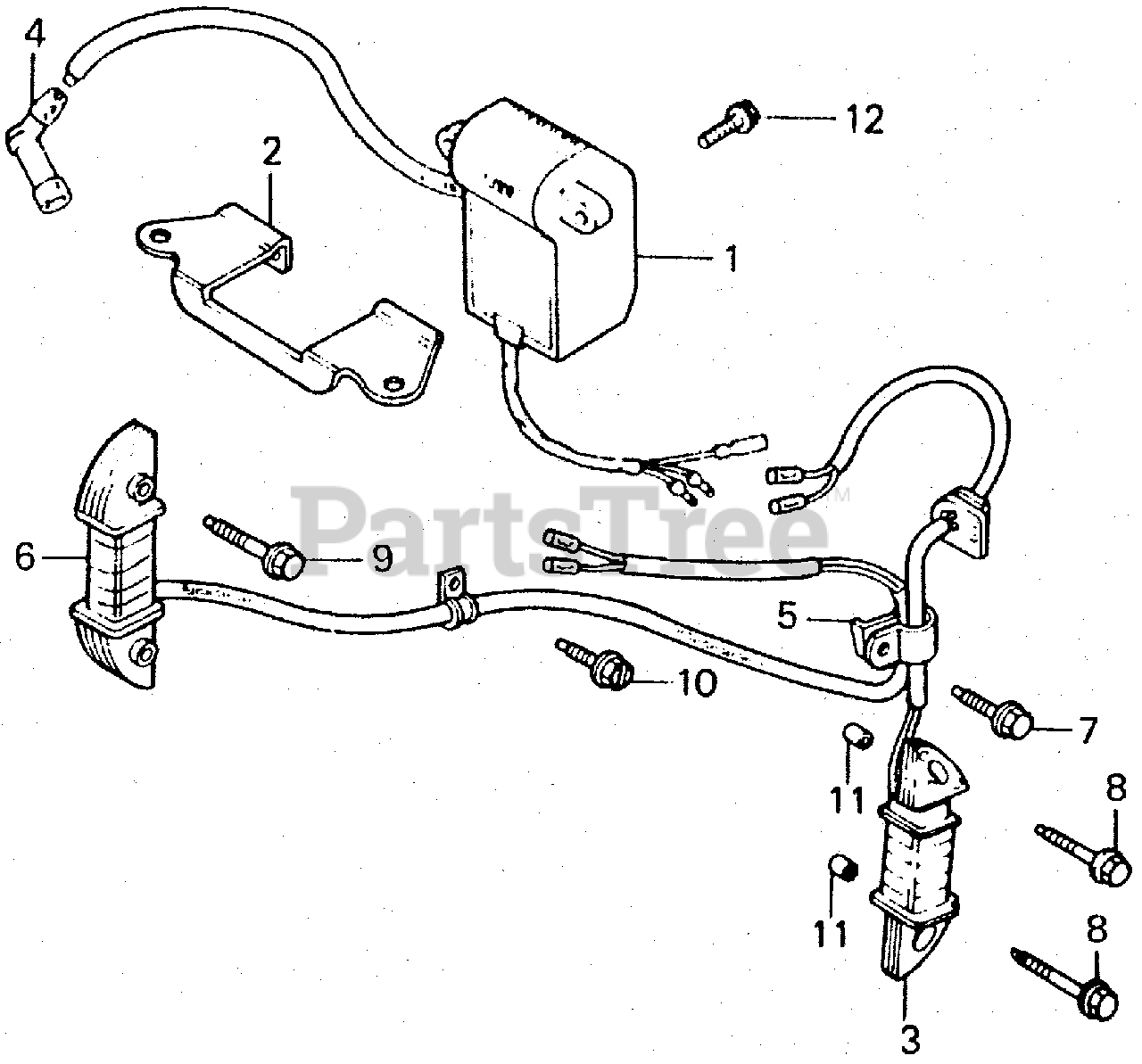

C.D.I. UNIT + EXCITER COIL Parts Diagram
Honda 30580-890-732
MODULE, IGNITION CONTROL (CDI)
$
$
Not available
Honda 30586-889-730
STAY, IGNITION CONTROL MODULE
$12.99
$
Usually ships in 3-6 days
Honda 30590-889-732
COIL ASSY., EXCITER
$
$
Not available
Honda 30700-890-000
SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR
(Superseded to 30700-890-013)
Note: Use up to Engine SN 1078889.
$
$
Not available
Honda 30700-890-013
SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR
$
$
Not available
Honda 30702-890-000
CLAMP, IGNITION WIRE
$6.99
$
Usually ships in 3-6 days
Honda 90013-883-000
BOLT, FLANGE (6X12) (CT200)
$1.99
$
In Stock, Qty 20+
Honda 90015-883-000
BOLT, FLANGE (6X28)
$3.99
$
In Stock, Qty 8
Honda 94301-08140
PIN, DOWEL (8X14)
$2.99
$
In Stock, Qty 8
Honda 95700-06012-08
SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
$
$
Currently unavailable
Honda 95701-06012-08
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)
$2.49
$
In Stock, only 1 left!
