E40 A (GE40) - Honda Generator, Made in Japan (SN: GE40-10001 - GE40-99999) COVER + TOOLS Parts Diagram

Generator, Made in Japan

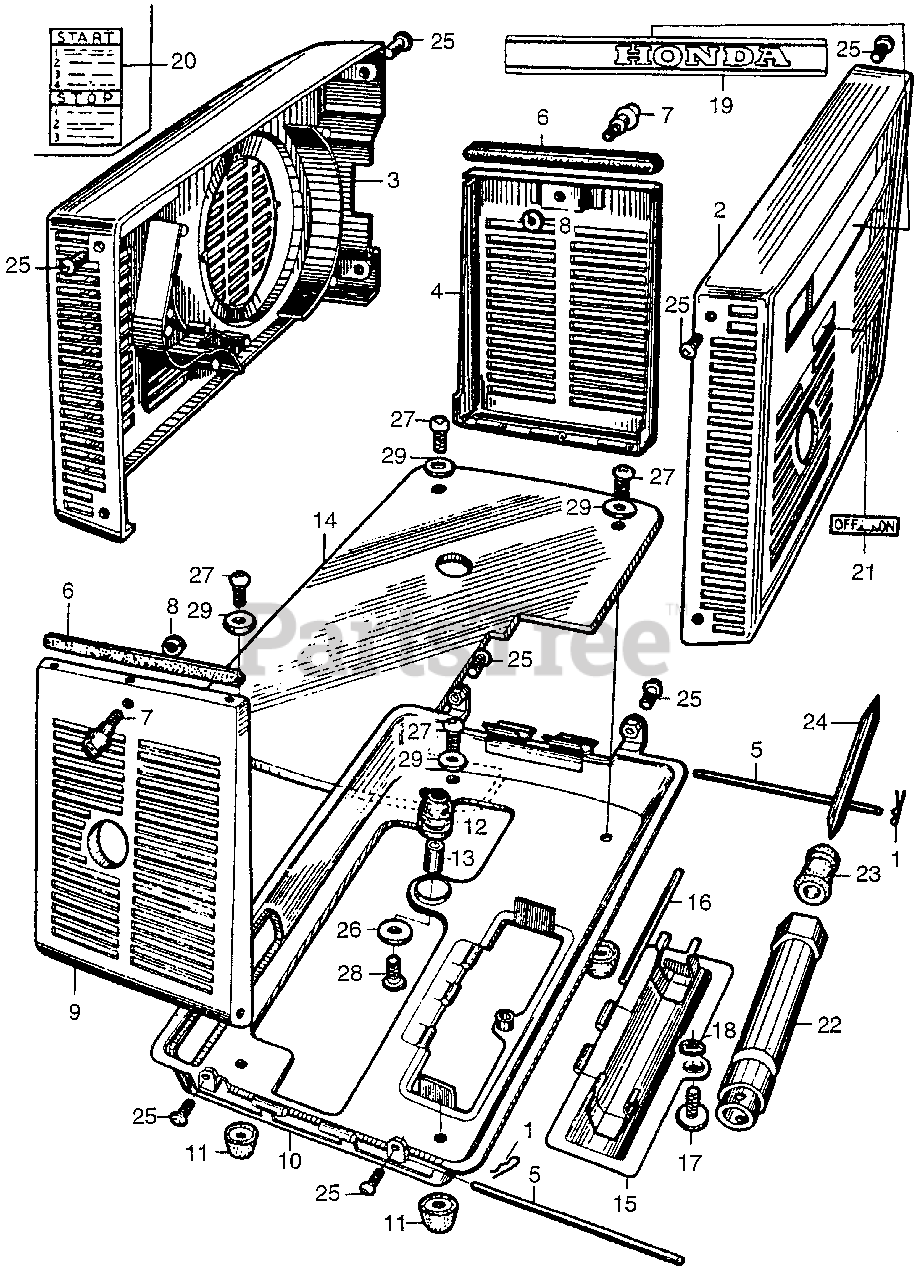

COVER + TOOLS Parts Diagram

  • Title

1

Honda 17669-800-000

PIN, SNAP (3MM) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 63311-801-000

COVER A, SIDE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 63410-801-000

COVER B, SIDE (NOT AVAILABLE)

$

$

Not available

4

Honda 63511-801-010T

PLATE A, SIDE *NH2M* (METALLIC SILVER) (NOT AVAILABLE)

$

$

Not available

5

Honda 63551-801-000

SHAFT, SIDE PLATE HINGE (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 63571-801-010

RUBBER, TANK SEAL (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 63581-801-000

LATCH, SIDE PLATE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 63588-801-000

STOPPER, LATCH (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 63611-801-010

PLATE B, SIDE (NOT AVAILABLE)

$

$

Not available

10

Honda 63710-801-000

PLATE (LOWER) (NOT AVAILABLE)

$

$

Not available

11

Honda 63770-801-000

RUBBER (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 63772-801-000

RUBBER, PLATE SETTING (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 63773-801-000

COLLAR, PLATE SETTING (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 63811-801-000

PLATE, SEPARATE (NOT AVAILABLE)

$33.99

$

Usually ships in 3-6 days

0

15

Honda 83111-814-000

COVER, TOOL (NOT AVAILABLE)

$

$

Not available

16

Honda 83141-801-000

SHAFT, TOOL COVER (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 83142-801-000

BOLT, TOOL COVER HINGE (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 91301-MC0-000

O-RING (3.6X1.4) (NOT AVAILABLE)

$

$

Not available

19

Honda 87101-801-000

MARK, TOP (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 87521-801-600

PLATE, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 87401-801-000

MARK, VALVE LEVER (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 89216-800-000

WRENCH, PLUG (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 89218-800-000

RUBBER, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 89221-800-000

SCREWDRIVER (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 90193-801-000

SCREW, SIDE COVER SETTING (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 90483-041-000

SEE PART DETAILS - PRI; WASHER, STOPPER

$2.49

$

Usually ships in 3-6 days

0

27

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

28

Honda 93500-05025-0A

SCREW, PAN (5X25)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94101-04000

WASHER, PLAIN (4MM)

$1.49

$

In Stock, only 1 left!

0
