E300 K2 A (GE300) - Honda Generator, Made in Japan (SN: GE300-2001601 - GE300-2146675) STARTER PULLEY + RECOIL STARTER Parts Diagram

Generator, Made in Japan

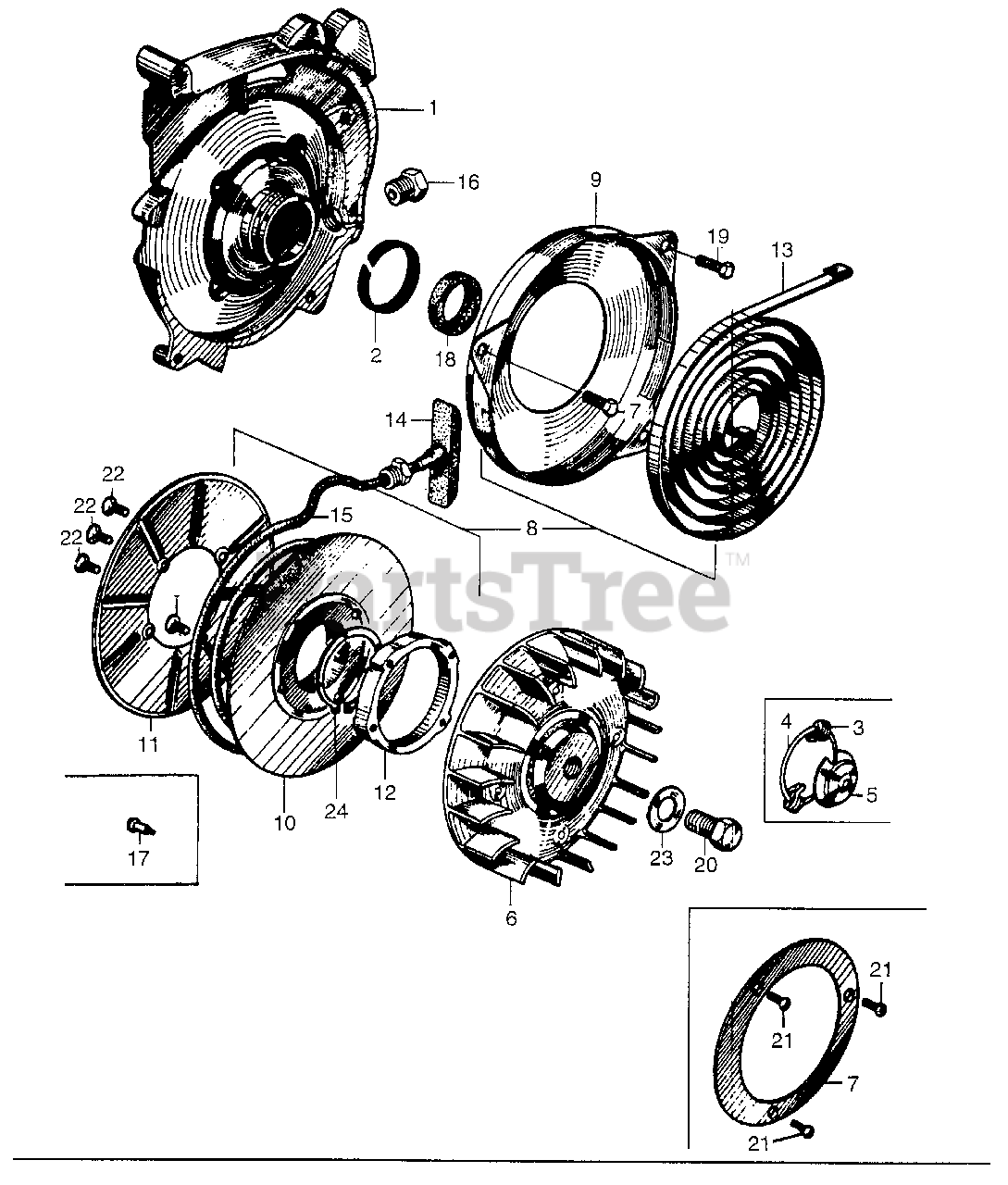

STARTER PULLEY + RECOIL STARTER Parts Diagram

  • Title

1

Honda 11401-836-010

CASE, STARTER

Note: Use from Frame SN 1106001.

$

$

Currently unavailable

2

Honda 11511-836-000

FELT (4.5MM)

Note: Use from Frame SN 1106001.

$

$

Currently unavailable

6

Honda 19510-836-010

FAN, COOLING

$

$

Currently unavailable

8

Honda 28400-836-000

STARTER ASSY., RECOIL (NOT AVAILABLE)

$

$

Not available

9

Honda 28410-836-000

CASE, SPRING (NOT AVAILABLE)

Note: Use from Frame SN 1106001.

$

$

Not available

10

Honda 28420-836-000

PULLEY, STARTER

Note: Use from Frame SN 1106001.

$

$

Not available

11

Honda 28425-836-000

PLATE, STARTER (NOT AVAILABLE)

Note: Use from Frame SN 1106001.

$

$

Currently unavailable

12

Honda 28441-836-003

SEE PART DETAILS - PRI; RATCHET, STARTER (NOT AVAILABLE)

Note: Use from Frame SN 1106001.

$

$

Currently unavailable

13

Honda 28450-836-000

SPRING, STARTER RETURN

Note: Use from Frame SN 1106001.

$

$

Currently unavailable

15

Honda 28471-836-000

SEE PART DETAILS - SUP; ROPE, STARTER (#5.5X79")

$

$

Not available

16

Honda 28475-836-000

GUIDE, ROPE (NOT AVAILABLE)

Note: Use from Frame SN 1106001.

$

$

Currently unavailable

18

Honda 91204-GK8-003

OIL SEAL (15X24X5)

Note: Use from Frame SN 1106001.

$6.49

$

In Stock, only 1 left!

0

19

Honda 92101-05010-0A

BOLT, HEX. (5X10)

Note: Use from Frame SN 1106001.

$1.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08020-08

BOLT, FLANGE (8X20)

Note: Use from Frame SN 2138536.

$2.49

$

Usually ships in 3-6 days

0

22

Honda 93600-05014-0A

SCREW, FLAT (5X14)

Note: Use from Frame SN 1106001.

$0.99

$

Usually ships in 3-6 days

0

23

Honda 31105-028-000

WASHER, ROTOR SETTING (NOT AVAILABLE)

Note: Use from Frame SN 2138536.

$

$

Currently unavailable

24

Honda 94510-30000

CIRCLIP (OUTER) (30MM)

Note: Use from Frame SN 1106001.

$1.99

$

Usually ships in 3-6 days

0
