E300 K1 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1106001 - GE300-1281362) FUEL TANK + PANEL Parts Diagram

Generator, Made in Japan

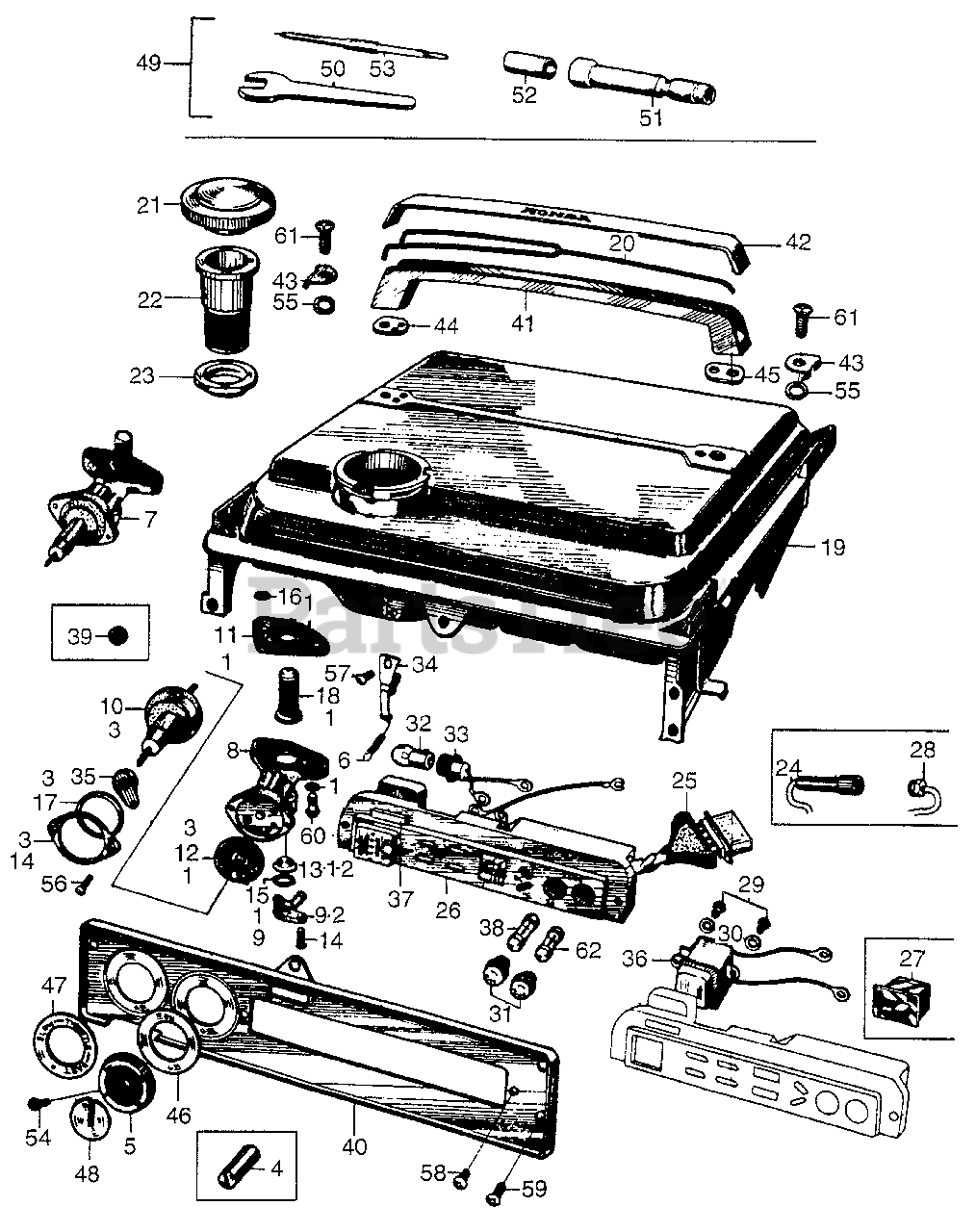

FUEL TANK + PANEL Parts Diagram

  • Title

5

Honda 16564-812-020

KNOB, CONTROL

Note: Use from Frame SN 1026557.

$

$

Not available

6

Honda 16913-703-000

GASKET, STRAINER SETTING (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 2025090.

$

$

Currently unavailable

7

Honda 16950-836-015

PETCOCK ASSY.

Note: Use from Frame SN 1026557.

$

$

Currently unavailable

8

Honda 16951-836-004

BODY, PETCOCK

$

$

Not available

9

Honda 16956-812-010

CAP, PETCOCK (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 2039313.

$

$

Currently unavailable

10

Honda 16957-812-010

LEVER, VALVE (NOT AVAILABLE)

Note: Use from Frame SN 1026557 to 2000000.

$

$

Currently unavailable

11

Honda 16958-812-004

GASKET A, PETCOCK (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 2039313.

$

$

Currently unavailable

12

Honda 16960-812-004

GASKET, VALVE

Note: Use from Frame SN 0100001 to 2039313.

$6.49

$

In Stock, only 2 left!

0

13

Honda 16962-812-004

FILTER, CHECK (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 2039313.

$

$

Currently unavailable

14

Honda 16964-812-000

PLATE, LEVER

Note: Use from Frame SN 0100001 to 2039313.

$

$

Currently unavailable

15

Honda 16966-812-004

GASKET, O-TYPE (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 2039313.

$

$

Currently unavailable

16

Honda 16968-812-000

COLLAR, LEVER GASKET

Note: Use from Frame SN 0100001 to 2039313.

$

$

Currently unavailable

17

Honda 16975-805-000

SPRING, PETCOCK LEVER (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 203913.

$

$

Currently unavailable

18

Honda 16981-836-700

FILTER, CHECK (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 2039313.

$

$

Not available

19

Honda 17500-836-020T

TANK, FUEL *NH2M* (METALLIC SILVER) (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 17601-812-010

TUBE, HANDLE BREATHER (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 17650-801-020

CAP, TANK (NOT AVAILABLE)

$

$

Not available

22

Honda 17672-812-000

SEE PART DETAILS - SUP; FILTER, FUEL

$

$

Currently unavailable

23

Honda 17673-836-000

RUBBER, FILTER (NOT AVAILABLE)

$

$

Not available

25

Honda 32114-812-000

COVER, WIRE HARNESS CONNECTOR

$

$

Not available

26

Honda 32340-836-013

RECEPTACLE ASSY., SWITCH (NOT AVAILABLE)

Note: Use from Frame SN 1106001 to 2000000.

$

$

Currently unavailable

26

Honda 32345-836-013

RECEPTACLE, SWITCH

$

$

Not available

29

Honda 93500-03010-0A

SCREW, PAN (3X10)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, Qty 9

0

31

Honda 32347-836-003

HOLDER, FUSE (NOT AVAILABLE)

Note: Use from Frame SN 1106001 to 2000000.

$

$

Currently unavailable

32

Honda 34902-202-000

BULB, DASH (6V3W) (STANLEY)

Note: Use from Frame SN 1011455.

$4.49

$

In Stock, Qty 17

0

34

Honda 36100-836-005

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 1240000.

$

$

Currently unavailable

35

Honda 36141-812-000

ARM, SWITCH (NOT AVAILABLE)

$

$

Currently unavailable

36

Honda 37500-836-153

METER, FREQUENCY

Note: Use from Frame SN 1106001.

$

$

Not available

37

Honda 37901-836-003

LENS, LAMP

Note: Use from Frame SN 1106001.

$

$

Not available

38

Honda 38218-812-010

SEE PART DETAILS - SUP; FUSE (3A)
(Superseded to 38218-836-730)

Note: Use from Frame SN 0100001.

$

$

Not available

38

Honda 38218-836-730

SEE PART DETAILS - PRI; FUSE ASSY., SPARE

Note: Use from Frame SN 0100001.

$

$

Not available

39

Honda 63371-812-010

RUBBER, GUIDE (NOT AVAILABLE)

$

$

Currently unavailable

40

Honda 66211-812-010

PANEL, FR.

Note: Use from Frame SN 0100001 to 1005679.

$

$

Currently unavailable

40

Honda 66211-836-000T

PANEL, FR. *NH2M* (METALLIC SILVER)

Note: Use from Frame SN 1106001.

$

$

Not available

41

Honda 68110-812-020

HANDLE, CARRY

$

$

Currently unavailable

42

Honda 68121-812-000

COVER, HANDLE (NOT AVAILABLE)

$

$

Currently unavailable

43

Honda 68125-812-000

HOOK, HANDLE COVER

$

$

Not available

44

Honda 68141-812-010

GASKET A, HANDLE (NOT AVAILABLE)

$

$

Currently unavailable

45

Honda 68142-812-000

GASKET B, HANDLE (NOT AVAILABLE)

$

$

Currently unavailable

46

Honda 87531-836-000

MARK, VALVE KNOB (NOT AVAILABLE)

Note: Use from Frame SN 1106001.

$

$

Currently unavailable

47

Honda 87532-836-000

MARK, THROTTLE KNOB (NOT AVAILABLE)

$

$

Currently unavailable

48

Honda 87533-812-000

MARK, CONTROL KNOB

Note: Use from Frame SN 1026441.

$

$

Currently unavailable

50

Honda 89203-836-000

WRENCH (8MM) (OPEN END) (NOT AVAILABLE)

$

$

Currently unavailable

51

Honda 89216-812-010

WRENCH, SPARK PLUG (NOT AVAILABLE)

Note: Use from Frame SN 1000001.

$

$

Currently unavailable

52

Honda 89218-812-000

RUBBER, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

53

Honda 89221-812-000

SCREWDRIVER

$

$

Not available

54

Honda 90192-801-010

SCREW, STOP (3MM)

Note: Use from Frame SN 1026557.

$

$

Currently unavailable

55

Honda 91301-801-000

O-RING (5X1.5) (NOT AVAILABLE)

$

$

Currently unavailable

56

Honda 93500-03006-0B

SCREW, PAN (3X6) (NOT AVAILABLE)

$

$

Currently unavailable

57

Honda 93500-03006-0A

SCREW, PAN (3X6)

Note: Use from Frame SN 1106001.

$1.49

$

Usually ships in 3-6 days

0

58

Honda 93500-04008-0B

SCREW, PAN (4X8)

Note: Use from Frame SN 1106001 to 2035556.

$

$

Not available

59

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

60

Honda 93500-06016-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X16)

$1.49

$

Usually ships in 3-6 days

0

61

Honda 93500-06020

SEE PART DETAILS - SUP; SCREW, PAN (6X20)

$

$

Currently unavailable

61

Honda 93500-06020-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X20)

$1.49

$

Usually ships in 3-6 days

0

62

Honda 98200-11000

FUSE A (10A)

$2.49

$

In Stock, only 1 left!

0
