E300 A (GE300) - Honda Generator, Made in Japan (SN: GE300-100001 - GE300-1106000) STARTER PULLEY + RECOIL STARTER Parts Diagram

Generator, Made in Japan

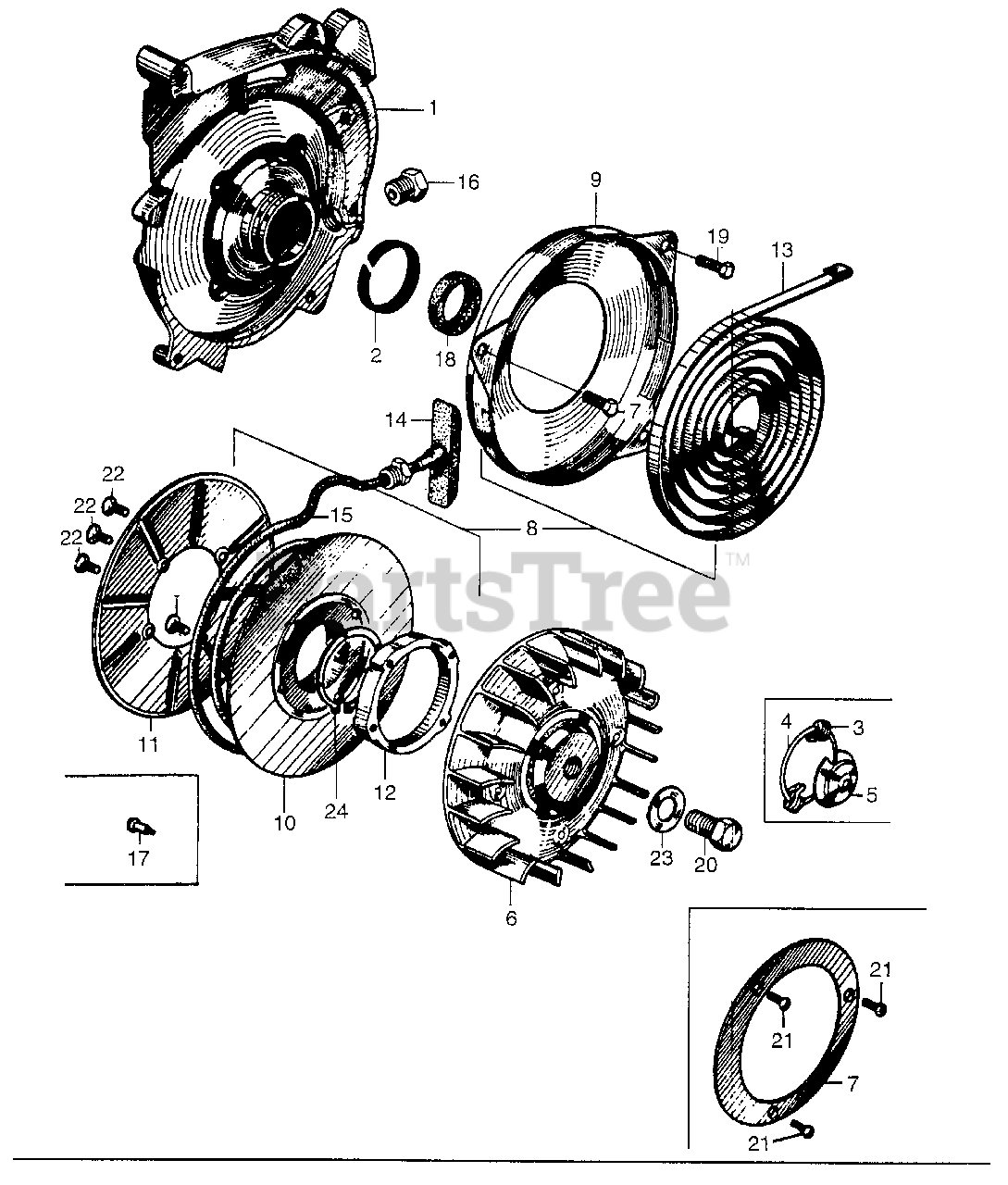

STARTER PULLEY + RECOIL STARTER Parts Diagram

  • Title

1

Honda 11400-812-060

CASE, SPRING

Note: Use from Frame SN 1058041 to 1106000.

$

$

Currently unavailable

1

Honda 11400-812-325

CASE, SET SPRING

Note: Use from Frame SN 0100001 to 1005269.

$

$

Not available

1

Honda 11400-812-345

CASE, SET SPRING

Note: Use from Frame SN 1005270 to 1058040.

$

$

Not available

2

Honda 11511-812-000

FELT (5.5MM)

Note: Use from Frame SN 0100001 to 1058040.

$

$

Currently unavailable

2

Honda 11511-812-010

FELT (5.5MM) (NOT AVAILABLE)

Note: Use from Frame SN 1058041 to 1106000.

$

$

Currently unavailable

3

Honda 16511-800-000

WEIGHT, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16515-812-000

RING, GOVERNOR

$

$

Not available

5

Honda 16520-812-000

SLIDER, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 19510-812-010

FAN, COOLING

Note: Use from Frame SN 0100001 to 1024398.

$

$

Not available

6

Honda 19510-812-020

FAN, COOLING (NOT AVAILABLE)

Note: Use from Frame SN 1024399 to 1058040.

$

$

Currently unavailable

6

Honda 19510-812-030

FAN, COOLING (NOT AVAILABLE)

Note: Use from Frame SN 1058041 to 1106000.

$

$

Currently unavailable

7

Honda 19515-812-010

PLATE, COOLING FAN

Note: Use from Frame SN 0100001 to 1024398.

$

$

Not available

7

Honda 19515-812-010

PLATE, COOLING FAN

Note: Use from Frame SN 1009666 to 1024398.

$

$

Not available

10

Honda 28420-812-000

PULLEY, STARTER

Note: Use from Frame SN 0100001 to 1058040.

$

$

Not available

10

Honda 28420-812-010

PULLEY, STARTER

Note: Use from Frame SN 1058041 to 1106000.

$

$

Not available

11

Honda 28425-812-000

PLATE, STARTER

Note: Use from Frame SN 0100001 to 1106000.

$

$

Not available

12

Honda 28441-812-000

RATCHET, STARTER (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 1106000.

$45.99

$

Usually ships in 3-6 days

0

13

Honda 28450-812-000

SPRING, STARTER (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 1106000.

$

$

Currently unavailable

14

Honda 28461-812-010

GRIP, STARTER (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 1106000.

$

$

Currently unavailable

15

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#4X55")
(Superseded to 28462-ZE6-T02)

$6.49

$

In Stock, Qty 10

0

15

Honda 28462-ZA8-901

SEE PART DETAILS - SUP; ROPE, STARTER (#4X65")
(Superseded to 28462-ZE6-T02)

$6.49

$

In Stock, Qty 10

0

15

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE (#4X55")

$6.49

$

In Stock, Qty 10

0

16

Honda 28475-812-000

GUIDE, STARTER ROPE (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 1106000.

$

$

Currently unavailable

17

Honda 90082-812-000

BOLT, SPECIAL (4MM)

Note: Use from Frame SN 0100001 to 1106000.

$

$

Currently unavailable

21

Honda 93600-04008

SCREW, FLAT (4X8) (NOT AVAILABLE)

Note: Use from Frame SN 1009666 to 1024398.

$0.99

$

Usually ships in 3-6 days

0

22

Honda 93600-05016

SCREW, FLAT (5X16)

Note: Use from Frame SN 0100001 to 1106000.

$0.99

$

Usually ships in 3-6 days

0

23

Honda 94102-10000

WASHER, PLAIN (10MM)

Note: Use up to Frame SN 2138535.

$0.99

$

In Stock, only 1 left!

0

24

Honda 90602-703-000

CIRCLIP (OUTER) (21MM) (NOT AVAILABLE)

Note: Use from Frame SN 1058041 to 1106000.

$

$

Currently unavailable

24

Honda 94510-18000

CIRCLIP (OUTER) (18MM)

Note: Use from Frame SN 0100001 to 1058040.

$1.99

$

Usually ships in 3-6 days

0
