E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) ROTOR + GENERATOR PULLEY + FAN COVER Parts Diagram

Generator, Made in Japan

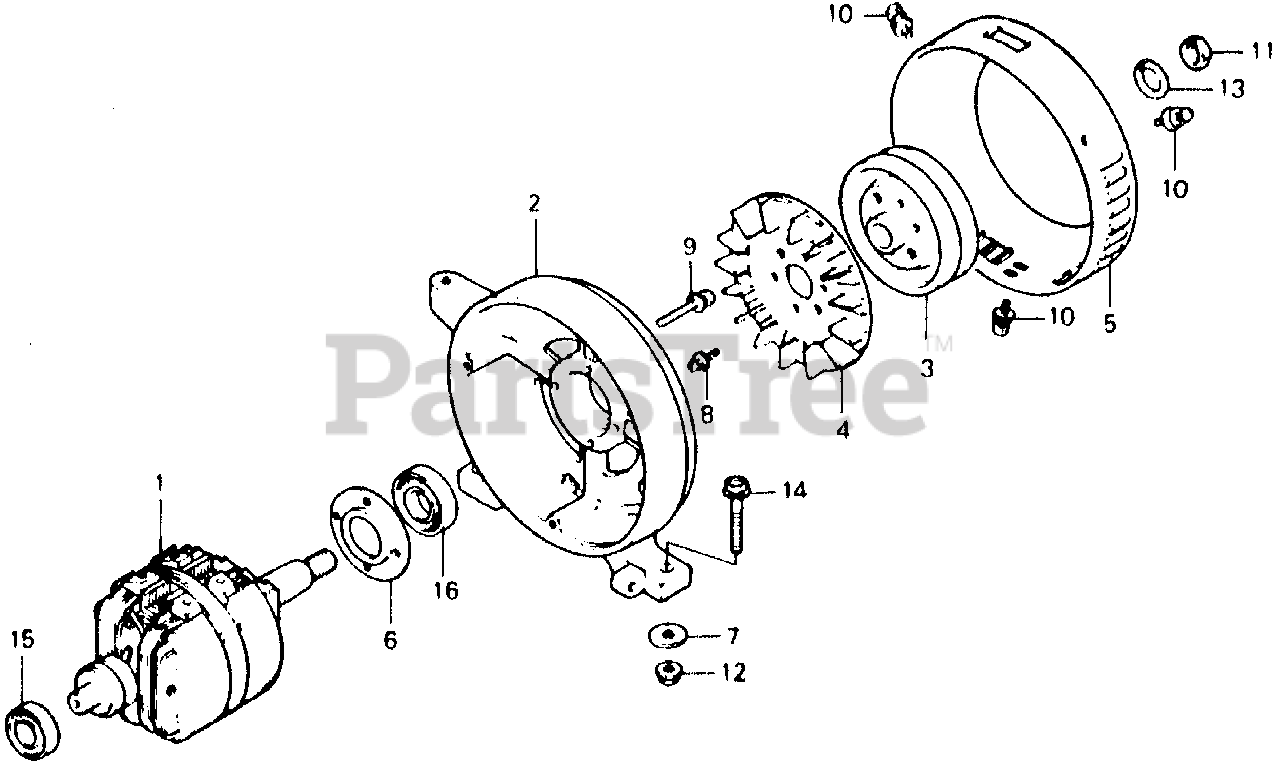

ROTOR + GENERATOR PULLEY + FAN COVER Parts Diagram

  • Title

1

Honda 31104-877-003

ROTOR

$

$

Not available

2

Honda 31109-877-003XC

HOUSING, FR. *NH31* (MCKINLEY WHITE)

$

$

Not available

3

Honda 31111-877-003B

PULLEY, GENERATOR *NH1* (BLACK)

$

$

Not available

4

Honda 31112-839-158

FAN

$

$

Not available

5

Honda 31114-880-000XC

COVER, FAN *NH31* (MCKINLEY WHITE)

$

$

Not available

6

Honda 31117-839-168

COVER B, BEARING

$

$

Not available

7

Honda 90501-579-020

WASHER, EX. MANIFOLD

$7.49

$

Usually ships in 3-6 days

0

8

Honda 93892-05010-08

SCREW-WASHER (5X10)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 93893-04025-08

SCREW-WASHER (4X25) (NOT AVAILABLE)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 93893-05010-08

SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 94001-18000-0S

NUT, HEX. (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

13

Honda 94111-18000

WASHER, SPRING (18MM) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

14

Honda 95701-10032-00

BOLT, FLANGE (10X32)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0

16

Honda 96150-62050-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205UU)

$44.99

$

Usually ships in 3-6 days

0
