E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

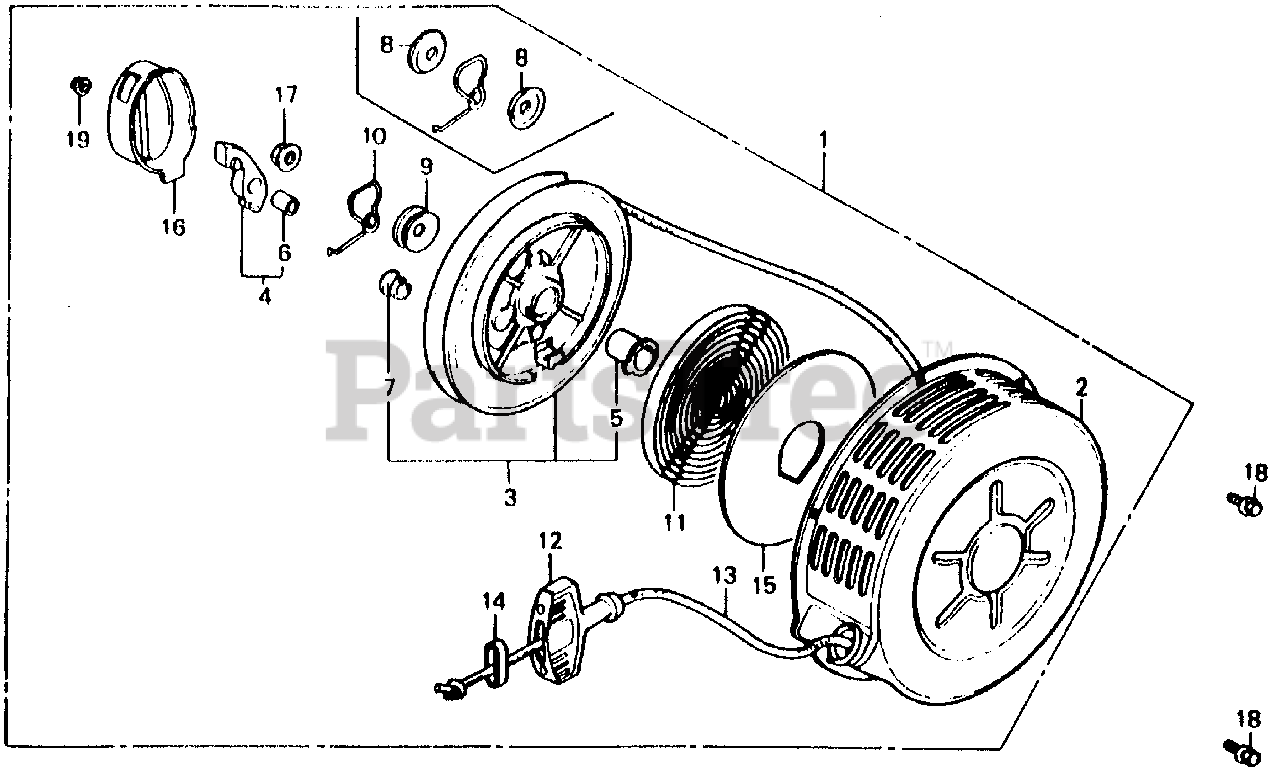

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-YA1-R00ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$115.99

$

In Stock, only 1 left!

0

1

Honda 28400-889-020ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-YA1-R00ZB)

$115.99

$

In Stock, only 1 left!

0

2

Honda 28410-889-010ZA

SEE PART DETAILS - PRI; CASE, STARTER

$

$

Not available

3

Honda 28420-889-010

REEL, STARTER

$36.99

$

Usually ships in 3-6 days

0

4

Honda 28422-889-013

RATCHET

$

$

Not available

5

Honda 28424-883-000

BOSS, REEL

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28425-889-300

BUSH, RATCHET

$4.99

$

Usually ships in 3-6 days

0

7

Honda 28427-883-300

BUSH, REEL STARTER

$5.99

$

Usually ships in 3-6 days

0

8

Honda 28431-883-000

PLATE, FRICTION

Note: Use up to Engine SN 1105405.

$2.49

$

Usually ships in 3-6 days

0

9

Honda 28432-883-000

PLATE, FRICTION

Note: Use from Engine SN 1105406.

$5.49

$

Usually ships in 3-6 days

0

10

Honda 28441-883-010

SEE PART DETAILS - SUP; SPRING, FRICTION
(Superseded to 28441-883-020)

Note: Use up to Engine SN 1105405.

$9.99

$

In Stock, only 1 left!

0

10

Honda 28441-883-020

SEE PART DETAILS - PRI; SPRING, FRICTION

$9.99

$

In Stock, only 1 left!

0

11

Honda 28442-883-000

SPRING, RETURN

$21.99

$

Usually ships in 3-6 days

0

12

Honda 28461-883-000

GRIP, STARTER

Note: Use up to Engine SN 1115472.

$11.99

$

In Stock, only 1 left!

0

12

Honda 28461-890-000

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-883-T20)

Note: Use from Engine SN 1115473.

$10.99

$

Usually ships in 3-6 days

0

13

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55")

$12.99

$

In Stock, only 4 left!

0

13

Honda 28470-816-000

ROPE, STARTER (#5X55")

$9.99

$

In Stock, only 1 left!

0

14

Honda 28463-883-000

SUPPORT, GRIP

$3.99

$

Usually ships in 3-6 days

0

15

Honda 28467-889-010

PLATE, SIDE

Note: Use from Engine SN 1072936.

$

$

Not available

16

Honda 28474-YA0-N40

SEE PART DETAILS - PRI; COVER, REEL STARTER

$11.99

$

Usually ships in 3-6 days

0

16

Honda 28474-883-010

SEE PART DETAILS - SUP; COVER, REEL STARTER
(Superseded to 28474-YA0-N40)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

$2.49

$

In Stock, Qty 5

0

18

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10)
(Superseded to 93401-06010-08)

$2.49

$

In Stock, Qty 5

0

19

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0
