E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) GOVERNOR ARM + CONTROL PLATE Parts Diagram

Generator, Made in Japan

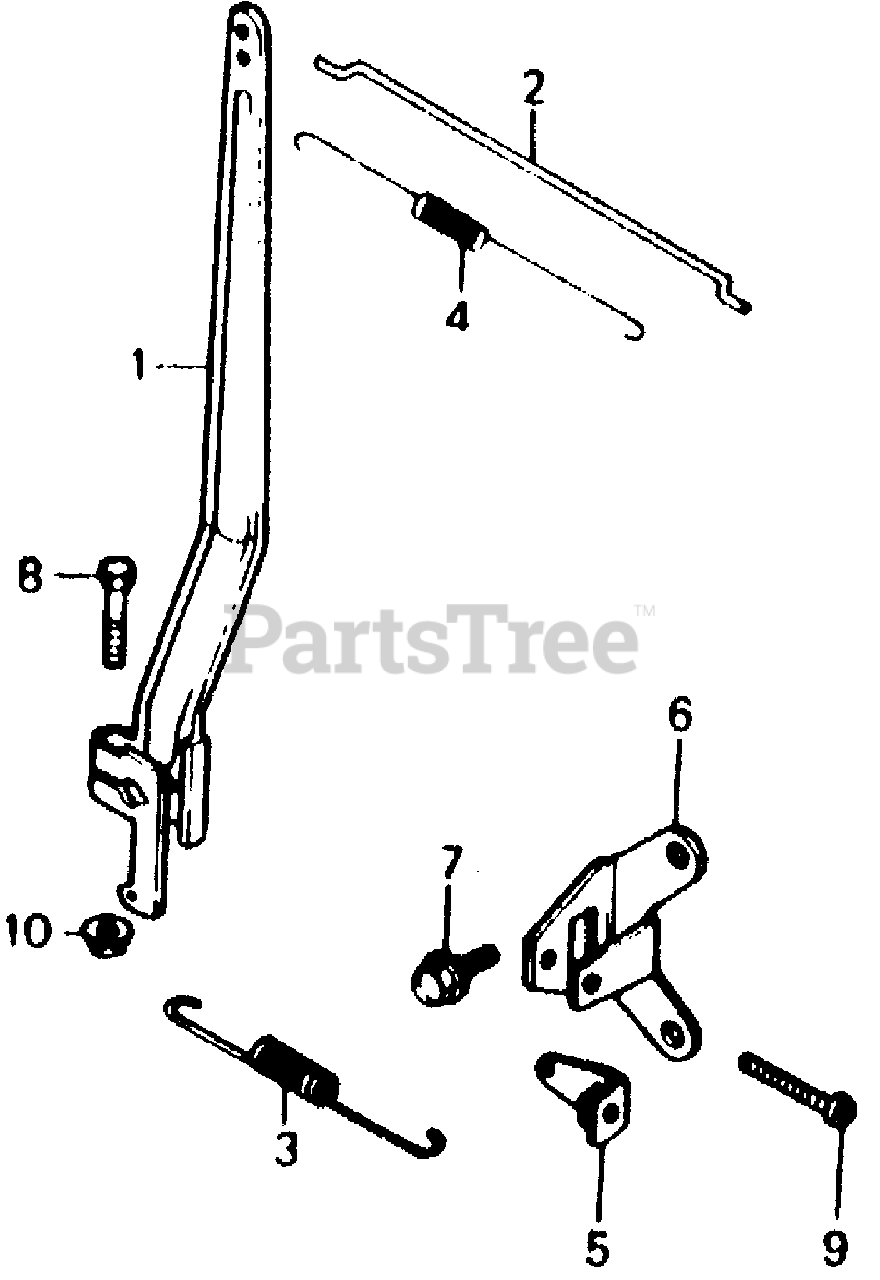

GOVERNOR ARM + CONTROL PLATE Parts Diagram

  • Title

1

Honda 16551-889-010

ARM, GOVERNOR

$

$

Not available

2

Honda 16555-889-010

ROD, GOVERNOR

$5.49

$

Usually ships in 3-6 days

0

3

Honda 16561-890-010

SPRING, GOVERNOR

Note: Use up to Engine SN 1094198.

$

$

Not available

3

Honda 16561-890-601

SPRING, GOVERNOR

Note: Use from Engine SN 1094199.

$

$

Not available

4

Honda 16562-889-000

SEE PART DETAILS - SUP; SPRING, THROTTLE RETURN

Note: Use up to Engine SN 1028288.

$

$

Currently unavailable

4

Honda 16562-889-010

SEE PART DETAILS - PRI; SPRING, THROTTLE RETURN

Note: Use up to Engine SN 1094287.

$

$

Not available

5

Honda 16571-865-630

PLATE, CONTROL (NOT AVAILABLE)

$

$

Not available

6

Honda 16573-880-000

BASE, CONTROL

Note: Use up to Engine SN 1027910.

$

$

Currently unavailable

6

Honda 16573-880-010

BASE, CONTROL (NOT AVAILABLE)

Note: Use from Engine SN 1027911.

$

$

Currently unavailable

7

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 15

0

8

Honda 92000-06025-0H

BOLT, HEX. (6X25)

$

$

Currently unavailable

9

Honda 93500-06025

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

10

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
