E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) FUEL TANK + FUEL VALVE Parts Diagram

Generator, Made in Japan

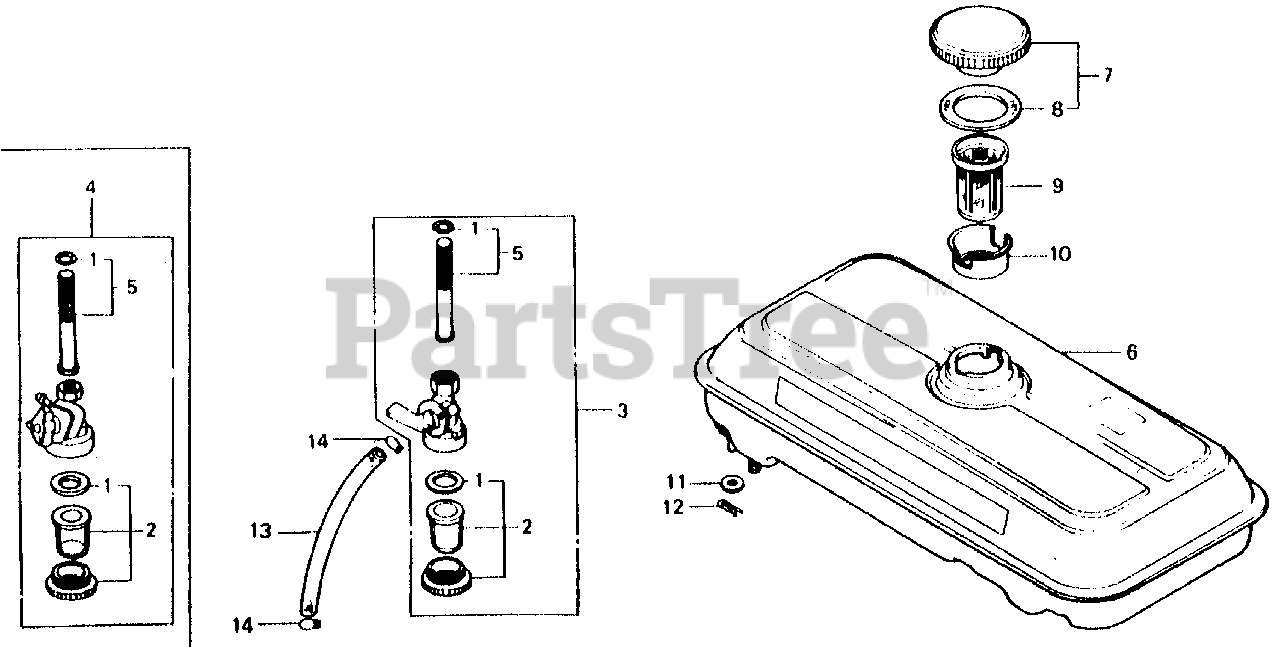

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, VALVE

$12.99

$

In Stock, only 1 left!

0

2

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-883-045

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-898-633)

$57.99

$

Usually ships in 3-6 days

0

4

Honda 16950-898-005

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Currently unavailable

4

Honda 16950-898-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Currently unavailable

5

Honda 16952-883-005

SCREEN SET

$18.99

$

In Stock, only 1 left!

0

6

Honda 17510-877-000XC

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Frame SN 2124762.

$

$

Not available

7

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

Note: Use up to Frame SN 2124761.

$19.99

$

In Stock, only 1 left!

0

8

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

9

Honda 17672-880-000

FILTER, FUEL

$13.99

$

Usually ships in 3-6 days

0

10

Honda 17673-893-000

HOLDER, FUEL FILTER

$14.99

$

In Stock, only 1 left!

0

11

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

12

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X120)

$54.99

$

In Stock, only 4 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0
