E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) CYLINDER HEAD + CYLINDER Parts Diagram

Generator, Made in Japan

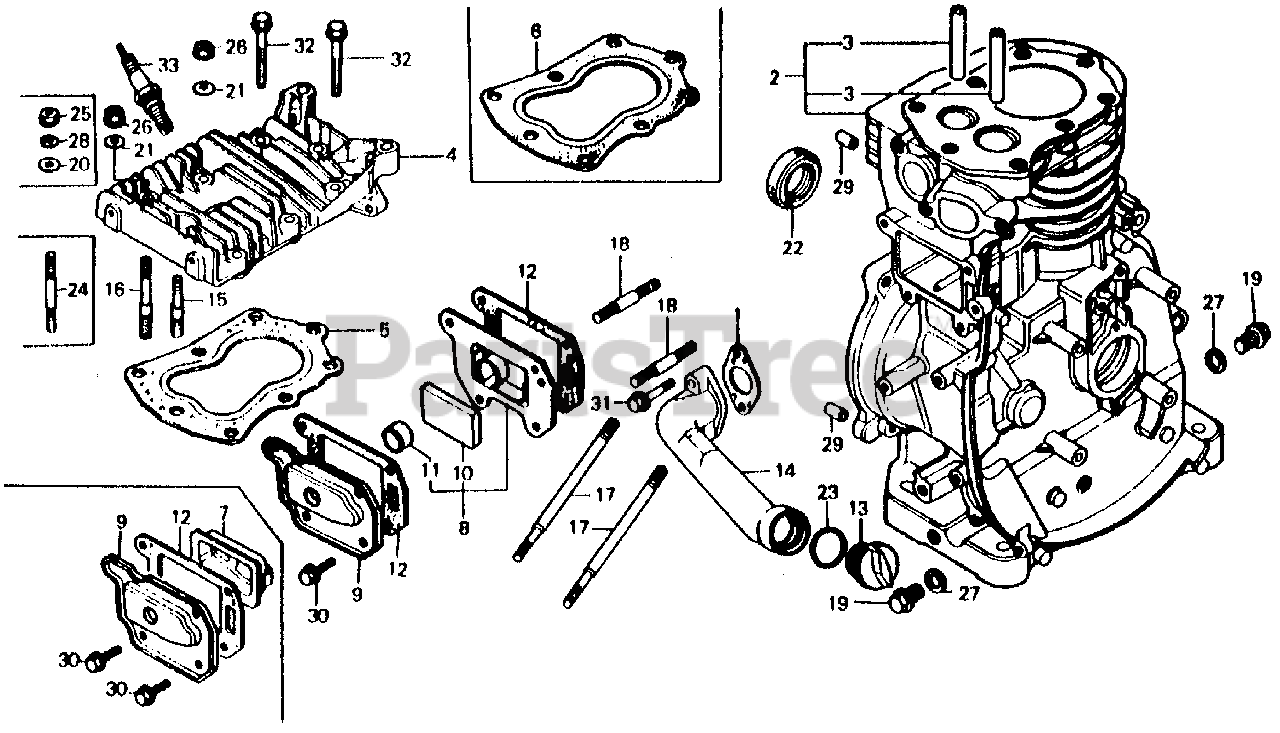

CYLINDER HEAD + CYLINDER Parts Diagram

  • Title

1

Honda 11211-822-306

GASKET, OIL PAN

$

$

Not available

2

Honda 12100-889-335

CYLINDER (CRANKSHAFT P.T.O.)

$

$

Not available

2

Honda 12100-889-335

CYLINDER (CRANKSHAFT P.T.O.)

Note: Use up to Engine SN 1103202.

$

$

Not available

2

Honda 12100-889-345

CYLINDER

Note: Use from Engine SN 1103203.

$957.99

$

Usually ships in 3-6 days

0

3

Honda 12134-889-305

GUIDE, VALVE

$12.99

$

Usually ships in 3-6 days

0

4

Honda 12221-889-315

CYLINDER HEAD

$

$

Not available

5

Honda 12281-889-315

GASKET, CYLINDER HEAD

$34.99

$

Usually ships in 3-6 days

0

6

Honda 12281-889-315

GASKET, CYLINDER HEAD Use from Engine SN 1103183.

$34.99

$

Usually ships in 3-6 days

0

7

Honda 12360-889-000

SEE PART DETAILS - SUP; CASE, BREATHER

Note: Use up to Engine SN 1136497.

$

$

Currently unavailable

7

Honda 12360-889-010

SEE PART DETAILS - PRI; CASE, BREATHER

Note: Use up to Engine SN 1136497.

$

$

Not available

8

Honda 12360-889-010

SEE PART DETAILS - PRI; CASE, BREATHER

Note: Use from Engine SN 1136498.

$

$

Not available

9

Honda 12361-889-000

COVER, TAPPET

$11.99

$

Usually ships in 3-6 days

0

10

Honda 12367-883-003

FILTER, BREATHER

Note: Use from Engine SN 1136498.

$3.99

$

Usually ships in 3-6 days

0

11

Honda 12369-883-000

SEAL, BREATHER

Note: Use from Engine SN 1136498.

$4.49

$

Usually ships in 3-6 days

0

12

Honda 12375-889-000

GASKET, TAPPET COVER

Note: Use up to Engine SN 1136497.

$

$

Not available

12

Honda 12375-889-000

GASKET, TAPPET COVER

Note: Use from Engine SN 1136498.

$

$

Not available

13

Honda 15611-921-000

CAP, OIL

$13.99

$

Usually ships in 3-6 days

0

14

Honda 15632-890-010

PIPE, OIL

$

$

Not available

15

Honda 90032-889-000

BOLT, STUD (M8XM10X63)

Note: Use from Engine SN 1103183.

$8.49

$

Usually ships in 3-6 days

0

16

Honda 90033-889-000

BOLT, STUD (M8XM10X81)

Note: Use from Engine SN 1103183.

$9.99

$

Usually ships in 3-6 days

0

17

Honda 90042-890-010

BOLT, STUD (8X110)

Note: Use up to Engine SN 1106022.

$8.49

$

Usually ships in 3-6 days

0

17

Honda 90042-890-680

BOLT, STUD (8X104)

Note: Use from Engine SN 1106023.

$8.99

$

Usually ships in 3-6 days

0

18

Honda 90047-883-000

BOLT, STUD (8X35)

$4.99

$

Usually ships in 3-6 days

0

19

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, Qty 12

0

20

Honda 90402-822-000

WASHER, HEAD (8MM)

Note: Use up to Engine SN 1103182.

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90430-657-000

WASHER (8MM)

Note: Use from Engine SN 1103183.

$9.49

$

In Stock, only 1 left!

0

22

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

Usually ships in 3-6 days

0

22

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

Usually ships in 3-6 days

0

23

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

In Stock, only 1 left!

0

24

Honda 92700-08065-3B

BOLT, STUD (8X65)

Note: Use from Engine SN 1003332 to 1007176.

$

$

Currently unavailable

24

Honda 92700-08080-3B

BOLT, STUD (8X80) (NOT AVAILABLE)

Note: Use up to Engine SN 1003331.

$

$

Currently unavailable

25

Honda 94050-08080

NUT, FLANGE (8MM)

Note: Use up to Engine SN 1103182.

$1.49

$

In Stock, Qty 16

0

26

Honda 94071-08080

NUT-WASHER (8MM)

Note: Use from Engine SN 1103183.

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

28

Honda 94111-08000

WASHER, SPRING (8MM)

Note: Use up to Engine SN 1103182.

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

30

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

30

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

31

Honda 95700-06025-08

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 95730-08050-08

BOLT, FLANGE (8X50) (NOT AVAILABLE)

Note: Use up to Engine SN 1103182.

$

$

Currently unavailable

33

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

$3.49

$

In Stock, Qty 10

0

33

Honda 98076-54757

SPARK PLUG (W14FR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
