E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) CONTROL BOX ASSY. + ALTERNATOR ASSY. + BELT COVER Parts Diagram

Generator, Made in Japan

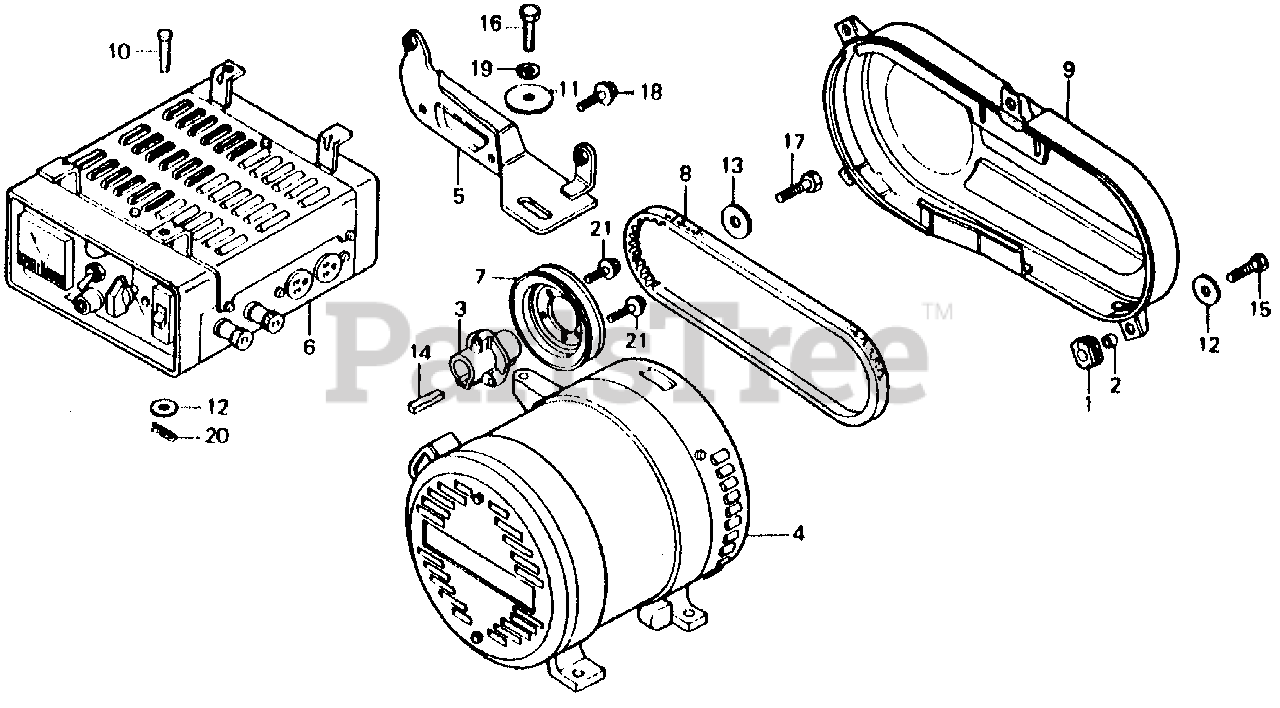

CONTROL BOX ASSY. + ALTERNATOR ASSY. + BELT COVER Parts Diagram

  • Title

1

Honda 17631-700-000

RUBBER, TANK CUSHION (NOT AVAILABLE)

$

$

Not available

2

Honda 17642-839-000

COLLAR, DISTANCE

$

$

Currently unavailable

3

Honda 22426-877-000

BOSS, DRIVE PULLEY (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31100-877-673ZA

GENERATOR ASSY. *R8/NH31/NH1* (BRIGHT RED/MC KINLEY WHITE/ BLACK)

$

$

Not available

5

Honda 31181-877-000

STAY, ALTERNATOR

$

$

Currently unavailable

6

Honda 31400-877-673H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

7

Honda 49114-877-690

PULLEY (FOR 60) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 49212-880-691

V-BELT (B-37)

$

$

Currently unavailable

9

Honda 63610-877-020H

COVER, BELT *R8* (BRIGHT RED)

$

$

Not available

10

Honda 68331-876-000

PIN, CONTROL BOX SETTING

$4.99

$

In Stock, only 2 left!

0

11

Honda 90430-657-000

WASHER (8MM)

$9.49

$

In Stock, only 1 left!

0

12

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

13

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

$9.49

$

Usually ships in 3-6 days

0

15

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 92101-08022-0A

BOLT, HEX. (8X22)

$

$

Currently unavailable

17

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

18

Honda 93401-08020-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X20)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

21

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
