E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) CAMSHAFT Parts Diagram

Generator, Made in Japan

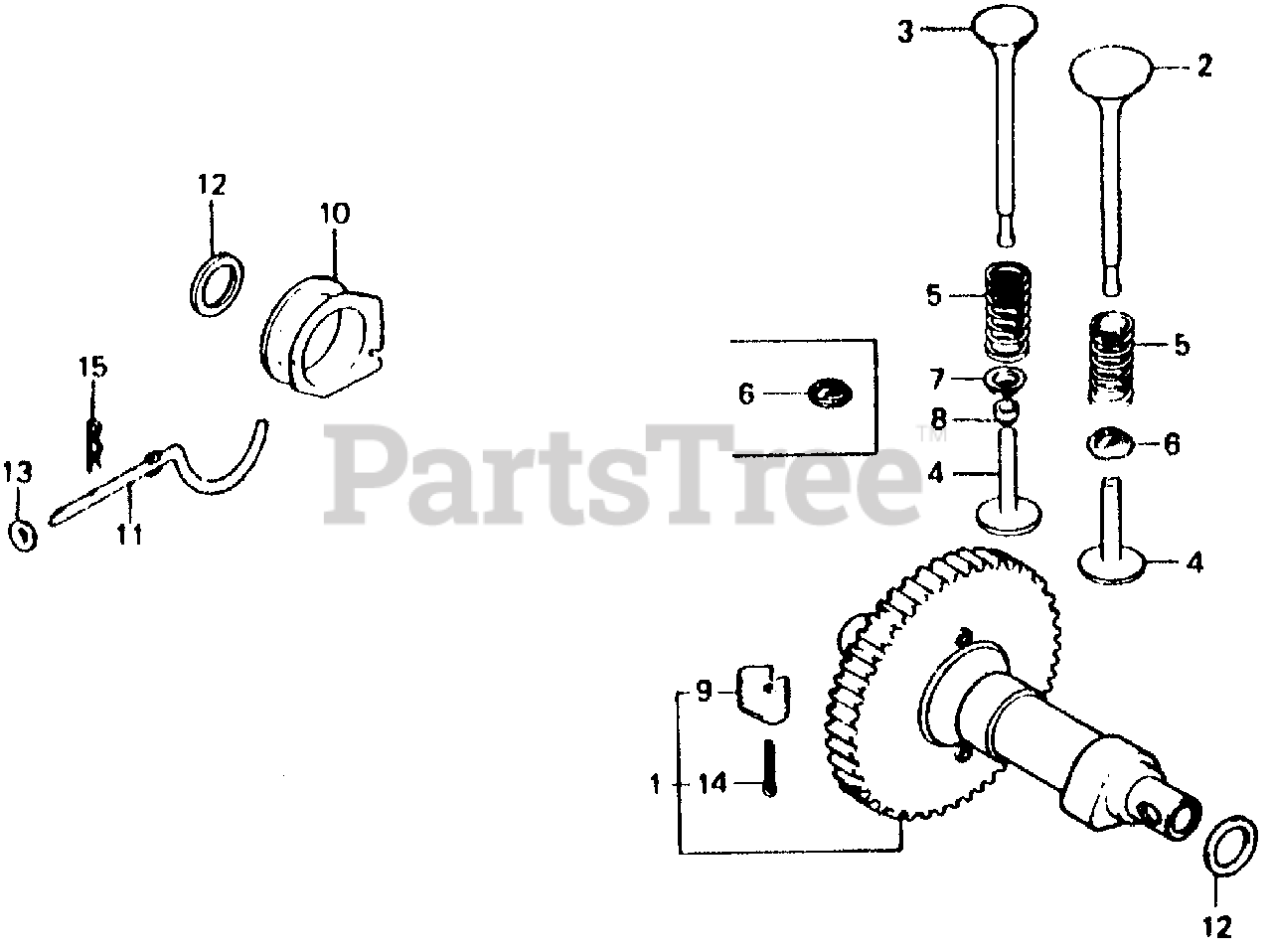

CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-889-030

CAMSHAFT ASSY.

$176.99

$

Usually ships in 3-6 days

0

2

Honda 14711-889-000

VALVE, IN.

$37.99

$

Usually ships in 3-6 days

0

3

Honda 14721-889-000

VALVE, EX.

Note: Use up to Engine SN 1113122.

$43.99

$

Usually ships in 3-6 days

0

3

Honda 14721-889-010

SEE PART DETAILS - SUP; VALVE, EX.
(Superseded to 14721-899-000)

Note: Use from Engine SN 1113123.

$61.99

$

Usually ships in 3-6 days

0

3

Honda 14721-899-000

SEE PART DETAILS - PRI; VALVE, EX.

Note: Use from Engine SN 1113123.

$61.99

$

Usually ships in 3-6 days

0

4

Honda 14732-889-000

LIFTER, VALVE (45.89MM)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14737-889-000

LIFTER, VALVE (46.04MM)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14742-889-000

LIFTER, VALVE (46.19MM)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14747-889-000

LIFTER, VALVE (46.34MM)

$22.99

$

Usually ships in 3-6 days

0

5

Honda 14751-890-000

SPRING, VALVE

$4.49

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

RETAINER, VALVE SPRING

Note: Use up to Engine SN 1113122.

$13.99

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

RETAINER, VALVE SPRING

Note: Use from Engine SN 1113123.

$13.99

$

Usually ships in 3-6 days

0

7

Honda 14771-889-000

RETAINER, VALVE SPRING

Note: Use from Engine SN 1113123.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 14781-889-000

ROTATOR, EX. VALVE

Note: Use from Engine SN 1113123.

$5.49

$

Usually ships in 3-6 days

0

9

Honda 16511-883-300

WEIGHT, GOVERNOR

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-890-000

SLIDER, GOVERNOR

$37.99

$

Usually ships in 3-6 days

0

11

Honda 16541-889-010

SHAFT, GOVERNOR

$14.99

$

In Stock, only 1 left!

0

12

Honda 90452-883-000

WASHER, THRUST (18MM)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

14

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94251-10400

PIN, LOCK (10MM)

$1.99

$

Usually ships in 3-6 days

0
