E2500 K3 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2000093 - E2500-2043277) RECOIL STARTER Parts Diagram

Generator, Made in Japan

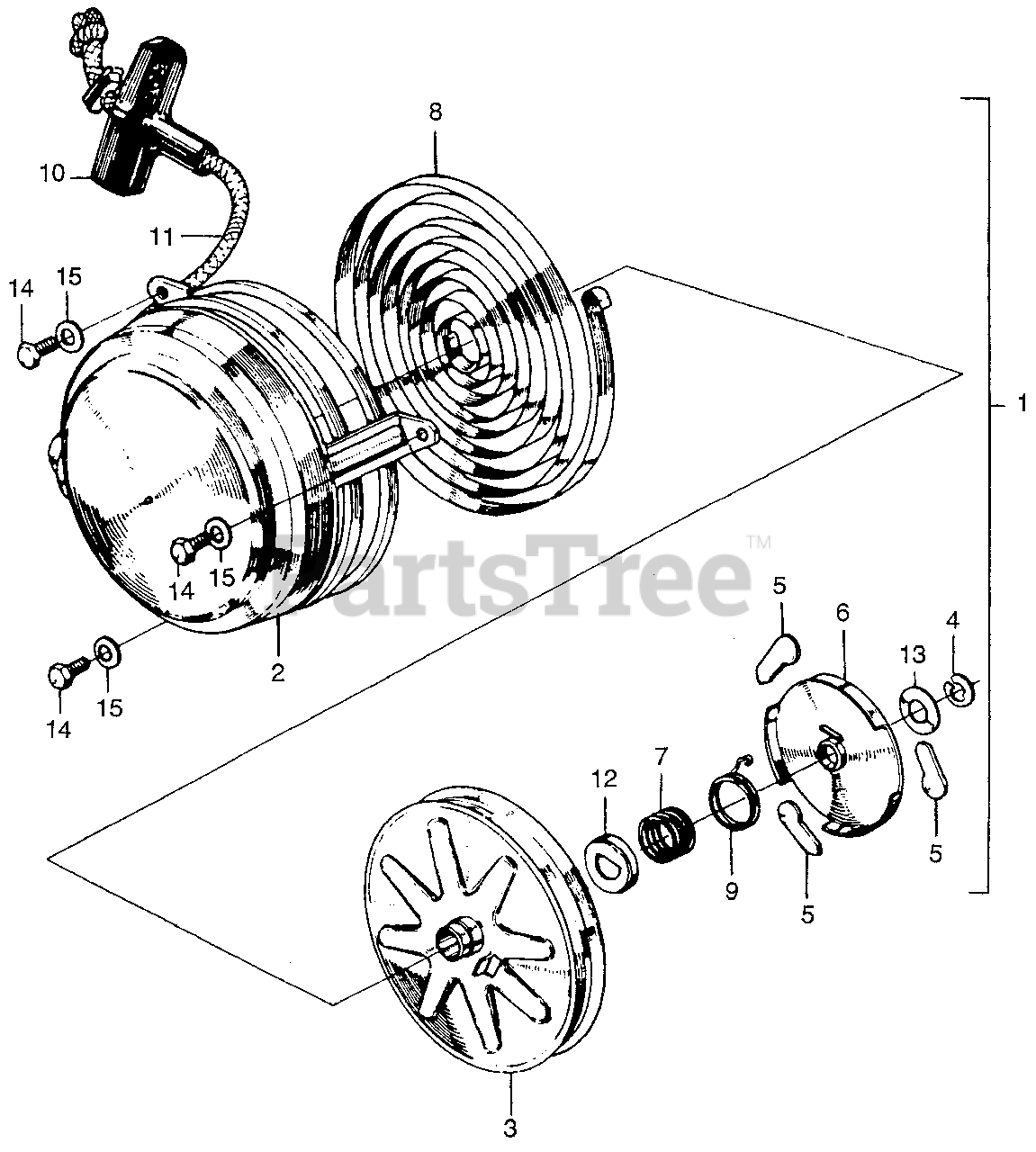

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-823-811H

STARTER ASSY., RECOIL *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 28410-823-812H

CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Currently unavailable

3

Honda 28420-822-810

PULLEY, RECOIL STARTER (NOT AVAILABLE)

$25.99

$

Usually ships in 3-6 days

0

4

Honda 28423-809-810

E-RING

$

$

Not available

5

Honda 28441-822-810

RATCHET, STARTER

$5.99

$

In Stock, only 2 left!

0

6

Honda 28445-822-650

PLATE, FRICTION

$

$

Not available

7

Honda 28446-809-810

SPRING, FRICTION

$2.49

$

Usually ships in 3-6 days

0

8

Honda 28451-809-810

SPRING, STARTER RETURN

$

$

Not available

9

Honda 28455-822-810

SPRING SET

$

$

Not available

10

Honda 28461-950-305

SEE PART DETAILS - PRI; KNOB SET, STARTER

$

$

Currently unavailable

11

Honda 28471-809-810

ROPE, STARTER (#6X64")

$

$

Currently unavailable

12

Honda 90481-809-810

WASHER A

$

$

Not available

13

Honda 90482-810-810

WASHER B

$

$

Not available

14

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0
