E2500 K3 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2000093 - E2500-2043277) FUEL TANK Parts Diagram

Generator, Made in Japan

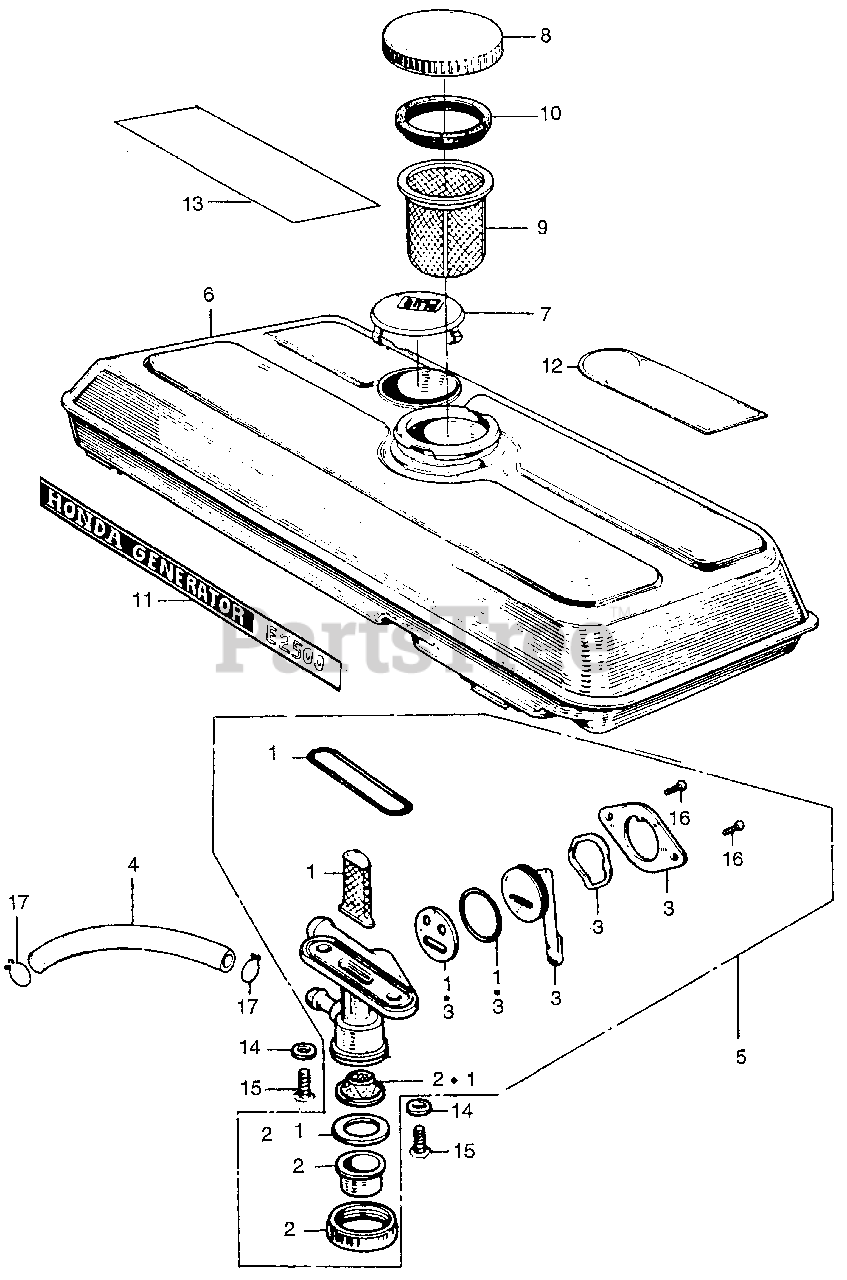

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-865-005

GASKET SET, VALVE

$42.99

$

In Stock, only 1 left!

0

2

Honda 16081-865-015

SEE PART DETAILS - SUP; CUP SET, STRAINER
(Superseded to 16081-865-305)

$37.99

$

In Stock, only 1 left!

0

3

Honda 16082-843-005

LEVER SET, VALVE (NOT AVAILABLE)

$

$

Not available

4

Honda 16851-823-000

TUBE, FUEL (NOT AVAILABLE)

Note: Use from Frame SN 2003213.

$

$

Currently unavailable

4

Honda 16851-877-000

TUBE, FUEL (NOT AVAILABLE)

Note: Use up to Frame SN 2003212.

$

$

Currently unavailable

5

Honda 16950-876-005

PETCOCK ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 06175-877-600XC

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 17650-805-750

CAP, FUEL TANK (NOT AVAILABLE)

$

$

Not available

9

Honda 17672-703-020

SEE PART DETAILS - PRI; FILTER, FUEL

$

$

Not available

10

Honda 17673-703-030

GASKET, FUEL FILTER (NOT AVAILABLE)

$

$

Not available

11

Honda 87101-840-000

MARK, TOP

$

$

Currently unavailable

12

Honda 87522-836-670

MARK A, CAUTION

$

$

Not available

13

Honda 87561-880-600

MARK, CAUTION (CO)(ENGLISH/FRENCH)(SPANISH)

$5.99

$

In Stock, Qty 6

0

14

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.99

$

In Stock, Qty 7

0

15

Honda 93500-06016-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X16)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 93500-03008-0A

SCREW, PAN (3X8)

$1.49

$

In Stock, only 1 left!

0
