E2500 K3 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2000093 - E2500-2043277) CYLINDER OIL PAN Parts Diagram

Generator, Made in Japan

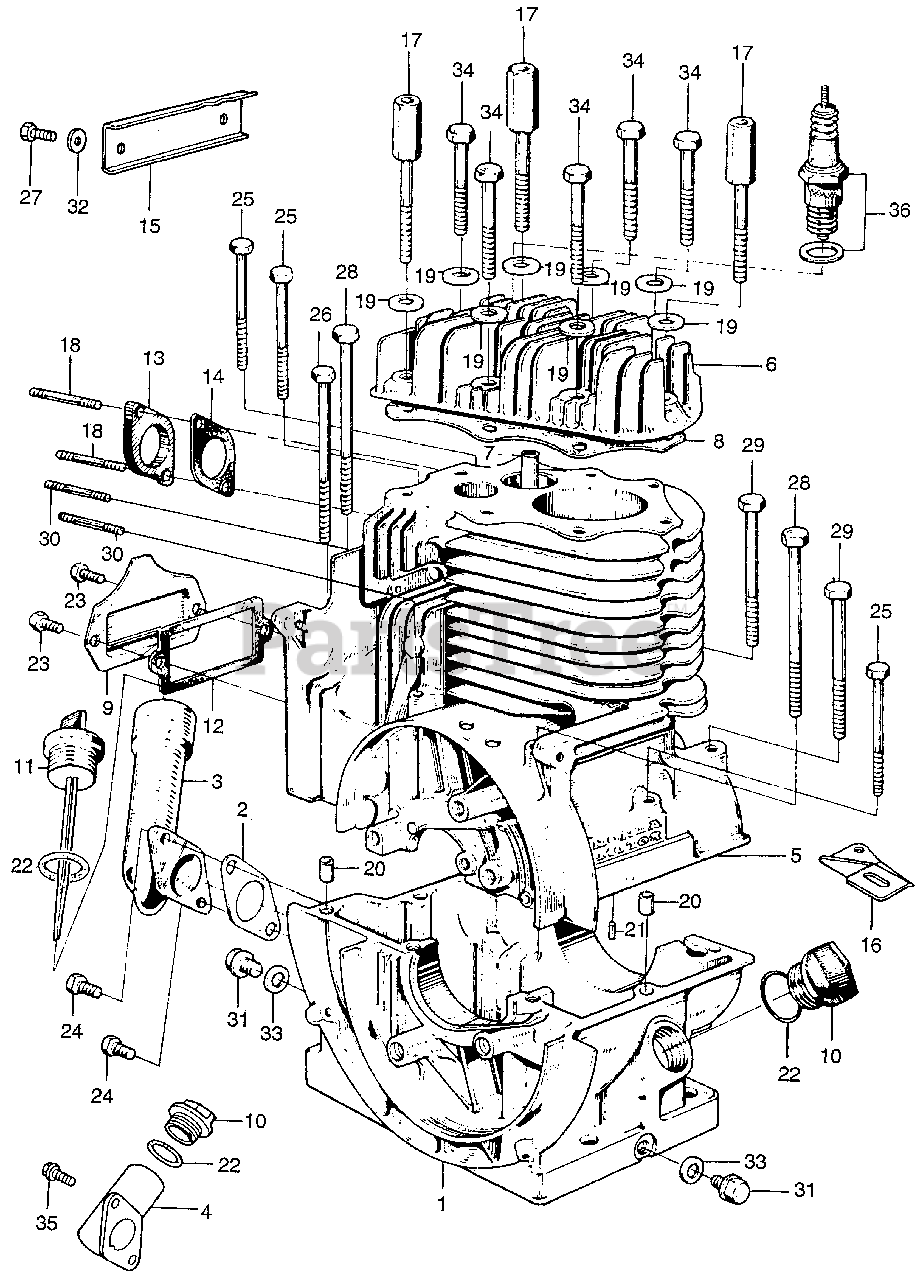

CYLINDER OIL PAN Parts Diagram

  • Title

1

Honda 11200-873-000

PAN, OIL

$

$

Not available

2

Honda 11211-822-306

GASKET, OIL PAN

$

$

Not available

3

Honda 11220-815-000

PIPE, OIL (NOT AVAILABLE)

Note: Use up to Engine SN 3037735.

$

$

Currently unavailable

4

Honda 11220-874-790

PIPE, OIL

Note: Use from Engine SN 3037736.

$

$

Not available

5

Honda 12100-823-070

CYLINDER

$

$

Not available

6

Honda 12201-823-000

CYLINDER HEAD

$

$

Not available

7

Honda 12236-823-305

GUIDE, VALVE

$

$

Currently unavailable

8

Honda 12251-823-306

GASKET, CYLINDER HEAD

$

$

Not available

9

Honda 12361-823-651

COVER, TAPPET

$

$

Not available

10

Honda 15611-921-000

CAP, OIL

Note: Use up to Engine SN 3037735.

$13.99

$

Usually ships in 3-6 days

0

10

Honda 15611-921-000

CAP, OIL

Note: Use from Engine SN 3037736.

$13.99

$

Usually ships in 3-6 days

0

11

Honda 15620-815-000

CAP, OIL (NOT AVAILABLE)

Note: Use up to Engine SN 3037735.

$18.99

$

Usually ships in 3-6 days

0

12

Honda 15719-823-000

GASKET, TAPPET COVER (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 16211-823-303

INSULATOR, CARBURETOR (NOT AVAILABLE)

$16.99

$

Usually ships in 3-6 days

0

14

Honda 16229-823-000

GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 19612-873-630

BRACKET, SIDE COVER

$

$

Not available

16

Honda 31181-829-010

STAY, ALTERNATOR (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 90062-822-701

BOLT, STUD (8X39) (NOT AVAILABLE)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90402-822-000

WASHER, HEAD (8MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90701-200-000

PIN, KNOCK (8.5X11) (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 90705-259-020

PIN, KNOCK (7X12) (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

In Stock, only 1 left!

0

23

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

25

Honda 92000-06063-0A

BOLT, HEX. (6X63)

$

$

Currently unavailable

26

Honda 92101-06090-0A

BOLT, HEX. (6X90)

$

$

Not available

27

Honda 92101-08016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X16)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 92000-08100-0A

BOLT, HEX. (8X100)

$

$

Currently unavailable

29

Honda 92022-08080-0A

BOLT, HEX. (8X80) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

30

Honda 92900-06020-0B

BOLT 2, STUD (6X20)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

32

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

34

Honda 95125-08045

BOLT, HEX. (8X45)

$

$

Currently unavailable

35

Honda 95701-06032-08

BOLT, FLANGE (6X32)

Note: Use from Engine SN 3037736.

$2.49

$

In Stock, only 4 left!

0

36

Honda 98076-56710

SEE PART DETAILS - SUP; SPARK PLUG (B6HS) (NGK)

$

$

Not available

36

Honda 98076-56740

SEE PART DETAILS - PRI; SPARK PLUG (B6HS) (NGK)

$3.49

$

Usually ships in 3-6 days

0
