E2500 K2 A (E2500) - Honda Generator, Made in Japan (SN: E2500-1100006 - E2500-9999999) FAN COVER SIDE COVER Parts Diagram

Generator, Made in Japan

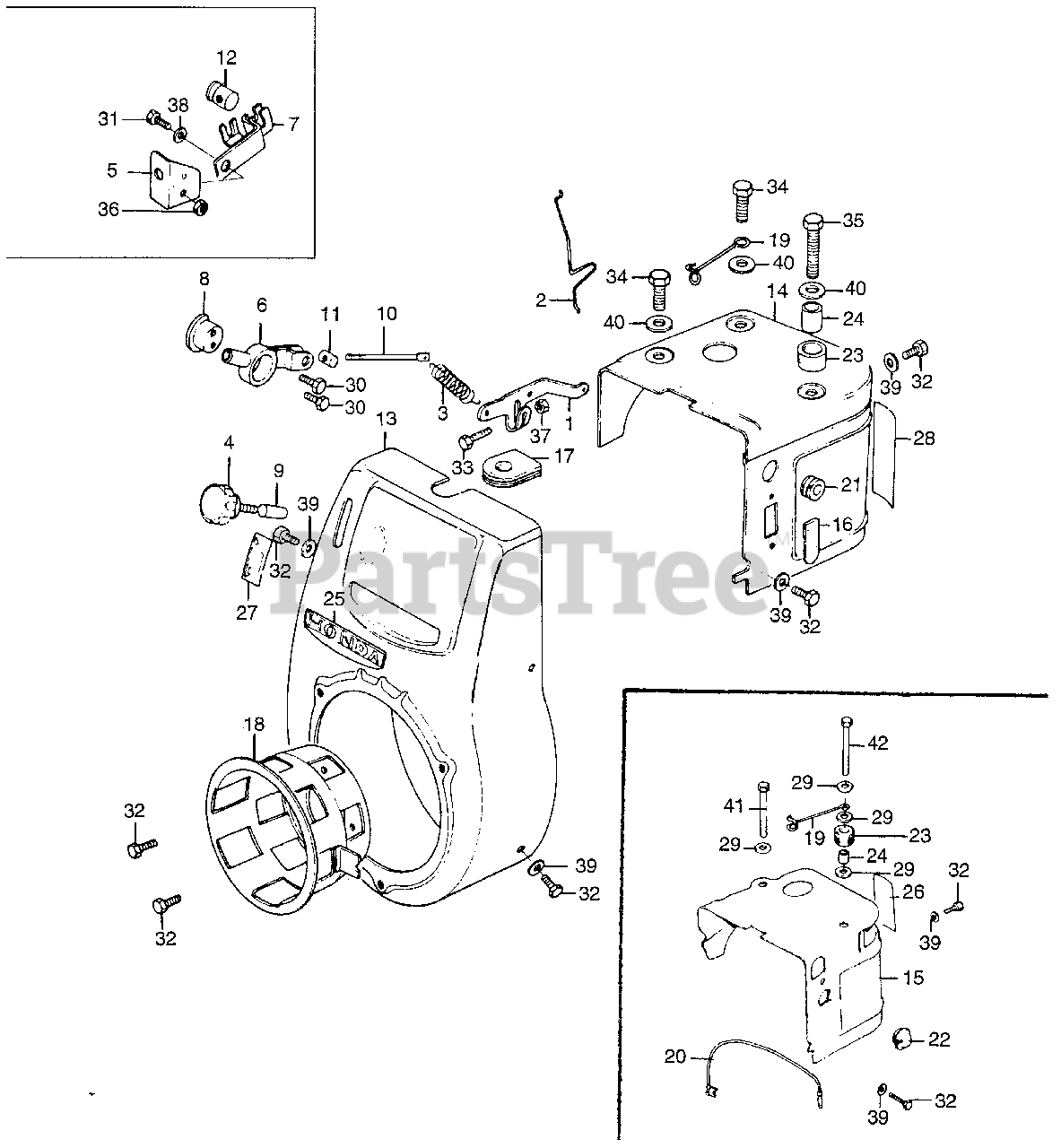

FAN COVER SIDE COVER Parts Diagram

  • Title

1

Honda 16541-809-030

ARM, GOVERNOR (NOT AVAILABLE)

$

$

Not available

2

Honda 16545-823-000

ROD, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16551-806-000

SPRING, GOVERNOR

$

$

Not available

4

Honda 16561-865-000

SCREW, GOVERNOR ADJUST (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16571-823-000

LEVER, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16572-823-000

SHAFT, CONTROL

$

$

Not available

9

Honda 16574-823-000

BUSH, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16575-823-000

ROD, ADJUSTING

$

$

Not available

11

Honda 16579-823-000

JOINT, ADJUSTING ROD (NOT AVAILABLE)

$

$

Not available

13

Honda 19600-823-050H

COVER, FAN *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 19611-823-020H

COVER, SIDE *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 19901-807-000

DEFENDER, SIDE COVER

$

$

Not available

17

Honda 19905-ZA8-701

SEE PART DETAILS - PRI; GROMMET, WIRE

$5.49

$

Usually ships in 3-6 days

0

17

Honda 19905-865-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

18

Honda 28430-823-020

PULLEY, STARTER

$

$

Not available

19

Honda 30564-865-630

CLAMP, IGNITION WIRE (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 36151-805-641

GROMMET A, SIDE COVER (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 50318-839-000

RUBBER, STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 50319-839-000

COLLAR, DISTANCE

$4.49

$

Usually ships in 3-6 days

0

25

Honda 87101-865-000

EMBLEM (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 87531-823-660

PLATE, THROTTLE (ENGLISH/FRENCH)

$

$

Not available

28

Honda 87542-844-660

MARK, OIL CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

34

Honda 92101-08016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X16)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 92101-08032-0B

BOLT, HEX. (8X32)

$3.49

$

Usually ships in 3-6 days

0

37

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

37

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

39

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

40

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0
