E2500 K2 A (E2500) - Honda Generator, Made in Japan (SN: E2500-1100006 - E2500-9999999) ALTERNATOR K2 Parts Diagram

Generator, Made in Japan

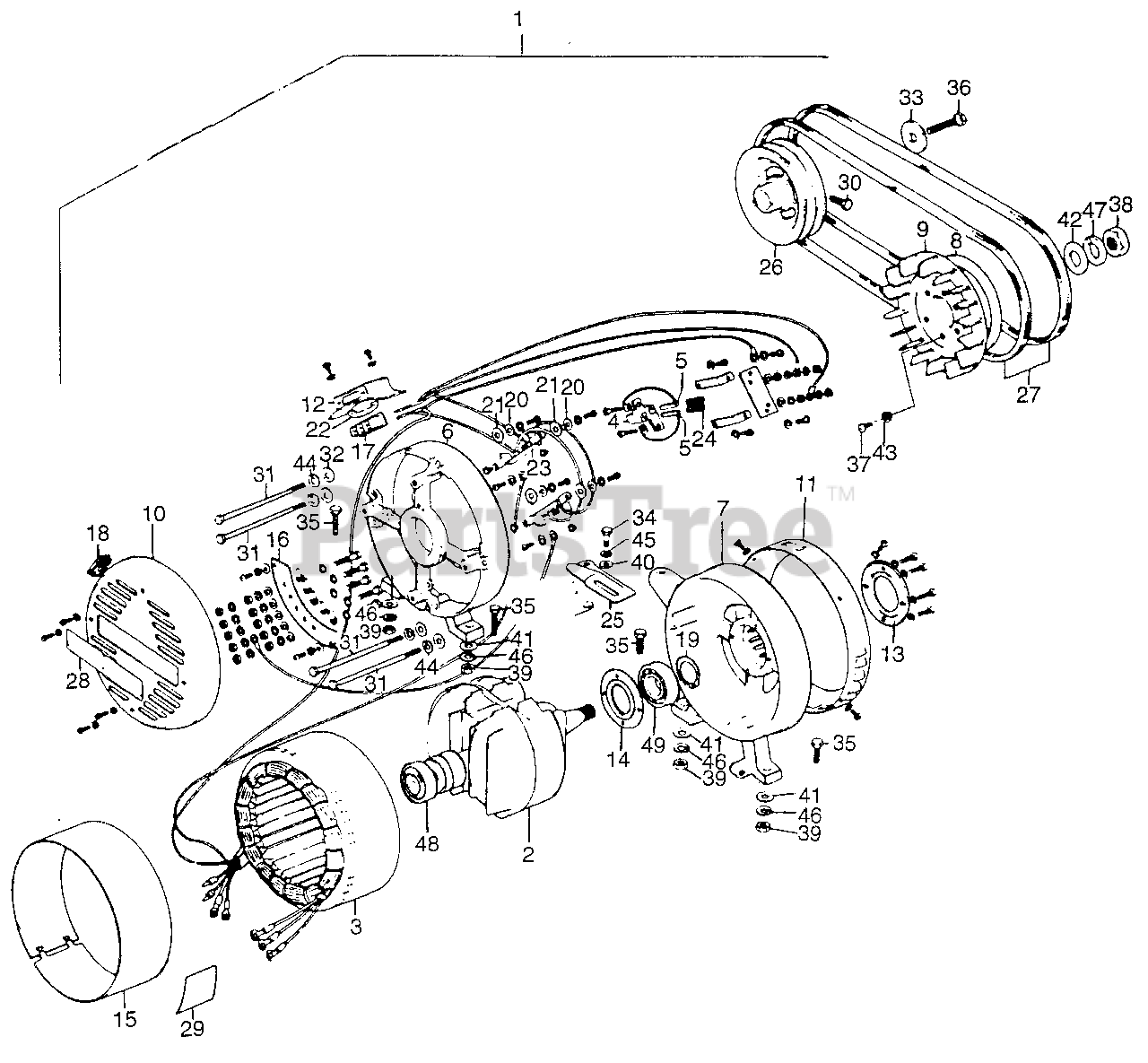

ALTERNATOR K2 Parts Diagram

  • Title

1

Honda 31100-840-673

ALTERNATOR ASSY.

$

$

Not available

2

Honda 31104-840-158

ROTOR ASSY.

$

$

Not available

3

Honda 31105-840-671

STATOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31106-815-169

HOLDER, BRUSH

$

$

Not available

5

Honda 31107-815-168

BRUSH, CARBON

$

$

Not available

6

Honda 31108-829-168

COVER, END

$

$

Not available

7

Honda 31109-829-168

COVER, FR.

$

$

Not available

8

Honda 31111-815-178

PULLEY (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 31112-839-158

FAN

$

$

Not available

10

Honda 31113-877-158H

COVER, GENERATOR *R8* (BRIGHT RED)

$

$

Currently unavailable

11

Honda 31114-829-158XC

COVER, FAN *NH31* (MCKINLEY WHITE)

$

$

Not available

12

Honda 31115-829-158

COVER, CONNECTOR

$

$

Not available

13

Honda 31116-815-168

COVER A, BEARING (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 31117-815-168

COVER B, BEARING (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 31127-829-158XC

COVER, STATOR *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 31128-829-159

TERMINAL ASSY.

$

$

Not available

17

Honda 31130-840-168

CONNECTOR (6P)

$

$

Not available

18

Honda 31131-829-158

BUSH, RUBBER

$

$

Not available

19

Honda 31132-815-158

CIRCLIP (INNER)

$

$

Not available

20

Honda 31133-815-158

BUSH, INSULATING

$

$

Not available

21

Honda 31134-815-158

WASHER, INSULATING

$

$

Not available

22

Honda 31134-829-158

PLATE, COVER

$

$

Not available

23

Honda 31705-876-003

DIODE, D.C.

$

$

Currently unavailable

24

Honda 31136-815-168

SPRING, BRUSH HOLDER (NA USE ALT:31106-815-169)

$

$

Currently unavailable

25

Honda 31181-829-010

STAY, ALTERNATOR (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 49114-815-613

V-PULLEY (60HZ) (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 49212-815-611

SEE PART DETAILS - PRI; V-BELT (A-31) (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 87525-839-681

PLATE, CAUTION

$

$

Not available

29

Honda 87526-840-670

PLATE SPEC

$

$

Not available

30

Honda 90029-805-810

BOLT B, KEY LOCK (7MM) (NOT AVAILABLE)

$

$

Currently unavailable

31

Honda 90101-829-158

BOLT, HEX. (6X145)

$

$

Not available

32

Honda 90502-815-158

WASHER, FLAT (6MM) (NOT AVAILABLE)

$

$

Currently unavailable

33

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

34

Honda 92101-08010-0A

BOLT, HEX. (8X10)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 92101-10032-0A

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

36

Honda 92025-08025-0A

BOLT, HEX. (8X25) (NOT AVAILABLE)

$

$

Currently unavailable

37

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

38

Honda 94001-18000

NUT, HEX. (18MM)

$

$

Currently unavailable

38

Honda 94001-18000-0S

NUT, HEX. (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

39

Honda 94030-10000

NUT, HEX. (10MM)

$1.99

$

Usually ships in 3-6 days

0

40

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

41

Honda 94101-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

42

Honda 94101-18000

WASHER, FLAT (18MM)

$1.49

$

Usually ships in 3-6 days

0

43

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

45

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

46

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0

47

Honda 94111-18000

WASHER, SPRING (18MM) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

48

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0

49

Honda 96150-62050-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205UU)

$44.99

$

Usually ships in 3-6 days

0
