E2-09K401 (210-4) - Toro Garden Tractor (1988) MUFFLER AND EXHAUST Parts Diagram

Garden Tractor

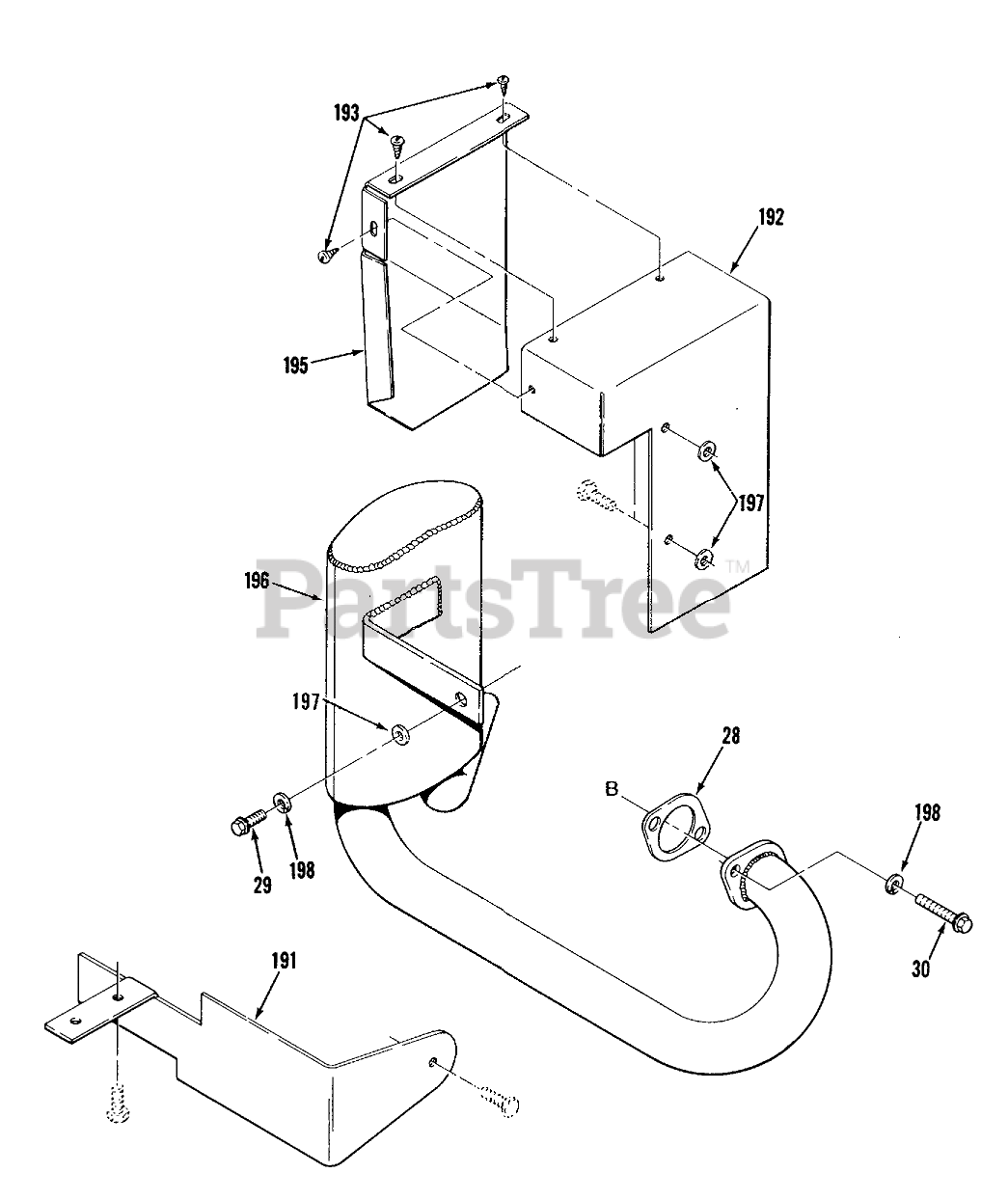

MUFFLER AND EXHAUST Parts Diagram

  • Title
28

Toro KW10251

GASKET-EXH FC-290V

$

$

Not available

Toro KW10011

GASKET

$

$

Not available

29

Toro 130G0812

Bolt-Flanged (8X12)

$

$

Currently unavailable

30

Toro 130G0845

Bolt-Flanged (8X45)

$

$

Currently unavailable

191

Toro 112523

DEFLECTOR-FRONT B

$

$

Not available

192

Toro 113436

SHIELD-HEAT B

$

$

Not available

193

Toro 913406

SCRW-HX S.T.#8 X 3/8

$

$

Not available

195

Toro 113437

SHIELD-HEAT

$

$

Not available

196

Toro 113009

Muffler-Black

$

$

Not available

Toro 113883

MUFFLER-9HP KAW 2800

$689.99

$

Usually ships in 3-6 days

0

197

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

198

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0
