E2-09K401 (210-4) - Toro Garden Tractor (1988) CARBURETOR FC290V-X FC290V-AS04 Parts Diagram

Garden Tractor

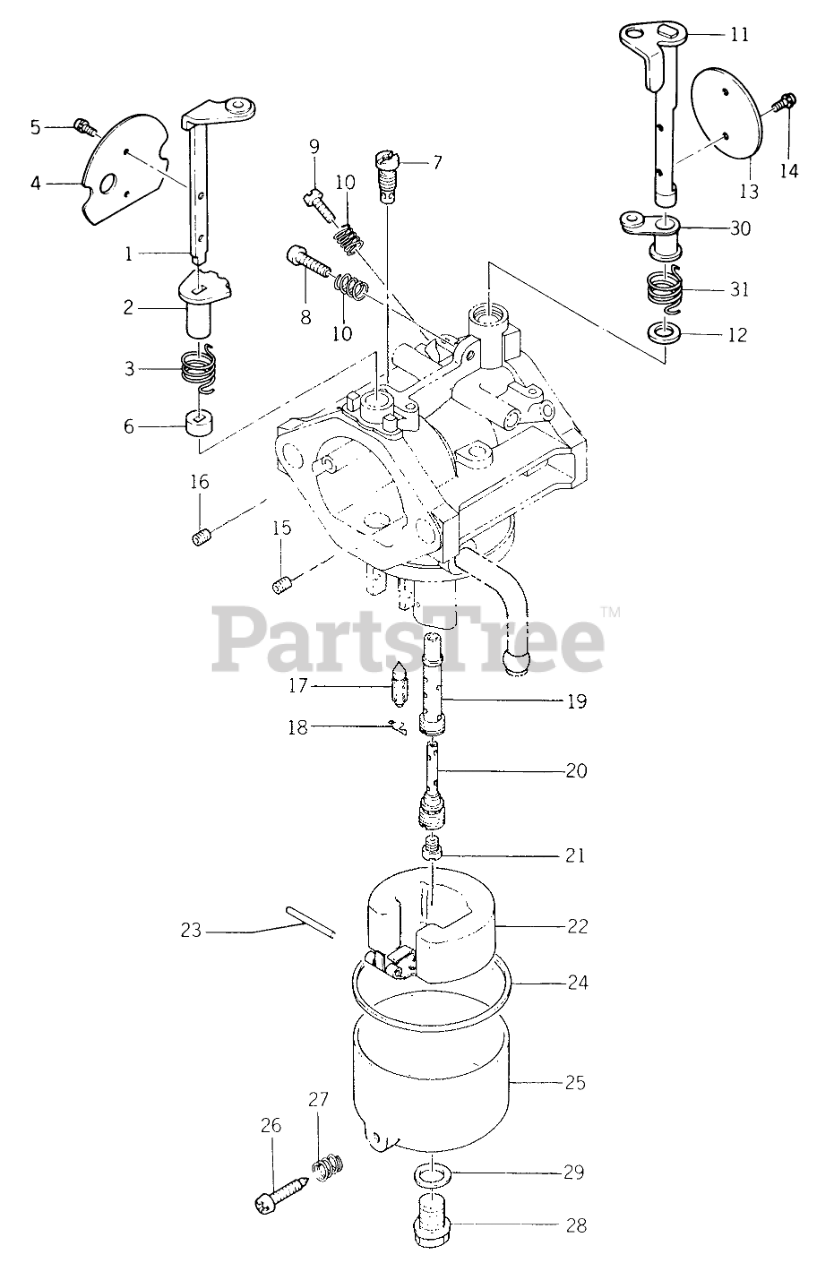

CARBURETOR FC290V-X FC290V-AS04 Parts Diagram

  • Title

Toro 15001-2634

CARBURETOR ASSY

$

$

Currently unavailable

1

Toro 16041-2129

SHAFT, choke

$

$

Currently unavailable

2

Toro 92027-2087

COLLAR

$

$

Currently unavailable

3

Kawasaki 92081-2303

SPRING

$10.99

$

Usually ships in 2-5 days

0

4

Kawasaki 161262112

VALVE, choke

$4.49

$

Usually ships in 2-5 days

0

5

Toro 314572-6137A

Screw

$

$

Currently unavailable

6

Kawasaki 314598-6138A

Ring
(Superseded to 92027-2003)

$3.99

$

Usually ships in 2-5 days

0

7

Kawasaki 317290-6112-00

JET, pilot (No.50)
(Superseded to 92064-2012)

$

$

Not available

8

Toro 214B0412A

SCREW (4x12)

$

$

Currently unavailable

9

Kawasaki 16014-2057

SCREW, adjuster

$4.49

$

Usually ships in 2-5 days

0

10

Toro 313122-6116-00

Spring

$

$

Currently unavailable

11

160412130

SHAFT, throttle

$

$

Not available

12

Kawasaki 316626-6206A

Seal
(Superseded to 92093-2002)

$1.99

$

In Stock, Qty 5

0

13

Kawasaki 160252090

VALVE, throttle (No.110)

$

$

Not available

14

Toro 316550-6137A

Screw

$

$

Currently unavailable

15

Kawasaki 16035-2060

Jet-Air, #1.7

$9.49

$

Usually ships in 2-5 days

0

16

Kawasaki 315825-6113A

JET, pilot air (No.1.1)
(Superseded to 16035-2058)

$9.49

$

Usually ships in 2-5 days

0

17

Kawasaki 16030-2067

Valve-Float
(Superseded to 16030-2068)

$23.99

$

In Stock, Qty 8

0

18

Toro 314595-6134A

Clip

$

$

Currently unavailable

19

491212086

NOZZLE, main (No.12C)

$

$

Not available

20

491232053

PIPE, bleed

$

$

Not available

21

920632114

JET, main (=97.5)

$

$

Not available

22

3158016126A

FLOAT

$

$

Not available

23

Kawasaki 3144996127A

PIN, float

$

$

Currently unavailable

24

Kawasaki 313650612800

GASKET

$

$

Currently unavailable

25

Toro 16020-2051

Float Chamber Assy (includes items 18 & 19).

$

$

Currently unavailable

26

Kawasaki 315470-6133A

Screw
(Superseded to 92009-2015)

$5.49

$

Usually ships in 2-5 days

0

27

313122611600

SPRING

$

$

Not available

28

Kawasaki 3144866143A

BOLT

$

$

Currently unavailable

29

318190615900

WASHER

$

$

Not available

30

Kawasaki 920272025

COLLAR

$3.99

$

Usually ships in 2-5 days

0

31

Kawasaki 921442002

SPRING

$

$

Not available
