E1500 K4 A (E1500) - Honda Generator, Made in Japan (SN: E1500-3000008 - E1500-9999999) ROTOR + ALTERNATOR PULLEY + FAN COVER Parts Diagram

Generator, Made in Japan

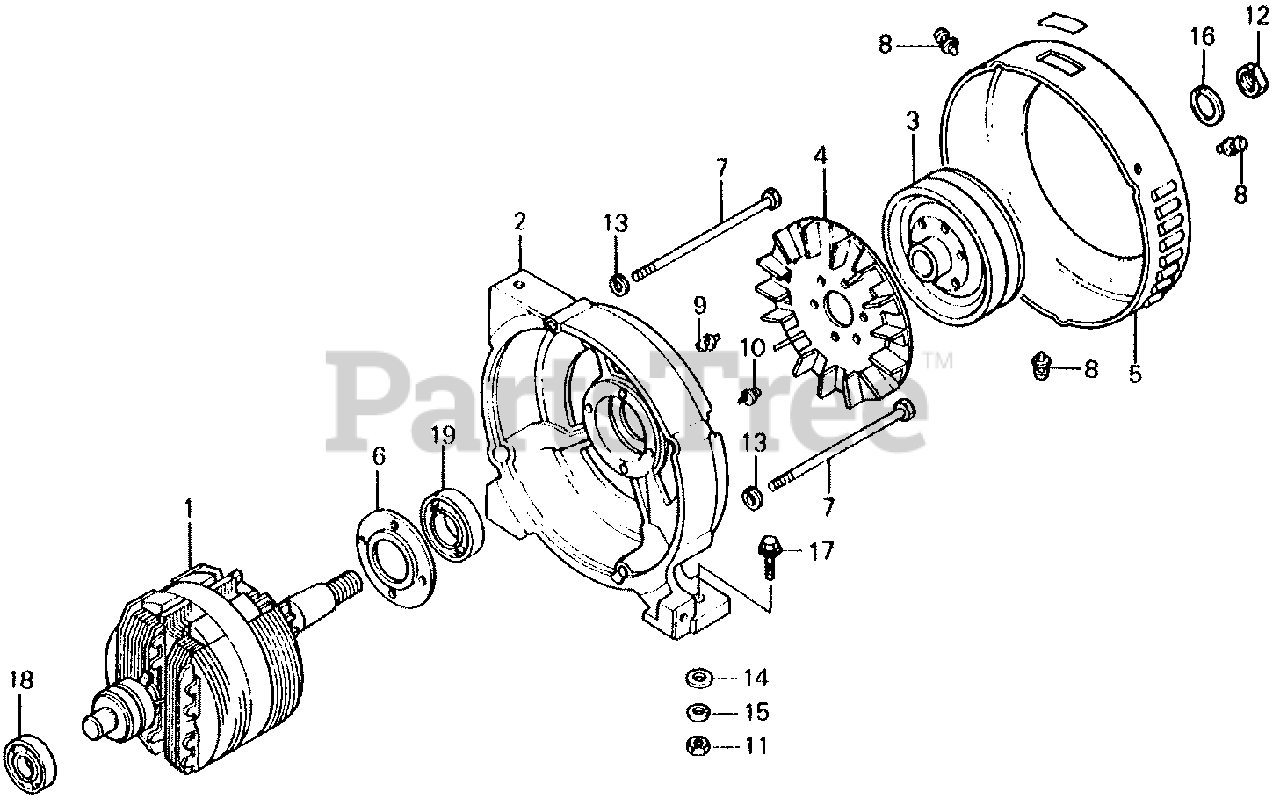

ROTOR + ALTERNATOR PULLEY + FAN COVER Parts Diagram

  • Title

1

Honda 31104-876-003

ROTOR

$

$

Not available

2

Honda 31109-876-003XC

HOUSING, FR. *NH31* (MCKINLEY WHITE)

$

$

Not available

3

Honda 31111-876-690

PULLEY, GENERATOR (104MM)

$

$

Not available

4

Honda 31112-839-158

FAN

$

$

Not available

5

Honda 31114-815-168XC

COVER, FAN *NH31* (MCKINLEY WHITE)

$

$

Not available

6

Honda 31117-839-168

COVER B, BEARING

$

$

Not available

7

Honda 92020-06118-0H

BOLT, HEX. (6X118)

Note: Use up to Frame SN 3071652.

$

$

Not available

7

Honda 92020-06120-0H

BOLT, HEX. (6X120)

Note: Use from Frame SN 3071653.

$2.99

$

Usually ships in 3-6 days

0

8

Honda 93892-04006-08

SCREW-WASHER (4X6)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 93893-04025-08

SCREW-WASHER (4X25) (NOT AVAILABLE)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 93892-05010-08

SCREW-WASHER (5X10)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 6

0

12

Honda 94001-18080-0S

NUT, HEX. (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94111-18000

WASHER, SPRING (18MM) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

17

Honda 95801-08028-08

BOLT, FLANGE (8X28)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0

19

Honda 96150-62050-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205UU)

$44.99

$

Usually ships in 3-6 days

0
