E1500 K4 A (E1500) - Honda Generator, Made in Japan (SN: E1500-3000008 - E1500-9999999) FAN COVER + SIDE PLATE Parts Diagram

Generator, Made in Japan

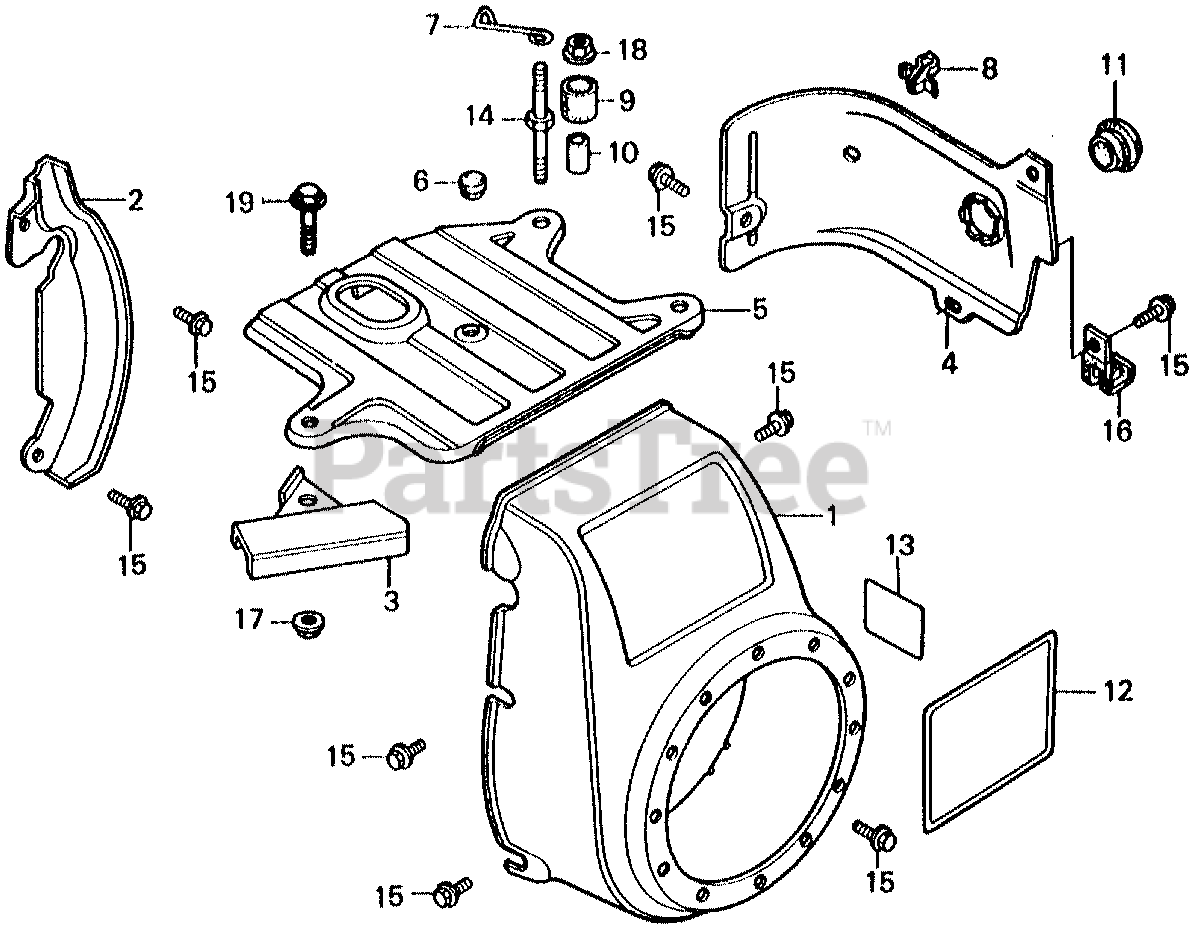

FAN COVER + SIDE PLATE Parts Diagram

  • Title

1

Honda 19610-883-R90ZB

SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

1

Honda 19610-883-020ZB

SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 19611-883-000

PLATE, SIDE

$16.99

$

Usually ships in 3-6 days

0

3

Honda 19625-883-630

GUIDE, AIR

$

$

Not available

4

Honda 19631-883-010

SHROUD

$30.99

$

Usually ships in 3-6 days

0

5

Honda 19641-883-010

SEE PART DETAILS - SUP; COVER, TOP
(Superseded to 19641-883-020)

$33.99

$

Usually ships in 3-6 days

0

6

Honda 19643-883-010

GROMMET, TOP COVER

$2.99

$

Usually ships in 3-6 days

0

7

Honda 30564-883-630

CLAMP, IGNITION WIRE

$

$

Not available

8

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

9

Honda 50318-839-000

RUBBER, STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 50319-839-000

COLLAR, DISTANCE

$3.99

$

Usually ships in 3-6 days

0

11

Honda 81329-567-020

GROMMET, DRAIN HOLE

$5.49

$

Usually ships in 3-6 days

0

12

Honda 87101-883-630

EMBLEM (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 87594-883-000

MARK, OIL CAUTION

Note: Use from Engine SN 1196012 to 1556062.

$

$

Not available

13

Honda 87594-889-600

MARK, OIL CAUTION

Note: Use from Engine SN 1556063.

$

$

Not available

14

Honda 90001-883-631

BOLT, SPECIAL (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

16

Honda 91405-671-000

CLIP, CABLE

$12.99

$

Usually ships in 3-6 days

0

17

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

18

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

19

Honda 95700-06028-00

BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0
