E1500 K4 A (E1500) - Honda Generator, Made in Japan (SN: E1500-3000008 - E1500-9999999) CIRCUIT BREAKER + RECEPTACLE + ENGINE SWITCH Parts Diagram

Generator, Made in Japan

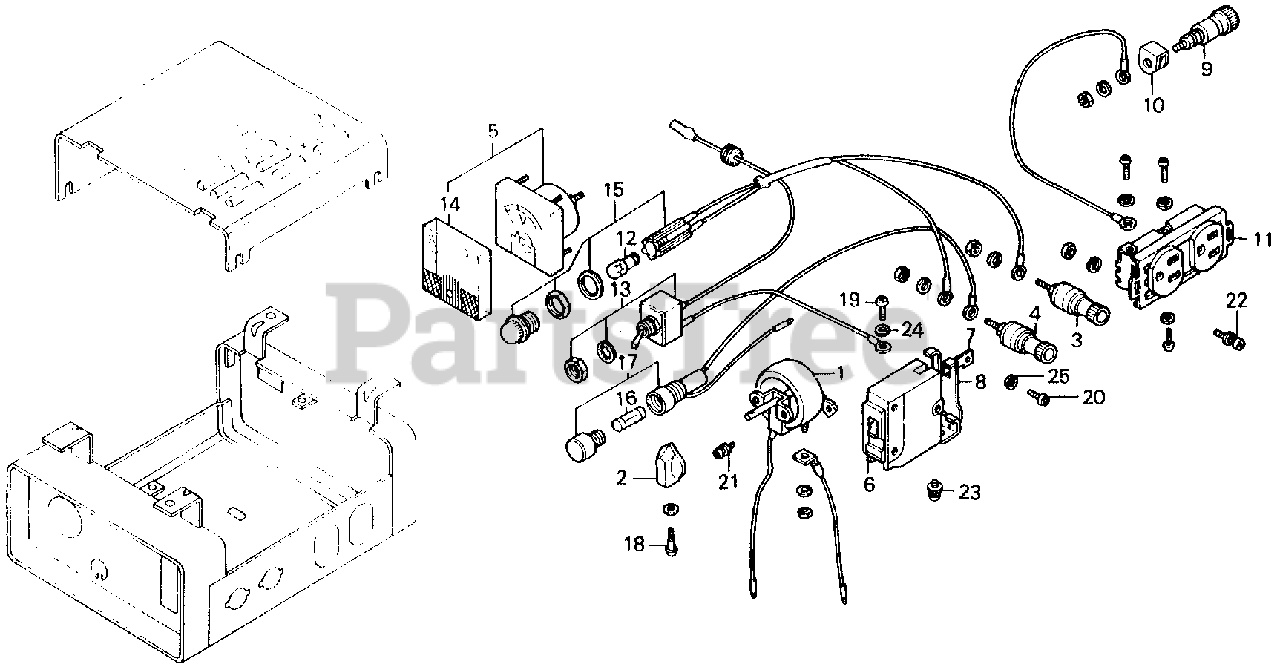

CIRCUIT BREAKER + RECEPTACLE + ENGINE SWITCH Parts Diagram

  • Title

1

Honda 31406-876-003

RESISTOR, VARIABLE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 31407-815-158

KNOB, ADJUSTING

$

$

Not available

3

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$48.99

$

Usually ships in 3-6 days

0

4

Honda 31409-815-168

SEE PART DETAILS - SUP; TERMINAL ASSY. B

Note: Use up to Frame SN 3045429.

$48.99

$

Usually ships in 3-6 days

0

4

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$48.99

$

Usually ships in 3-6 days

0

5

Honda 31411-840-158

SEE PART DETAILS - SUP; VOLTMETER ASSY. (150V SCALE)
(Superseded to 37450-898-000)

$254.99

$

Usually ships in 3-6 days

0

6

Honda 31412-839-671

BREAKER, CIRCUIT
(Superseded to 31430-899-630)

Note: Use from Frame SN 3031108.

$

$

Not available

6

Honda 31430-899-920

BREAKER, CIRCUIT (10A)

Note: Use up to Frame SN 3031107.

$

$

Not available

7

Honda 31414-876-158

TERMINAL, BREAKER

Note: Use up to Frame SN 3045429.

$

$

Not available

7

Honda 31414-880-000

TERMINAL, BREAKER

Note: Use from Frame SN 3045430.

$20.99

$

Usually ships in 3-6 days

0

8

Honda 31415-815-168

SUPPORT, BREAKER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 31428-815-158

SEE PART DETAILS - SUP; TERMINAL ASSY., GROUND

Note: Use up to Frame SN 3045429.

$

$

Currently unavailable

9

Honda 31428-880-000

SEE PART DETAILS - PRI; TERMINAL ASSY., GROUND (NOT AVAILABLE)

Note: Use from Frame SN 3045430.

$

$

Currently unavailable

10

Honda 31429-893-003

PLATE, GROUND

$

$

Not available

11

Honda 32330-839-158

SEE PART DETAILS - SUP; RECEPTACLE (15A 125V)

Note: Use up to Frame SN 3062667.

$

$

Currently unavailable

11

Honda 32333-880-680

SEE PART DETAILS - PRI; RECEPTACLE (15A-125V)

$84.99

$

Usually ships in 3-6 days

0

12

Honda 34909-880-000

BULB (24V2W)

$9.49

$

Usually ships in 3-6 days

0

13

Honda 36100-876-158

SWITCH ASSY., ENGINE (NOT AVAILABLE)

$

$

Not available

14

Honda 37451-898-000

LENS, METER

$

$

Not available

15

Honda 37561-868-158

SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 38201-868-158

SEE PART DETAILS - SUP; FUSE (15A)
(Superseded to 38201-880-000)

Note: Use up to Frame SN 3071652.

$4.49

$

Usually ships in 3-6 days

0

16

Honda 38201-880-000

SEE PART DETAILS - PRI; FUSE (15A)

Note: Use from Frame SN 3071653.

$4.49

$

Usually ships in 3-6 days

0

17

Honda 38211-868-158

HOLDER ASSY., FUSE

$

$

Currently unavailable

18

Honda 90191-815-168

BOLT, KNOB (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93500-05010-3J

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93892-03006-08

SCREW-WASHER (3X6)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93892-04012-08

SCREW-WASHER (4X12)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 93893-05008-08

SCREW-WASHER (5X8)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
