E1500 K2 A (E1500) - Honda Generator, Made in Japan (SN: E1500-1200001 - E1500-1221282) FRAME K1-K3 Parts Diagram

Generator, Made in Japan

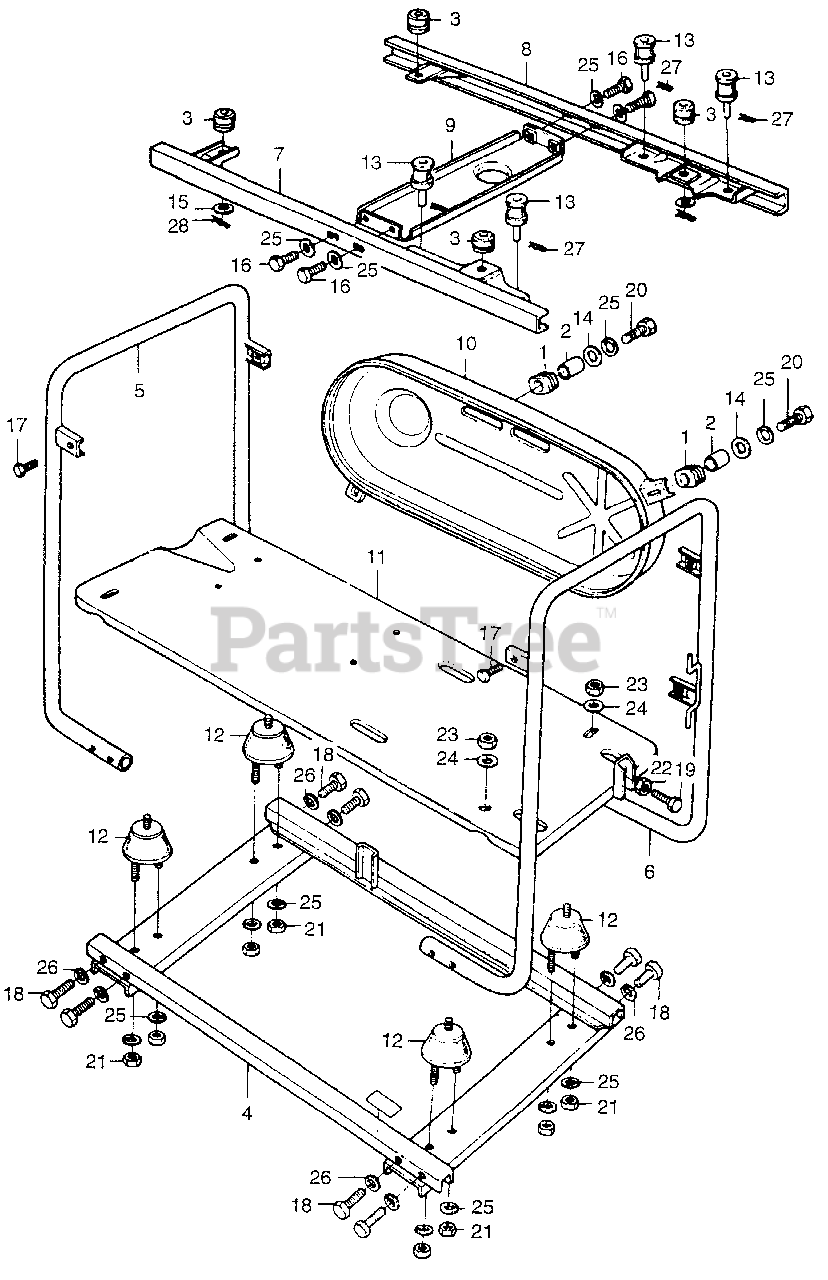

FRAME K1-K3 Parts Diagram

  • Title

1

Honda 17631-700-000

RUBBER, TANK CUSHION

$

$

Not available

2

Honda 17642-700-000

COLLAR B, TANK DISTANCE

$

$

Not available

3

Honda 17682-817-020

RUBBER, TANK CUSHION

$

$

Not available

4

Honda 50311-839-010

BED, FRAME

$

$

Not available

5

Honda 50312-839-010

FRAME, L. SIDE

$

$

Not available

6

Honda 50314-839-020

FRAME, R.

$

$

Not available

7

Honda 50315-839-020

FRAME, FR. (UPPER)

$

$

Not available

8

Honda 50316-839-020

FRAME, RR. (UPPER)

$

$

Not available

9

Honda 50317-839-010

STOPPER, ENGINE

$

$

Not available

10

Honda 63610-839-010H

COVER, BELT *R8* (BRIGHT RED)

$

$

Not available

11

Honda 68300-815-040

BED, ENGINE

$

$

Not available

12

Honda 68325-893-000

RUBBER, ENGINE SETTING

$

$

Not available

13

Honda 68330-815-020

RUBBER, TANK CUSHION (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

16

Honda 92101-06012

BOLT, HEX. (6X12)
(Superseded to 92101-06012-0A)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 92101-06012-0A

BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 92101-08010-0A

BOLT, HEX. (8X10)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 92101-08020-0A

BOLT, HEX. (8X20)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 92032-08040-0A

BOLT, HEX. (8X40)

$

$

Currently unavailable

20

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93404-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

$2.49

$

In Stock, only 2 left!

0

20

Honda 93414-06020-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X20)
(Superseded to 93404-06020-08)

$2.49

$

In Stock, only 2 left!

0

20

Honda 93494-06020-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X20)

$

$

Not available

21

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

21

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

22

Honda 94031-08000

NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94030-08000

NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

25

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

26

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94251-05000

PIN, LOCK (5MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0
