E1500 K2 A (E1500) - Honda Generator, Made in Japan (SN: E1500-1200001 - E1500-1221282) CYLINDER K1-K3 Parts Diagram

Generator, Made in Japan

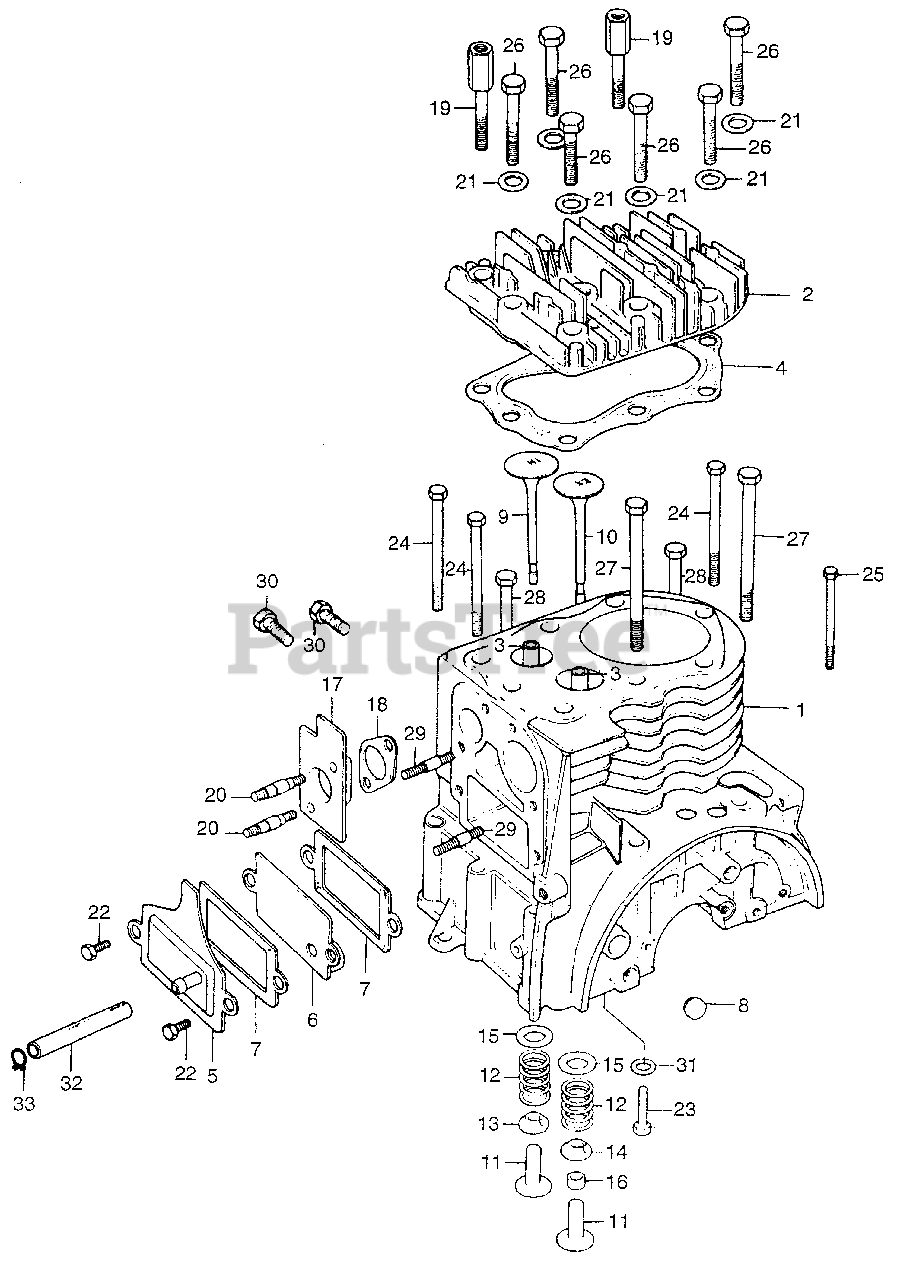

CYLINDER K1-K3 Parts Diagram

  • Title

1

Honda 12100-865-030

CYLINDER

Note: Use from Engine SN 1007001.

$

$

Not available

2

Honda 12201-822-000

CYLINDER HEAD (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 12251-843-000

GASKET, CYLINDER HEAD (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 12361-865-010

COVER, TAPPET

$

$

Not available

6

Honda 12370-843-000

SEPARATOR, OIL

$

$

Not available

7

Honda 12372-822-306

GASKET, BREATHER CASE

$

$

Not available

8

Honda 14214-822-000

PLUG, CAMSHAFT SEALING (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 14711-822-010

VALVE, IN. (NOT AVAILABLE)

$

$

Not available

10

Honda 14721-822-020

VALVE, EX. (NOT AVAILABLE)

$61.99

$

Usually ships in 3-6 days

0

11

Honda 14731-822-000

LIFTER, VALVE

$

$

Not available

12

Honda 14751-822-000

SPRING, VALVE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 14771-883-305

RETAINER, VALVE SPRING

$14.99

$

Usually ships in 3-6 days

0

14

Honda 14771-822-020

RETAINER, VALVE SPRING (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 14775-809-000

SEAT, SPRING (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 14775-822-010

SEAT, VALVE SPRING

$

$

Currently unavailable

16

Honda 14777-822-405

ADJUSTER, TAPPET CLEARANCE (5.2/5.3) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 14777-822-415

ADJUSTER, TAPPET CLEARANCE (5.5/5.6) (NOT AVAILABLE)

$

$

Not available

16

Honda 14777-822-425

ADJUSTER, TAPPET CLEARANCE (5.9/6.0) (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 16211-865-781

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 16229-822-010

GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 90062-822-701

BOLT, STUD (8X39)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90062-822-701

BOLT, STUD (8X39)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90402-822-000

WASHER, HEAD (8MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 92101-06016-0A

BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

23

Honda 92101-06032-0A

BOLT, HEX. (6X32)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 92000-06071

BOLT, HEX. (6X71) (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 95125-08036

BOLT, HEX. (8X36)

Note: Use from Engine SN 1007001.

$

$

Currently unavailable

27

Honda 92000-08070-0A

BOLT, HEX. (8X70)

$

$

Currently unavailable

27

Honda 92200-08070-0A

BOLT, HEX. (8X70) (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 92000-08100-0A

BOLT, HEX. (8X100)

$

$

Currently unavailable

29

Honda 92900-06018-0B

BOLT, STUD (6X18)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 93700-06032-0B

SCREW, OVAL (6X32)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

32

Honda 95001-80001-60M

BULK HOSE, FUEL (8X1000) (8X85)

$35.99

$

Usually ships in 3-6 days

0

33

Honda 95002-02130

CLIP, TUBE (B12.5)

$1.49

$

In Stock, Qty 5

0
